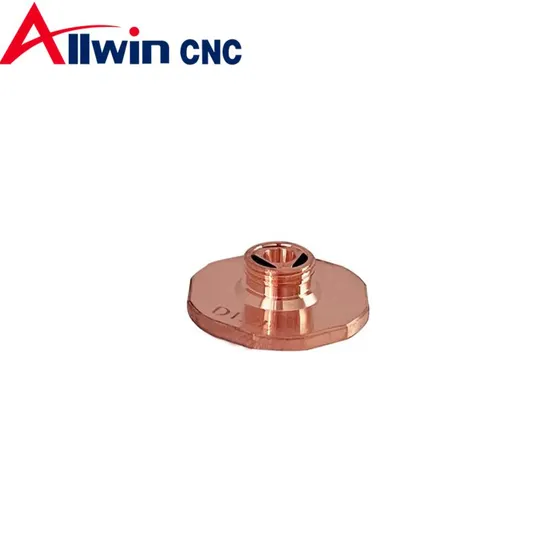

High Speed Copper Fiber Laser Nozzle for Laser Cutting Machines Head Replacement

Product Description

Product Description
What is laser nozzle?
A laser nozzle, also known as a laser beam delivery nozzle or laser beam focusing nozzle, is a key component in laser cutting and laser welding systems. It serves as an essential interface between the laser source and the material being processed, allowing for the precise and controlled delivery of the laser beam.
The laser nozzle plays a crucial role in shaping and focusing the laser beam onto the workpiece. It is designed to control the beam diameter, focal point, and beam quality, which are essential parameters in laser material processing. The nozzle typically consists of a housing, an entrance aperture, and an exit aperture.
The laser beam enters the nozzle through the entrance aperture, which is precisely machined to match the beam diameter and shape. Inside the nozzle, the beam can undergo various transformations, such as beam expansion, collimation, or focusing, depending on the specific application requirements. This is achieved by using lenses, mirrors, or other optical elements within the nozzle.
The exit aperture of the nozzle determines the final beam diameter and focal point, which directly influence the cutting or welding performance. By adjusting the nozzle design and parameters, such as the nozzle diameter, focal length, and standoff distance, operators can optimize the beam profile and focal spot size for different material thicknesses and cutting speeds.
In addition to beam control, laser nozzles also serve important functions in laser cutting, such as assisting in the removal of molten material and providing assist gas to enhance the cutting process. Assist gas, such as oxygen or nitrogen, is typically delivered through channels within the nozzle to blow away debris and assist in the material removal process.
Overall, the laser nozzle is a critical component in laser material processing systems, enabling precise beam control, improved cutting/welding performance, and efficient material removal. Its design and optimization significantly impact the quality, speed, and accuracy of laser processing operations.
Laser wire feeding nozzle:
Facilitates the precise feeding of wire during laser welding, ensuring accurate deposition of filler material.

Laser flat angle welding nozzle:
Enables the laser beam to be delivered at a flat angle, suitable for welding flat surfaces or performing horizontal welds.

Laser outer angle welding nozzle:
Designed for welding outer angles or corners, allowing the laser beam to reach and weld the outer edges of a workpiece effectively.

Laser inner angle welding nozzle:
Specifically designed for welding inner angles or corners, ensuring easy access to tight spaces and effective welding in confined areas.

Laser Cutting Nozzle
Why choose our laser nozzle?
Firstly, our laser nozzles are made from high-quality materials that are designed to withstand the demands of laser processing. We choose materials that are durable, heat-resistant, and have excellent optical properties to ensure optimal beam delivery and performance.
Secondly, our laser nozzles are carefully engineered to provide precise beam control and focus. We utilize advanced manufacturing techniques and optical design principles to shape and guide the laser beam effectively. This results in improved cutting/welding performance, higher accuracy, and better overall results.
Additionally, our laser nozzles are designed with versatility in mind. We offer a range of nozzle sizes and configurations to accommodate various material types, thicknesses, and laser power levels. Whether you need to cut through thick metals or work with delicate materials, we have a nozzle that suits your specific requirements.
Lastly, our laser nozzles are competitively priced while maintaining high quality. We understand the importance of value for money, and we aim to provide cost-effective solutions without compromising on performance or durability.
In conclusion, choosing our laser nozzles means you are selecting reliable, high-quality products that offer precise beam control, versatility, and excellent customer support. We are committed to assisting you with your laser processing needs and ensuring your satisfaction with our products.
Packaging & Shipping

Some types of handheld laser welding nozzles
1.Straight Nozzle: This type of nozzle has a straight shape and is suitable for straight-line welding tasks. It is commonly used for welding flat surfaces or straight edges. A straight nozzle provides a larger welding coverage area.
2.Elbow Nozzle: An elbow nozzle has a bent shape, typically at a 90-degree angle. It is used for welding in confined spaces or for reaching difficult-to-access areas, such as curved surfaces or inside pipes.
3.Rotational Nozzle: A rotational nozzle is designed to be adjustable and allows for flexible angle changes during welding. It enables operators to change the nozzle angle as needed to meet different welding requirements.
4.Dual-axis Rotational Nozzle: This type of nozzle not only rotates but also offers adjustment along two axes. It provides higher flexibility and is suitable for complex welding tasks, including three-dimensional curved surface welding.
These are common types of handheld laser welding nozzles, each with its specific applications and advantages. The choice of nozzle type depends on the specific welding task and requirements.
Product Parameters
Specifications of laser welding machine nozzles

Type	Outside Diameter	Height	Single/Double Layer	Chrome	Thread	Caliber
D28H15	28	15	Single	No	M11	1.0-4.0
	28	15	Double	No	M11	1.0-4.0
	28	15	Double	Yes	M11	1.0-4.0
	28	15	Double	Yes	M11	1.0-3.0
D32H15	32	15	Single	No	M14	1.0-3.5
	32	15	Double	No	M14	1.0-3.5
	32	15	Double	Yes	M14	1.0-3.5
