6lanes High Speed M Fold Hand Towel Machine with Lamination

Product Description

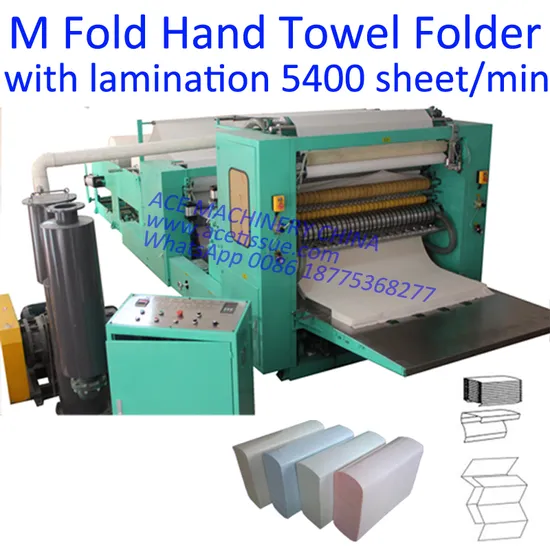

6Lanes High Speed M Fold Hand Towel Machine with Lamination
Application
This ACE-M240-6L-L 6Lanes M Fold Four Fold Paper Towel Interfolder Machine is with steel to steel embossing unit and lamination system. It is good quality high speed tissue converting machine to manufacture M fold interfolded paper towels, four folds paper towels, five folds paper towels, six folds paper towels and nonwoven airlaid tissue, and MG paper napkins etc. It is with the out-of-date latest technology in tissue paper converting. It adopts vacuum folding style. The mainly function of this machine is to manufacture commercial tissue paper products and away-from-home tissue paper products, easy-to-take one by one plain, embossed and LOGO printed and colored and laminated interfolded M W fold paper hand towels. It is an ideal equipment to manufacture high grade away-from-home customized embossed facial tissue paper napkin products.
Advantage:
1 Machine for laminated M fold paper towels
2 With glue lamination unit.
3 high speed up to 1000 sheet/min/lane
4 Energy-saving.
5 Vacuum fold
6 Fold stype: M fold, Four fold, Five fold, Six fold.
Quick details:
1 Cylinder cutoff size: 240mm or customized etc.
2 Lamination system.
3 with 6lanes
4 Interfolded and M fold
5 Can connect to logsaw cutting machine
Technical parameters as below

Model	ACE-M240-6L-L
Output type	lamination and Two Color Printing interfold dispenser napkin machine and point to point M fold hand paper towel machine
Folding speed	up to 1000 piece/min/lane * 6lanes = 6000 sheet/min, depending on the paper quality and napkin size.
Raw paper	13-20g/m2 2-ply, 16-45g/m2 1-ply, wooden pulp paper or MG paper or nonwoven airlaid. Other sizes please specify.
Jumbo roll size	≤ 1200mm x Φ1200mm (Depends on your napkin size, customized)
Napkin size	Open size: 240±2mm x 200mm Other size, please specify. Folded size: 80±2mm x 200mm Fixed cutoff cylinder size is 240m. Other size available, please specify. or Customized.
Folding type	Inter folding Vacuum fold W M fold, Four fold, Five fold, Six fold, 4 folds, 5 folds, 6 folds
Embossing unit	1- Steel to steel. 2- Embossing pattern can be any LOGO, brand name, flowers etc. 3- Embossing pattern can be customized by client or recommended by us 4- Controlled by screws, mechanical pressing type. Cylinder type is optional.
Printing unit	Optional 1- Flexo printing type. 2- Printing colors customized up to 4 colors. 3- Printing Logo is changeable. You just need to change the Printing Rubber only. 4- Anilox printing roll. Ceramic anilox roller. 5- Printing roll is adjustable. 6- Ink printing system to be negotiated. 7- With doctor blades. 8- Closed chamber ink circulating system.
Point to point Lamination system	a. With 2 complete sets of point to point lamination units. b. The whole design is copied Italy design. c. Heavy chrome coating roll d. Micro-adjustment of nips between the steel roll e. Anilox roll for glue applicant. f. Controlled by cylinders g. Each lamination unit controlled by an independent reducer. When the machine stops, the motor will start running to rotate the anilox roll to prevent it getting dry.
Tension control	Speedless Tension control unit to fit the machine for paper of different quaity and different gsm. With automatic web guiding system. With automatic web tension control system.
Counting	Automatic counting unit
Emergent stop	Emergent stop unit to inspect any paper breaks, paper jams.
Paper feeding	Synchronizer for feeding paper
Power	7.5Kw for main motor 18.5KW for vacuum pump (3-phase AC380V 50Hz or customized)
Machine size	6x2x2m
Weight	6T
Videos and photos available.

Photos of Super high speed China 4-fold hand towel folding machine.
