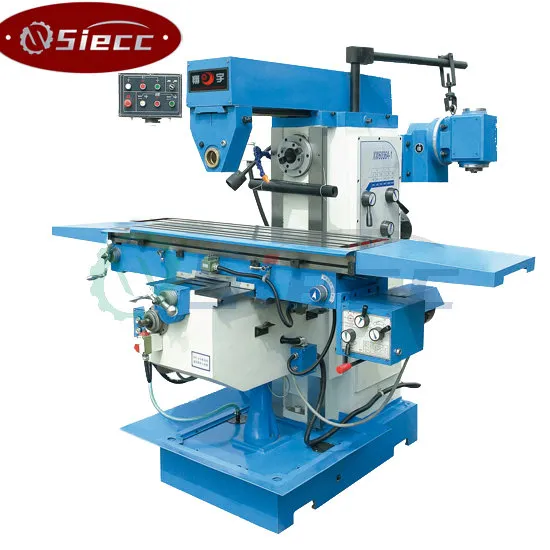

Universal Swivel Head Milling Machine Xq6226b /Radial Milling Machine with Ce
| US$4,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XQ6226B
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Controlling Mode
Program Control
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
Wooden Box Packaged
Specification
XQ6226B
Trademark
SIECC
Origin
Jiangsu/China
Production Capacity
1000 Sets/Year
Product Description
| unit | XQ6226B | XQ6226A | XQ6226-1G | |
| TABLE : | | | | |
| Table size | mm | 1120X260 | 1120X260 | 1120X260 |
| T slot | no | 3 | 3 | 5 |
| Size ( Width ) | mm | 14 | 14 | 14 |
| Centre distance | mm | 63 | 63 | 50 |
| Max. load of Table | kg | 250 | 250 | 250 |
| machining range : | | | | |
| table Longitudinal travel(manual/auto) | mm | 600 | 600 | 600 |
| table Cross travel (manual/auto) | mm | 270 | 270 | 270 |
| table Vertical travel(manual/auto) | mm | 380 | 400 | 400 |
| MAIN SPINDLE : | | | | |
| Spindle taper | | ISO40 | ISO40 | ISO40 |
| spindle speed /step | rpm | 45-1660/11steps | 45-1660/11steps | 45-1660/11steps |
| Max.end milling width | mm | 125 | 125 | 125 |
| Max. vertical milling Dia. | mm | 25 | 25 | 25 |
| swivel angle of swivel head | degree | 360º | 360º | 360º |
| vertical spindle axis to column surface | mm | 60-500 | 60-500 | 60-500 |
| vertical spindle nose to table surface | mm | 100-480 | 100-480 | 100-480 |
| arm travel | mm | 440 | 440 | 440 |
| FEEDS : | | | | |
| Longitudinal/cross feed | mm / min | 24-402/9steps | 24-402/9steps | 24-720/8steps |
| Vertical/step | mm/min | 422/1step | | |
| Longitudinal/cross rapid speed | mm / min | 402 | 402 | 1040(X) |
| Rapid Traverse vertical | mm/min | 422/1step | | |
| POWER : | | | | |
| main motor | kW | 2.2 | 2.2 | 2.2 |
| (X/Y/Z) feed motor | kW | 0.37(X/Y),0.55(Z) | 0.37(X/Y) | 0.37(X) |
| coolant motor | kW | 0.04 | 0.04 | 0.04 |
| others | | | | |
| package dimension | cm | 160X152X222 1pc/case | 160X152X222 1pc/case | 160X152X222 1pc/case |
| | | 220X152X222 2pcs/case | 220X152X222 2pcs/case | 220X152X222 2pcs/case |
| overall dimension | cm | 166x150x173 | 166x150x173 | 166x150x173 |
| N/W,G/W | kg | 1480/1680 | 1400/1600 | 1300/1450 |
