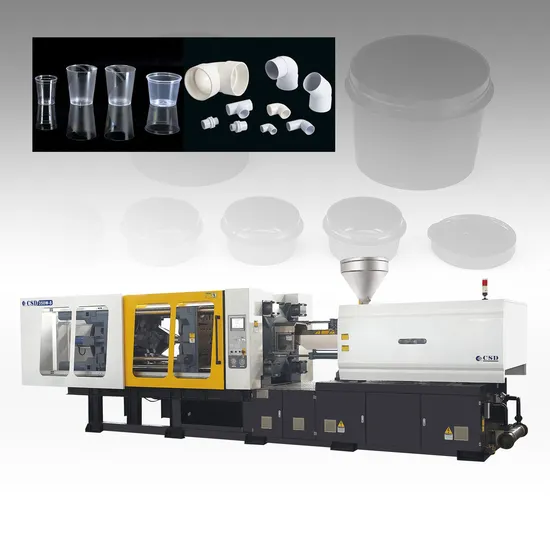

CE Approved Injection Moulding Machine (CSD-130W-S)

Product Description

CSD-W-S Series Injection Molding Machine
Advantages
1. Speed:To be quicker in each movement. To be faster in mould opening and closing. To be higher in injection capacity. To have shorter scanning time on computer controller.
2. Precision: Precise accessories guarantee perfect performance of machine. Closed circular temperature control unit ensures accurate temperature control.
3. Stability: High strength machine base ensures smooth action of whole machine. Stable mechanical action program ensures proper movement. Overall inspection before delivery ensures good quality of machine.
4. Reasonable Control: Simple and safe operation unit. Design matches human body engineering. Offer special program design as per client's requirement, making technical data more reasonable.
5. Efficiency: Lower reject rate. Lower production cost. Low investment gains high return on investment.
Model CSD-130W-S Injection Moulding Machine is suitable for light weight plastic product.

			CSD-100			CSD-130			CSD-180			CSD-200		CSD-240			CSD-280
			A	B	C	A	B	C	A	B	C	A	B	A	B	C	A	B	C
injection part	SCREW DIMETER	mm	35	37	40	37	40	45	40	46	52	42	48	45	51	57	50	56	62
	SCREW L/D RATIO	L/D	20.8	19.7	18.2	22.2	20	18.2	22.3	20	18.1	22	19	22.4	20	18.2	22	20	18.2
	SHOT VOLUME(THEORETICAL)	cm³	150	168	196	206	241	305	283	374	478	298	390	397	510	638	528	662	812
	SHOT WEIGHT	g	137	153	178	188	219	277	258	340	435	270	355	361	465	580	480	602	738
		oz	4.8	5.4	6.3	6.6	7.8	9.8	9.1	12	15.3	9.6	12.5	12.7	16.4	20.1	16.9	21.2	26
	INJECTION PRESSURE	MPa	193	173	148	196	168	145	247	188	146	220	165	229	179	143	223	178	145
	SCREW SPEED	g/s	88	100	115	117	130	150	124	157	194	130	163	170	210	254	233	281	335
	SCREW SPEED	r/min	0~225			0~200			0~225			0~225		0~225			0~225
	PLASTICIZING CAPACITY	g/s	12.1	13	15.2	12.9	15	20.1	13.6	18.6	24.6	14.3	19.4	19	24.1	30.8	24.2	31.3	37.4
clamping part	CLAMPING FORCE	kN	1000			1300			1800			2000		2400			2800
	OPEN STROKE	mm	335			375			450			450		505			570
	SPACE BETWEET TIE BARS(WXH)	mm	380X380			430X430			510X510			505X505		560X560			610X610
	MOULD THICKNESS	mm	150~400			150~450			180~520			180~520		200~550			220~580
	EJECTOR FORCE	kN	33			39.6			39.6			39.6		62			62
	EJECTOR STROKE	mm	100			130			140			140		140			160
	EJECTOR NUMBER	n	5			5			5			5		5			9
others	HEATER POWER	kW	7.1			7.7			9.7			15		15			21.68
	PUMP MOTOR POWER	kW	11			13			18.5			18.5		22			30
	MAX PUMP PRESSURE	MPa	14			14			14			14		14			14
	MACHINE DIMENSION(LxWxH)	mm	4.25X1.2X1.7			4.49X1.19X1.8			5.1X1.5X1.9			5.1X1.5X1.9		5.3X1.5X1.95			5.7X1.7X2.1
	MACHINE WEIGHT	t	3.5			4.5			5.26			5.26		6.7			8.2
	HOPPER CAPACITY	L	25			25			25			25		50			50

			CSD-350			CSD-420				CSD-500				CSD-680
			A	B	C	A	B	C	D	A	B	C	D	A	B	C	D
injection part	SCREW DIMETER	mm	60	65	70	65	70	75	80	70	75	80	90	80	90	100	110
	SCREW L/D RATIO	L/D	22	20	18.2	22.2	20.7	19.6	17.5	22.6	21.4	20	18	24.6	22.1	20	17.8
	SHOT VOLUME(THEORETICAL)	cm³	882	1035	1200	1194	1384	1590	1808	1477	1696	1929	2442	2036	2576	3180	3450
	SHOT WEIGHT	g	802	942	1092	1086	1260	1446	1645	1344	1543	1755	2222	1853	2345	2896	3503
		oz	28.3	33.2	38.5	38.3	45	51	58	47.5	54.5	62	78.3	65	82	102	123
	INJECTION PRESSURE	MPa	219	187	161	208	179	156	137	219	191	168	133	224	177	143	118
	SCREW SPEED	g/s	272	319	370	294	341	392	446	369	424	481	610	428	541	668	808
	SCREW SPEED	r/min	0~200			0~185				0~155				0~130
	PLASTICIZING CAPACITY	g/s	35.7	43	51.2	37.2	44.2	51.9	59	43.2	50.5	58.7	74.2	57	73	90	110
clamping part	CLAMPING FORCE	kN	3500			4200				5000				6800
	OPEN STROKE	mm	660			710				800				860
	SPACE BETWEET TIE BARS(WXH)	mm	680X680			740X740				810X810				895X895
	MOULD THICKNESS	mm	250~680			280~730				320~800				400~900
	EJECTOR FORCE	kN	62			110				110				175
	EJECTOR STROKE	mm	160			200				200				260
	EJECTOR NUMBER	n	13			13				13				17
others	HEATER POWER	kW	23.28			26.4				30.5				50
	PUMP MOTOR POWER	kW	37			37				45				22+37
	MAX PUMP PRESSURE	MPa	14			14				14				14
	MACHINE DIMENSION(LxWxH)	mm	7X1.9X2.2			7.3X2.0X2.2				8.1X2.1X2.3				10X2.5X3.8
	MACHINE WEIGHT	t	13.2			17				19.2				36
	HOPPER CAPACITY	L	50			50				100				200

			CSD-780				CSD-1000				CSD-1250				CSD-1680W
			A	B	C	D	A	B	C	D	A	B	C	D	A	B	C
injection part	SCREW DIMETER	mm	90	100	110	120	100	110	120	130	110	120	130	140	130	140	150
	SCREW L/D RATIO	L/D	24.4	22	20	18.3	24.3	22.1	20	18.7	26.2	24	22.2	20.6	24	22.3	20.8
	SHOT VOLUME(THEORETICAL)	cm³	2830	3495	4228	5032	3819	4620	5500	6455	5545	6600	7745	8980	8270	9590	11000
	SHOT WEIGHT	g	2576	3180	3848	4579	3496	4205	5005	5875	5045	6005	7045	8170	8105	9398	10780
		oz	91	112	136	162	123	148	176	208	178	212	248	288	284	329	377
	INJECTION PRESSURE	MPa	228	184	152	128	185	170	155	143	208	175	150	128	166	145	128
	SCREW SPEED	g/s	542	669	809	963	792	867	945	1023	812	966	1133	1315	1052	1225	1380
	SCREW SPEED	r/min	0~120				0~100				0~100				0~100
	PLASTICIZING CAPACITY	g/s	77	98	125	155	121	135	145	156	105	125	148	171	150	173	192
clamping part	CLAMPING FORCE	kN	7800				10000				12500				16800
	OPEN STROKE	mm	980				1100				1250				1560
	SPACE BETWEET TIE BARS(WXH)	mm	980X980				1100X1100				1250X1250				1500X1400
	MOULD THICKNESS	mm	400~980				500~1150				550~1300				700~1500
	EJECTOR FORCE	kN	186				215				235				400
	EJECTOR STROKE	mm	260				280				320				320
	EJECTOR NUMBER	n	21				21				21				33
others	HEATER POWER	kW	58				68				85				92
	PUMP MOTOR POWER	kW	37+37				45+45				55+55				45+45+45
	MAX PUMP PRESSURE	MPa	14				14				14				14
	MACHINE DIMENSION(LxWxH)	mm	11X2.6X3.8				12X2.8X4				13.8X3.2X4.2				14.6X3.5X4.3
	MACHINE WEIGHT	t	46				58				65				105
	HOPPER CAPACITY	L	200				200				200				400
