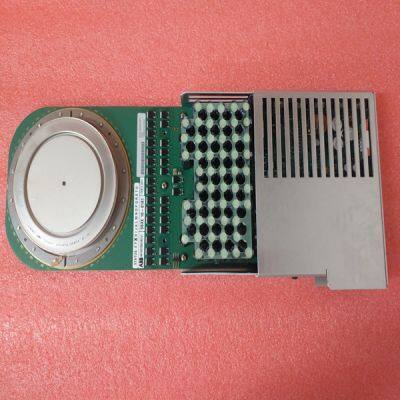

5SHY6545L0001 AC10272001R0101 5SXE10-0181

Product Details

Product Description

Product Description
Brand:ABB
Type:5SHY6545L0001 AC10272001R0101 5SXE10-0181
Origin:the Swiss
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
8.4.14 Pass-through Formatted Float Data Block for Functions 6 & 16 (9957) Block 9957: Pass-Through Formatted Block for Functions 6 and 16 with Float Data Block Block 9957: Request from Module to Processor Offset Description 0 Read Block ID: 9957 1 Write Block ID: 9957 2 Number of word registers in Modbus data set 3 Starting address for Modbus data set 4 to (n+1) Data (Length in words = n - 2) Where n = 60, 120, or 240 depending on the Block Transfer Size parameter. The ladder logic is responsible for parsing and copying the received message and performing the proper control operation as expected by the Master device. The processor must then respond to the Pass-Through block with a write block with the following format. Block 9957: Response from Processor to Module Offset Description 0 Write Block ID: 9957 1 to n Spare (Length in words = n - 2) This informs the module that the command has been processed and can be cleared from the Pass-Through queue.
8.4.15 Pass-through Formatted Block for Function 5 (9958) Block 9958: Pass-Through Formatted Block for Function 5 Block 9958: Request from Module to Processor Offset Description 0 Read Block ID: 9958 1 Write Block ID: 9958 2 Number of word registers in Modbus data set 3 Starting address for Modbus data set 4 to (n+1) Data (Length in words = n - 2) Where n = 60, 120, or 240 depending on the Block Transfer Size parameter. The ladder logic is responsible for parsing and copying the received message and performing the proper control operation as expected by the Master device. The processor must then respond to the Pass-Through control block with an output image write block with the following format. Block 9958: Response from Processor to Module Offset Description 0 Write Block ID: 9958 1 to n Spare (Length in words = n - 2) This informs the module that the command has been processed and can be cleared from the Pass-Through queue.
