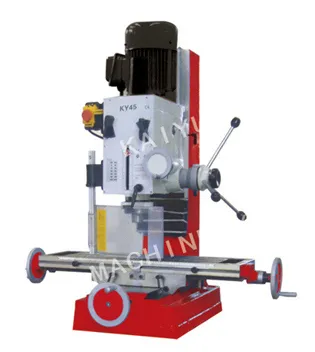

Mini Portable Vertical Gear Type Drilling Milling Machine (ky45)
| US$1,120.00-1,380.00 | 3 Sets (MOQ) |
Basic Info.
Model NO.
KY45
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Color
Red
Drilling Capacity
40mm
Face Milling Capacity
80mm
Spindle Taper
Mt4/ISO30
Sleeve Travel
120mm
Motor
1.1kw
Net Weight
320kg
Packing Size
820X760X1150mm
T-Slot
14mm
Transport Package
Wooden Case
Specification
KY45
Trademark
KY
Origin
China
Production Capacity
150-200 Sets /Month
Product Description
Features1.Accurate, universal precision drilling-milling machine;
2.Heavy solid casting;
3.Very wide speed range;
4.Very smooth running due to ground gear;
5.Spindle is supported by high precision taper roller bearing;
6.Mill head may be tilted right and left;
7.Positive and easy o read depth gauge;
8.Adjustable taper gibs of slideways;
9.High precision manual fine down feed.
| Specification | |
| Model No. | KY45 |
| Drilling capacity | 40mm |
| Face milling capacity | 80mm |
| End milling capacity | 32mm |
| Spindle taper | MT4/ISO30 |
| Sleeve travel | 120mm |
| speed range | 75-1600 rpm |
| speed step | 6 |
| Head rotation | ±90° |
| Table size | 800x240mm |
| X-axis travel | 560mm |
| Y-axis travel | 300mm |
| Z-axis travel | 210mm |
| T-slot | 14mm |
| Motor | 1.1KW |
| Packing size | 820x760x1150mm |
| Net weight | 320kg |
| Standard Accessories | |
| Drill chuck 3-16mm | 1 set |
| Arbor MT4/B16, M12 | 1 set |
| Drawbar MT4/M12 | 1 set |
| Operating tools | 1 set |
| Optional Accessories | |
| Stand & chip tray | |
| 2-speed motor (75-3200rpm/12) | |
| Tapping function | |
| Coolant system | |
| Halogen working lamp | |
| Automatic spindle (0.1,0.2,0.3 mm/r) | |
| Keyless drill chuck 3-16mm | |
| ER32/6pcs collet chuck (6-20mm) | |
| Milling vise | |
| End mill 7pcs (4-16mm) | |
| 58pcs of clamping kits/M12-13.7mm | |
| Power feed (X,Y) | |
| Digital readout | |
