ATEX&IECEx Approval 2K HD Infrared Industrial Explosion-Proof CCTV Surveillance PTZ Camera

Product Description

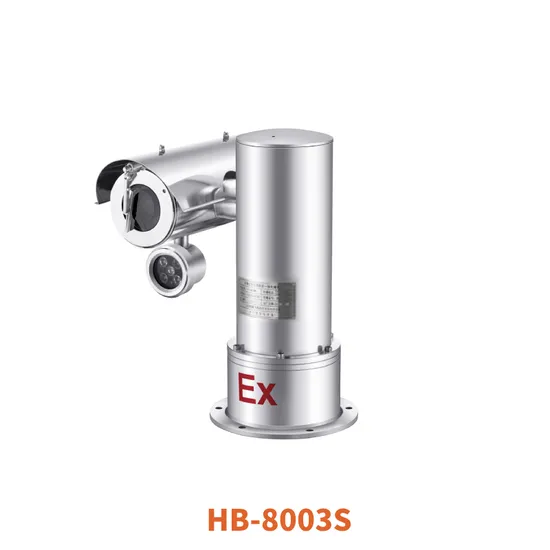

[25x 4mp] Explosion-proof PTZ Camera
HB-8003S-F8425
Functional Characteristics · Double explosion-proof certification, ATEX and IECEx certificates, explosion-proof mark: Ex db IIC T6 Gb / Ex tb IIIC T80ºC Db
· The highest resolution can reach 4 million pixels (2560 × 1440), with a maximum output of 2560 full HD × 1440@30fps real-time image
· Support H.265/H.264 video compression algorithm, support multi-level video quality configuration, and encoding complexity settings
· Starlight level ultra-low illumination, 0.001Lux/F1.67 (color), 0.0005Lux/F1.67 (black and white), 0 Lux with IR
· Support 25x optical zoom and 16x digital zoom
· Support basic functions such as mobile detection
· Support three bit stream technology, each bit stream can be independently configured with resolution and frame rate
· ICR infrared filter type automatic switching, achieving true day and night monitoring
· Support backlight compensation, automatic electronic shutter, and other functions to adapt to different monitoring environments
· Support 3D digital noise reduction, strong light suppression, and wide dynamic range
· Support 255 preset positions and 8 cruise scans
· Support timed and event capture functions
· Support for one click watch and one click cruise functions
· Support 1 channel of audio input and 1 channel of audio output
· 1 built-in alarm input and 1 alarm output, supporting alarm linkage function
· Support up to 256GB of Micro SD/SDHC/SDXC card storage
· Support ONVIF and GB/T28181 access
· Uses multi-angle fog surface / bright surface array infrared lamp, low heat energy, low power consumption, irradiation distance up to 100 meters
· Horizontal direction 360° continuous rotation, vertical direction ± 90°, no monitoring blind area
· Supports AC85V ~260V wide voltage power supply, with optional DC24V 3A power supply
· Intelligent wiper function, wiper using car wiper blade, good weather resistance, easy to change
· Turbine worm transmission structure design, precision stepper motor drive, sensitive response, smooth operation
· Built-in semiconductor temperature-controlled components for automatic heating and heat dissipation
· The window adopts special explosion-proof glass, and the glass surface is treated by nanotechnology, with high optical pass rate, non-sticky water, non-sticky oil and dust exclusion
· Is made of 304 stainless steel material, suitable for chemical industry, acid and alkali and other strong corrosive environment for use
Use Environment It is suitable for places with combustible gases of Class IIA, IIB and IIC, Zone 1 and Zone 2 with ignition temperature group T1-T6, and places where combustible gases or vapors form explosive mixtures with air.
It is also applicable to areas 21 and 22 with ignition temperature group T1-T6 and places containing combustible dust mixture. Such as: petroleum, chemical industry, mine, medicine, oil depot, ship, drilling platform, gas station, fireworks production, grain processing and storage, etc.
Technical Parameters

	Explosion-proof Infrared HD PTZ camera
Explosion-proof sign	Ex db IIC T6 Gb/Ex tb IIIC T80ºC Db
Protection level	IP68
Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Minimum Illumination	Color:0.001 Lux @ (F1.67,AGC ON); B/W:0.0005Lux @ (F1.67,AGC ON)
Shutter	1/25s to 1/100,000s; Supports delayed shutter
Aperture	DC drive
Lens
Focal Length	5.5-137.5mm, 25x Optical Zoom
Aperture Range	F1.67-F3.67
Horizontal Field of View	53.6-3.67°(wide-tele)
Minimum Working Distance	100mm-1500mm (wide-tele)
Zoom Speed	Approximately 3.5s (optical, wide-tele)
Compression Standard
Video Compression	H.265 / H.264
H.265 Type	Main Profile
H.264 Type	BaseLine Profile / Main Profile / High Profile
Video Bitrate	32 Kbps~16Mbps
Audio Compression	G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM
Audio Bitrate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16- 64Kbps(AAC)
Image (Maximum Resolution:2560x1440)
Main Stream	50Hz: 25fps (2560 x 1440, 1920 x 1080, 1280 x 720); 60Hz: 30fps (2560 x1440,1920 x 1080, 1280 x 720)
Third Stream	50Hz: 25fps (704x576); 60Hz: 30fps (704x576)
Image Settings	Saturation, Brightness, Contrast and Sharpness can be adjusted via the client-side or browser
BLC	Support
Exposure Mode	AE / Aperture Priority / Shutter Priority / Manual Exposure
Focus Mode	Auto Focus / One Focus / Manual Focus / Semi-Auto Focus
Area Exposure /Focus	Support
Defog	Support
Day/Night Switch	Automatic, manual, timing, alarm trigger
3D Noise Reduction	Support
Picture Overlay Switch	Support BMP 24-bit image overlay, customized area
Region of Interest	Support three streams and four fixed areas
Network
Storage Function	Support Micro SD / SDHC / SDXC card (256G) offline local storage, NAS (NFS, SMB / CIFS support)
Protocols	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6
Interface Protocol	ONVIF (PROFILE S,PROFILE G)
Interface
External Interface	36pin FFC (Network port, RS485, RS232, CVBS, SDHC, Alarm In/Out Line In/Out, power)
General
Rotation range	Horizontal: 360° continuous rotation; vertical: ± 90°
Rotation speed	Horizontal: 0.1° -40° / s, vertical: 0.1° -40° / s
Preset point	255
Preposition accuracy	±0.1°
Automatic cruise	Four bars, each with 16 preset points that can be added
Watch function	Support
Double the speed limit	Support
Power memory	Support
Audio interface	1In, 1, out(optional)
Alarm interface	1In, 1, out(optional)
Network interface	Built-in RJ45 network port, support 10M / 100M network data
Temperature range	-40ºC~+60ºC
Power supply	AC85V ~ 260V / DC24V 3A (optional)
Product material	304 Stainless steel material (chemical, acid and other strong corrosive environment)
Inlet hole specification	1 M25*1.5 inlet hole
Way to install	Multiple installation options are optional based on the application environment
Product weight	≤29kg

Product Size
