Product Description

Product Description
Three-Phase Motor is an electric motor driven by a three-phase AC power source.
They are widely used as power sources for industrial equipment and machinery. Also called three-phase induction motors (induction motors), they are generally powered by a three-phase AC power supply of 200 V, 110V, 380V and so on.
Three-Phase Motors consist of a stator, rotor, output shaft, flange bracket, and ball bearings.
YS (MS), YE3, Y4 Motor Series
YS (MS), YE3, YE4 series three-phase asynchronous motors with Aluminum housing adopted the newest design and high quality material.lt is conformity with the IEC 34-1 standards. The efficiency of the motors can meet EFF2 and EFF1 if requested. That good features: perfect performance low noises light vibration, reliable running, good appearance, small volume and light weight.
YEJ Brake Motor Series
Brake motor is made of two parts: three-phase asynchronous motors and brake, it belongs to three-phase-asynchronous motor derived series. Manual brake release and bolt release are two forms of brake. Brake is the main components of the brake motor. Its working power divided into two categories: One is AC braking, the other is DC braking. Our company produces brake motors are DC brake motors, the advantage of the braking torque is below, easy installation, braking response speed, high reliability, versatility and other advantages.
To the Ac power to the brake coil is provided with suction cups for low voltage winding rated DC voltage. A single-phase AC power is rectified then supply to a sucker winding to make it work so the brake motor terminal box fitted with a rectifier, wiring diagram below.Brake motor braking time (t) is the time from the motor and brake stopping the power to the shaft completely stopped, under normal circumstances, for 63 to 880 frame size motor, the braking time is 0.5 seconds. For o-132 frame size motor the braking time is 1 second, For 160 to180 frame size motor, the braking time is 2 seconds.

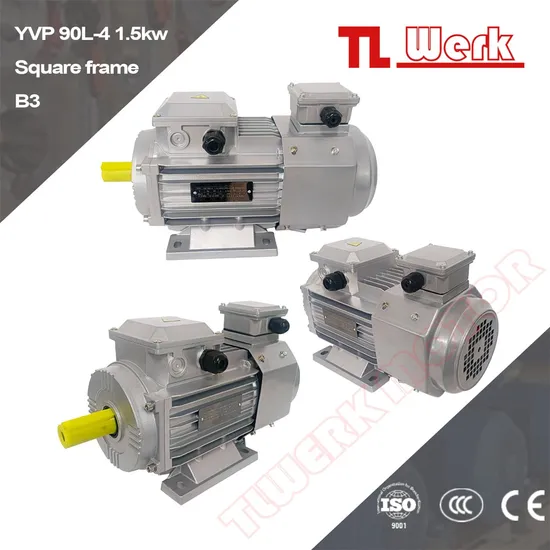

YVP Frequency Conversion Motor Series
YVP speed has become the popular way, can be widely used in various industries continuously variable transmission.
In the variable frequency motor speed control system, using power electronic inverter as a power supply is inevitable that there will be high harmonics, harmonic greater impact on the motor. Mainly reflected in the magnetic circuit and the circuit harmonic magnetic potential harmonic currents. Different amplitudes and frequencies of harmonic currents and magnetic flux will cause the motor stator copper loss rotor aluminum consumption. These losses of the motor efficiency and power factor reduction, the majority of these losses into heat, causing additional heating of the motor, causing the motor temperature increases, the increase in temperature generally 10~20%. As a result of electromagnetic interference power, conduction and radiation, the stator winding insulation aging, resulting in deterioration of the common-mode voltage and leakage current of accelerated beaning, bearing perishable, while the motor screaming. Since harmonic electromagnetic torque constant harmonic electromagnetic torque and vibration harmonic MMFs and rear rotor harmonic current synthesis. The torque of the motor torque will generate pulsating issued, so that the motor speed vibration is low.
Our produce YS, IE2, IE3, IE4 Series Universal three-phase asynchronous motor design, our main consideration is the motor overload, starting performance, efficiency and power factor. Another major consideration for non-sinusoidal motor power adaptability. Suppose the influence of higher harmonic current to the motor. Since the motor is increased when the working
Temperature of the low-frequency region, class F insulation dl ass above, the use of polymer insulation materials and vacuum pressure impregnation process, and the use of special insulation structure. Ln order to reduce the electromagnetic torque ripple, improve the precision mechanical parts to improve the quality level constant. high-precision bearing mute. n order to eliminate vibration motor, the motor structure to strengthen the overall design.
Operating conditions:

Ambient temperature:	-15ºC<0<40ºC	Duty:	S1 (continuous)
Altitude:	not exceed1000m	Insulation class:	B/F/H
Rated voltage:	380V, 220V-760Vis available	Protection class:	lP54/IP55
Rated frequency:	50HZ/60HZ	Cooling method:	IC0141

Production Flow
Product Overall & Installation Dimensions:
YS/MS Series:

Frame size	lnstallation Dimensions B3 (mm )									lnstallation Dimensions B5 (mm )					lnstallation Dimension B14 (mm )					Mounting Dimensions (mm )
	A	B	C	D	E	F	G	H	K	M	N	P	S	T	M	N	P	S	T	AB	AC	AD	HD	L
56	90	71	36	9	20	3	7.2	56	5.8	100	80	120	7	3	65	50	80	M5	2.5	110	120	100	155	195
63	100	80	40	11	23	4	8.5	63	7	115	95	140	10	3	75	60	90	M5	2.5	125	130	100	165	215
71	112	90	45	14	30	5	11	71	7	130	110	160	10	3.5	85	70	105	M6	2.5	140	150	110	185	246
80	125	100	50	19	40	6	15.5	80	10	165	130	200	12	3.5	100	80	120	M6	3	160	170	135	215	285
90S	140	100	56	24	50	8	20	90	10	165	130	200	12	3.5	115	95	140	M8	3	178	185	137	226	335
90L	140	125	56	24	50	8	20	90	10	165	130	200	12	3.5	115	95	140	M8	3	178	185	137	226	335
100L	160	140	63	28	60	8	24	100	12	215	180	250	15	4	130	110	160	M8	3.5	206	206	150	250	376
112M	190	140	70	28	60	8	24	112	12	215	180	250	15	4	130	110	160	M8	3.5	222	228	170	285	400
132S	216	140	89	38	80	10	33	132	12	265	230	300	15	4	165	130	200	M10	4	257	267	190	325	460
132M	216	178	89	38	80	10	33	132	12	265	230	300	15	4	165	130	200	M10	4	257	267	190	325	500
160M	254	210	108	42	110	12	37	160	15	300	250	350	15	5	215	180	250	M12	4	320	330	255	420	615
160L	254	254	108	42	110	12	37	160	15	300	250	350	15	5	215	180	250	M12	4	320	330	255	420	675
180M	279	241	121	48	110	14	42.5	180	15	300	250	350	19	5	265	230	300	M15	4	355	380	280	455	700
180L	279	279	121	48	110	14	42.5	180	15	300	250	350	19	5	265	230	300	M15	4	355	380	280	455	740

YE3, YE4 Series:

Frame size	lnstallation Dimensions B3 (mm )									lnstallation Dimensions B5 (mm )					lnstallation Dimension B14 (mm )					Mounting Dimensions (mm )
	A	B	C	D	E	F	G	H	K	M	N	P	S	T	M	N	P	S	T	AB	AC	AD	HD	L
56	90	71	36	9	20	3	7.2	56	5.8	100	80	120	7	3	65	50	80	M5	2.5	110	120	100	155	195
63	100	80	40	11	23	4	8.5	63	7	115	95	140	10	3	75	60	90	M5	2.5	125	130	100	165	215
71	112	90	45	14	30	5	11	71	7	130	110	160	10	3.5	85	70	105	M6	2.5	140	150	110	185	246
80	125	100	50	19	40	6	15.5	80	10	165	130	200	12	3.5	100	80	120	M6	3	160	170	145	215	305
90S	140	100	56	24	50	8	20	90	10	165	130	200	12	3.5	115	95	140	M8	3	178	185	165	226	360
90L	140	125	56	24	50	8	20	90	10	165	130	200	12	3.5	115	95	140	M8	3	178	185	165	226	385
100L	160	140	63	28	60	8	24	100	12	215	180	250	15	4	130	110	160	M8	3.5	270	206	175	250	445
112M	190	140	70	28	60	8	24	112	12	215	180	250	15	4	130	110	160	M8	3.5	270	228	190	285	455
132S	216	140	89	38	80	10	33	132	12	265	230	300	15	4	165	130	200	M10	4	270	267	220	325	475
132M	216	178	89	38	80	10	33	132	12	265	230	300	15	4	165	130	200	M10	4	270	267	220	325	570
160M	254	210	108	42	110	12	37	160	15	300	250	350	15	5	215	180	250	M12	4	320	330	260	420	655
160L	254	254	108	42	110	12	37	160	15	300	250	350	15	5	215	180	250	M12	4	320	330	260	420	685
180M	279	241	121	48	110	14	42.5	180	15	300	250	350	19	5	265	230	300	M15	4	360	380	305	455	705
180L	279	279	121	48	110	14	42.5	180	15	300	250	350	19	5	265	230	300	M15	4	360	380	305	455	745

YEJ B3 Series H63-180:

Frame size	Installation Dimensions (mm)
	A	B	C	D	E	F	G	H	K	AB	AC	HD	L
63	100	80	40	Φ11	23	4	12.5	63	Φ7	135	120×120	167	255
71	112	90	45	Φ14	30	5	16	71	Φ7	137	130×130	178	305
80M	125	100	50	Φ19	40	6	21.5	80	Φ10	155	145×145	190	340
90S	140	100	56	Φ24	50	8	27	90	Φ10	175	160×160	205	400
90L	140	125	56	Φ24	50	8	27	90	Φ10	175	160×160	205	400
100L	160	140	63	Φ28	60	8	31	100	Φ12	200	185×185	240	440
112M	190	140	70	Φ28	60	8	31	112	Φ12	230	200×200	270	480
132S	216	140	89	Φ38	80	10	41	132	Φ12	270	245×245	315	567
132M	216	178	89	Φ38	80	10	41	132	Φ12	270	245×245	315	567
160M	254	210	108	Φ42	110	12	45	160	Φ14.5	320	335×335	450	780
160L	254	254	108	Φ42	110	12	45	160	Φ14.5	320	335×335	450	780
180M	279	241	121	Φ48	110	14	51.5	180	Φ14.5	355	370×370	500	880
180L	279	279	121	Φ48	110	14	51.5	180	Φ14.5	355	370×370	500	880

YEJ B5 Series H63-180:

Frame size	Installation Dimensions (mm)
	D	E	F	G	M	N	P	S	T	AC	HD	L
63	Φ11	23	4	12.5	115	95	140	10	3	120×120	104	255
71	Φ14	30	5	16	130	110	160	10	3	130×130	107	305
80M	Φ19	40	6	21.5	165	130	200	12	3.5	145×145	115	340
90S	Φ24	50	8	27	165	130	200	12	3.5	160×160	122	400
90L	Φ24	50	8	27	165	130	200	12	3.5	160×160	122	400
100L	Φ28	60	8	31	215	180	250	14.5	4	185×185	137	440
112M	Φ28	60	8	31	215	180	250	14.5	4	200×200	155	480
132S	Φ38	80	10	41	265	230	300	14.5	4	245×245	180	567
132M	Φ38	80	10	41	265	230	300	14.5	4	245×245	180	567
160M	Φ42	110	12	45	300	250	350	18.5	5	320×320	290	780
160L	Φ42	110	12	45	300	250	350	18.5	5	320×320	290	780
180M	Φ48	110	14	51.5	300	250	350	18.5	5	360×360	340	880
180L	Φ48	110	14	51.5	300	250	350	18.5	5	360×360	340	880

YEJ B14 Series H63-112:

Frame size	Installation Dimensions (mm)
	D	E	F	G	M	N	P	S	T	AC	HD	L
63	Φ11	23	4	12.5	75	60	90	M5	2.5	120×120	104	255
71	Φ14	30	5	16	85	70	105	M6	2.5	130×130	107	305
80	Φ19	40	6	21.5	100	80	110	M6	3	145×145	115	340
90S	Φ24	50	8	27	115	95	120	M8	3	160×160	122	400
90L	Φ24	50	8	27	115	95	120	M8	3	160×160	122	400
100L	Φ28	60	8	31	130	110	155	M8	3.5	185×185	137	440
112M	Φ28	60	8	31	130	110	160	M8	3.5	200×200	155	480

YVP B3 Series H63-180:

Frame size	Installation Dimensions (mm)
	A	B	C	D	E	F	G	H	K	AB	AC	HD	L
63	100	80	40	Φ11	23	4	12.5	63	7	135	120×120	167	260
71	112	90	45	Φ14	30	5	16	71	7	137	130×130	178	295
80	125	100	50	Φ19	40	6	21.5	80	10	155	145×145	190	340
90S	140	100	56	Φ24	50	8	27	90	10	175	160×160	205	390
90L	140	125	56	Φ24	50	8	27	90	10	175	160×160	205	400
100L	160	140	63	Φ28	60	8	31	100	12	200	185×185	240	430
112M	190	140	70	Φ28	60	8	31	112	12	230	200×200	270	460
132S	216	140	89	Φ38	80	10	41	132	12	270	245×245	315	525
132M	216	178	89	Φ38	80	10	41	132	12	270	245×245	315	525
160M	254	210	108	Φ42	110	12	45	160	14.5	320	335×335	450	850
160L	254	254	108	Φ42	110	12	45	160	14.5	320	335×335	450	870
180M	279	241	121	Φ48	110	14	51.5	180	14.5	355	370×370	500	880
180L	279	279	121	Φ48	110	14	51.5	180	14.5	355	370×370	500	980

YVP B5 Series H63-180:

C	Installation Dimensions (mm)
	D	E	F	G	M	N	P	S	T	AC	HD	L
63	Φ11	23	4	12.5	115	95	140	10	3	120×120	104	260
71	Φ14	30	5	16	130	110	160	10	3.5	130×130	107	295
80M	Φ19	40	6	21.5	165	130	200	12	3.5	145×145	115	340
90S	Φ24	50	8	27	165	130	200	12	3.5	160×160	122	390
90L	Φ24	50	8	27	165	130	200	12	3.5	160×160	122	400
100L	Φ28	60	8	31	215	180	250	14.5	4	185×185	137	430
112M	Φ28	60	8	31	215	180	250	14.5	4	200×200	155	460
132S	Φ38	80	10	41	265	230	300	14.5	4	245×245	180	525
132M	Φ38	80	10	41	265	230	300	14.5	4	245×245	180	252
160M	Φ42	110	12	45	300	250	350	18.5	5	335×335	290	850
160L	Φ42	110	12	45	300	250	350	18.5	5	335×335	290	870
180M	Φ48	110	14	51.5	300	250	350	18.5	5	370x370	340	880
180L	Φ48	110	14	51.5	300	250	350	18.4	5	370×370	340	980

YVP B14 Series H63-112:

Frame size	Installation Dimensions (mm)
	D	E	F	G	M	N	P	S	T	AC	HD	L
63	Φ11	23	4	12.5	75	60	90	M5	2.5	120×120	104	260
71	Φ14	30	5	16	85	70	105	M6	2.5	130×130	107	295
80	Φ19	40	6	21.5	100	80	110	M6	3	145×145	115	340
90S	Φ24	50	8	27	115	95	120	M8	3	160×160	122	390
90L	Φ24	50	8	27	115	95	120	M8	3	160×160	122	400
100L	Φ28	60	8	31	130	110	155	M8	3.5	185×185	137	430
112M	Φ28	60	8	31	130	110	160	M8	3.5	200×200	155	460

Product Parameters
YS/MS Series:

TYPE	RATED OUTPUT		RATED SPEED	EFFICIENCY	POWER FOCTOR	RATED CURRENT	RATED TORQUE	LOCKED ROTOR TORQUE	MAXIMUM TOROUE	LOCKED ROTOR TORQUE
								RATED TORQUE	RATED TORQUE	RATED CURRENT
	KW	HP	rpm	η%(IE2)	cosφ	A	Nm	Ts/Tn	Tmax/Tn	IS/In
YS-5612	0.09	1/8	2680	62.0	0.68	0.32	0.307	2.3	2.3	6.0
YS-5622	0.12	1/6	2660	67.0	0.71	0.38	0.410	2.3	2.3	6.0
YS-6312	0.18	1/4	2710	69.0	0.75	0.53	0.614	2.3	2.3	6.0
YS-6322	0.25	1/3	2730	72.0	0.78	0.68	0.853	2.3	2.3	6.0
YS-7112	0.37	1/2	2760	73.5	0.80	0.96	1.260	2.3	2.3	6.0
YS-7122	0.55	3/4	2770	75.5	0.82	1.35	1.880	2.3	2.3	6.0
YS-8012	0.75	1.0	2770	76.5	0.85	1.75	2.560	2.2	2.3	6.0
YS-8022	1.10	1.5	2800	77.0	0.85	2.55	3.750	2.2	2.3	7.0
YS-90S-2	1.50	2.0	2840	78.5	0.85	3.42	5.040	2.2	2.3	7.0
YS-90L-2	2.20	3.0	2840	81.0	0.86	4.80	7.400	2.2	2.3	7.0
YS-100L-2	3.00	4.0	2890	84.6	0.87	6.17	9.910	2.2	2.3	7.8
YS-5614	0.06	1/12	1320	56.0	0.58	0.28	0.410	2.4	2.4	6.0
YS-5624	0.09	1/8	1320	58.0	0.61	0.39	0.614	2.4	2.4	6.0
YS-6314	0.12	1/6	1350	60.0	0.63	0.48	0.819	2.4	2.4	6.0
YS-6324	0.18	1/4	1350	64.0	0.66	0.65	1.230	2.4	2.4	6.0
YS-7114	0.25	1/3	1350	67.0	0.68	0.83	1.710	2.4	2.4	6.0
YS-7124	0.37	1/2	1350	69.5	0.72	1.12	2.520	2.4	2.4	6.0
YS-8014	0.55	3/4	1380	73.5	0.73	1.56	3.750	2.4	2.4	6.0
YS-8024	0.75	1.0	1390	75.5	0.75	2.01	5.120	2.3	2.4	6.5
YS-90S-4	1.10	1.5	1400	78.0	0.78	2.75	7.400	2.3	2.4	6.5
YS-90L-4	1.50	2.0	1400	79.0	0.79	3.65	10.100	2.3	2.4	6.5
YS-100L1-4	2.20	3.0	1440	84.3	0.81	4.90	14.600	2.3	2.3	7.6
YS-100L2-4	3.00	4.0	1440	85.5	0.82	6.50	19.900	2.3	2.3	7.6
YS-7116	0.18	1/4	910	59.0	0.61	0.76	1.890	2.0	2.0	5.5
YS-7126	0.25	1/3	910	63.0	0.62	0.97	2.260	2.0	2.0	5.5
YS-8016	0.37	1/2	910	68.0	0.62	1.33	3.880	2.0	2.0	5.5
YS-8026	0.55	3/4	910	71.0	0.64	1.84	5.770	2.0	2.0	5.5
YS-90S-6	0.75	1.0	920	73.0	0.68	2.30	7.790	2.0	2.1	5.5
YS-90L-6	1.10	1.5	920	74.0	0.70	3.23	11.400	2.0	2.1	6.0
YS-100L-6	1.50	2.0	940	79.0	0.75	3.38	15.200	2.0	2.1	6.5
YS-711-8	0.09	0.12	600	40.0	0.57	0.60	1.950	1.8	1.9	2.8
YS-712-8	0.12	0.18	600	45.0	0.57	0.71	2.160	1.8	1.9	2.8
YS-801-8	0.18	0.25	645	51.0	0.61	0.88	2.490	1.8	2.0	3.3
YS-802-8	0.25	0.37	645	54.0	0.61	1.15	3.640	1.8	2.0	3.3
YS-90S-8	0.37	0.50	670	62.0	0.61	1.49	5.120	1.8	2.0	4.0
YS-90L-8	0.55	0.75	670	63.0	0.61	2.17	7.610	1.8	2.1	4.0

YE3 Series:

TYPE	RATED OUTPUT		RATED SPEED	EFFICIENCY	POWER FOCTOR	RATED CURRENT	RATED TORQUE	LOCKED ROTOR TORQUE	MAXIMUM TOROUE	LOCKED ROTOR TORQUE
								RATED TORQUE	RATED TORQUE	RATED CURRENT
	KW	HP	rpm	η%(IE3)	cosφ	A	Nm	Ts/Tn	Tmax/Tn	IS/In
YE3-801-2	0.75	1.0	2880	80.7	0.82	1.72	2.49	2.3	2.3	7.0
YE3-802-2	1.10	1.5	2880	82.7	0.83	2.43	3.65	2.2	2.3	7.3
YE3-90S-2	1.50	2.0	2895	84.2	0.84	3.22	4.95	2.2	2.3	7.6
YE3-90L-2	2.20	3.0	2895	85.9	0.85	4.58	7.26	2.2	2.3	7.6
YE3-100L-2	3.00	4.0	2895	87.1	0.87	6.02	9.90	2.2	2.3	7.8
YE3-160L-2	18.50	25.0	2940	92.4	0.89	34.20	60.10	2.0	2.3	8.2
YE3-802-4	0.75	1.0	1420	82.5	0.75	1.84	5.04	2.3	2.3	6.6
YE3-90s-4	1.10	1.5	1445	84.1	0.76	2.61	7.27	2.3	2.3	6.8
YE3-90L-4	1.50	2.0	1445	85.3	0.77	3.47	9.91	2.3	2.3	7.0
YE3-100L1-4	2.20	3.0	1435	86.7	0.81	4.76	14.60	2.3	2.3	7.6
YE3-100L2-4	3.00	4.0	1435	87.7	0.82	6.34	20.00	2.3	2.3	7.6
YE3-112M-4	4.00	5.5	1440	88.6	0.82	8.37	26.50	2.2	2.3	7.8
YE3-132S-4	5.50	7.5	1460	89.6	0.83	11.20	36.00	2.0	2.3	7.9
YE3-132M-4	7.50	10.0	1460	90.4	0.84	15.00	49.10	2.0	2.3	7.5
YE3-160M-4	11.00	15.0	1465	91.4	0.85	21.50	71.70	2.2	2.3	7.7
YE3-160L-4	15.00	20.0	1465	92.1	0.86	28.80	97.80	2.2	2.3	7.8
YE3-180M-4	18.50	25.0	1470	92.6	0.86	35.30	120.20	2.0	2.3	7.8
YE3-180L-4	22.00	30.0	1470	93	0.86	41.80	142.90	2.0	2.3	7.8
YE3-90S-6	0.75	1.0	935	78.9	0.71	2.03	7.66	2.0	2.1	6.0
YE3-90L-6	1.10	1.5	945	81	0.73	2.83	11.10	2.0	2.1	6.0
YE3-100L-6	1.50	2.0	949	82.5	0.73	3.78	15.10	2.0	2.1	6.5
YE3-112M-6	2.20	3.0	955	84.3	0.74	5.36	22.00	2.0	2.1	6.6
YE3-132S-6	3.00	4.0	968	85.6	0.74	7.20	29.60	2.0	2.1	6.8
YE3-132M1-6	4.00	5.5	968	86.8	0.74	9.46	39.50	2.0	2.1	6.8
YE3-132M2-6	5.50	7.5	968	88	0.75	12.70	54.30	2.0	2.1	7.0
YE3-160M-6	7.50	10.0	970	89.1	0.79	16.20	73.80	2.0	2.1	7.0
YE3-160L-6	11.00	15.0	970	90.3	0.8	23.10	108.30	2.0	2.1	6.2
YE3-180L-6	18.50	20.0	975	91.2	0.81	30.90	146.90	2.0	2.1	7.3

YE4 Series:

	OUTPUT	RATED CURRENT	ROTATE SPEED	EFFICIENCY	POWER FOCTOR	RATED TORQUE	LOCKED ROTOR TORQUE	LOCKED ROTOR CURRENT	MAXIMUM TORQUE	NOISE
TYPE							RATED TORQUE	RATED CURRENT	RATED TORQUE
	kW	A	r/min	Eff.%(IE4)	P.F	N.m	Tst	Ist	Tmax	dB(A)
							TN	IN	TN
SYNCHRO-SPEED 3000r/min
YE4-80M1-2	0.75	1.6	2895	83.5	0.83	2.47	2.2	8.5	2.3	62
YE4-80M2-2	1.1	2.4	2895	85.2	0.83	3.63	2.2	8.5	2.3	62
YE4-90S-2	1.5	3.1	2880	86.5	0.85	4.97	2.2	9.0	2.3	67
YE4-90L-2	2.2	4.4	2880	88.0	0.86	7.30	2.2	9.0	2.3	67
YE4-100L-2	3	5.9	2905	89.1	0.87	9.86	2.2	9.5	2.3	74
YE4-112M-2	4	7.7	2920	90.0	0.88	13.10	2.2	9.5	2.3	77
YE4-132S1-2	5.5	10.4	2945	90.0	0.88	17.80	2.0	9.5	2.3	79
YE4-132S2-2	7.5	14	2940	91.7	0.89	24.40	2.0	9.5	2.3	79
YE4-160M1-2	11	20.3	2965	92.6	0.89	35.40	2.0	9.5	2.3	81
YE4-160M2-2	15	27.5	2965	93.3	0.89	48.30	2.0	9.5	2.3	81
YE4-160L-2	18.5	33.7	2965	93.7	0.89	59.60	2.0	9.5	2.3	81
SYNCHRO-SPEED1500r/min
YE4-80M1-4	0.55	1.4	1440	83.9	0.74	3.65	2.4	6.6	2.3	56
YE4-80M2-4	0.75	1.8	1440	85.7	0.74	4.97	2.3	8.5	2.3	56
YE4-90S-4	1.1	2.6	1445	87.2	0.75	7.27	2.3	8.5	2.3	59
YE4-90L-4	1.5	3.4	1445	88.2	0.76	9.91	2.3	9.0	2.3	59
YE4-100L1-4	2.2	4.7	1450	89.5	0.79	14.50	2.3	9.0	2.3	64
YE4-100L2-4	3	6.3	1450	90.4	0.8	19.80	2.3	9.5	2.3	64
YE4-112M-4	4	8.3	1460	91.1	0.8	26.20	2.3	9.5	2.3	65
YE4-132S-4	5.5	11.4	1475	91.1	0.8	35.60	2.0	9.5	2.3	71
YE4-132M-4	7.5	15.2	1470	92.6	0.81	48.70	2.0	9.5	2.3	71
YE4-160M-4	11	21.6	1470	93.3	0.83	71.50	2.0	9.5	2.3	73
YE4-160L-4	15	28.9	1470	93.9	0.84	97.40	2.0	9.5	2.3	73
SYNCHRO-SPEED1000r/min
YE4-80M1-6	0.37	1.1	940	78.0	0.68	3.76	1.9	6.0	2.1	54
YE4-80M2-6	0.55	1.5	940	80.9	0.68	5.59	1.9	6.0	2.1	54
YE4-90S-6	0.75	2	950	82.7	0.7	7.54	2.1	7.5	2.1	57
YE4-90L-6	1.1	2.8	950	84.5	0.7	11.10	2.1	7.5	2.1	57
YE4-100L-6	1.5	3.7	960	85.9	0.71	14.90	2.1	7.5	2.1	61
YE4-112M-6	2.2	5.4	975	87.4	0.71	21.50	2.1	7.5	2.1	65
YE4-132S-6	3	7.2	985	88.6	0.71	29.10	2.0	7.5	2.1	69
YE4-132M1-6	4	9.4	985	89.5	0.72	38.80	2.0	8.0	2.1	69
YE4-132M2-6	5.5	12.8	980	90.5	0.72	53.60	2.0	8.0	2.1	69
YE4-160M-6	7.5	16.4	980	91.3	0.76	73.10	2.0	8.0	2.1	73
YE4-160L-6	11	23.5	980	92.3	0.77	107.00	2.0	8.5	2.1	73

YEJ 3000r/min 380V 50Hz:

TYPE	RATED OUTPUT	RATED SPEED	EFFICENCY	POWER FOCTOR	RATED CURRENT	RATED TORQUE	LOCKED ROTOR TORQUE	MAXIMUM TORQUE	STATIC BRAKE TCRQUE	BRAKE TIME
							RATED TORQUE	RATED TORQUE	DC
	KW	rpm	η%	COSφ	A	Nm	Ts/Tn	Tmax/Tn	NM	S
YEJ-631-2	0.18	2800	65.0	0.80	0.53	0.61	2.2	2.2	3.5	0.10
YEJ-632-2	0.25	2800	68.0	0.81	0.69	0.85	2.2	2.2	3.5	0.10
YEJ-711-2	0.37	2830	70.0	0.81	0.99	1.25	2.2	2.2	4.0	0.10
YEJ-712-2	0.55	2830	73.0	0.82	1.40	1.86	2.2	2.3	4.0	0.10
YEJ-801-2	0.75	2840	75.0	0.83	1.83	2.52	2.2	2.3	7.5	0.10
YEJ-802-2	1.10	2840	77.0	0.84	2.55	3.70	2.2	2.3	7.5	0.10
YEJ-90S-2	1.50	2840	79.0	0.84	3.39	5.04	2.2	2.3	15	0.15
YEJ-90L-2	2.20	2840	81.0	0.85	4.80	7.40	2.2	2.3	15	0.15
YEJ-100L1-2	3.00	2860	83.0	0.87	6.31	10.00	2.2	2.3	30	0.15
YEJ-100L2-2	4.00	2880	85.0	0.88	8.22	13.30	2.2	2.3	40	0.15
YEJ-112M-2	5.50	2910	86.0	0.88	11.2	18.00	2.2	2.3	80	0.15
YEJ-132S-2	7.00	2910	87.0	0.88	15.1	24.60	2.2	2.3	80	0.15
YEJ-132M-2	11.00	2930	88.0	0.89	21.3	35.90	2.2	2.3	150	0.30
YEJ-160M-2	15.00	2930	89.0	0.89	28.8	48.90	2.2	2.2	150	0.30
YEJ-160L-2	18.50	2935	90.0	0.90	34.7	60.20	2.2	2.2	150	0.30
YEJ-180M-2	22.00	2935	90.0	0.90	41.3	71.60	2.2	2.2	200	0.30

YEJ 1500r/min 380V 50Hz:

TYPE	RATED OUTPUT	RATED SPEED	EFFICENCY	POWER FOCTOR	RATED CURRENT	RATED TORQUE	LOCKED ROTOR TORQUE	MAXIMUM TORQUE	STATIC BRAKE TCRQUE	BRAKE TIME
							RATED TORQUE	RATED TORQUE	DC
	KW	rpm	η%	COSφ	A	Nm	Ts/Tn	Tmax/Tn	NM	S
YEJ-631-4	0.12	1360	57.0	0.72	0.44	0.84	2.2	2.0	3.5	0.10
YEJ-632-4	0.18	1360	60.0	0.73	0.62	1.26	2.2	2.0	3.5	0.10
YEJ-711-4	0.25	1375	65.0	0.74	0.79	1.74	2.2	2.0	4.0	0.10
YEJ-712-4	0.37	1375	67.0	0.75	1.12	2.57	2.2	2.0	4.0	0.10
YEJ-801-4	0.55	1405	71.0	0.75	1.57	3.74	2.2	2.4	7.5	0.10
YEJ-802-4	0.75	1405	73.0	0.76	2.02	5.10	2.2	2.4	7.5	0.10
YEJ-90S-4	1.10	1445	75.0	0.77	2.82	7.27	2.2	2.3	15	0.15
YEJ-90L-4	1.50	1445	78.0	0.79	3.7	9.91	2.2	2.3	15	0.15
YEJ-100L1-4	2.20	1440	80.0	0.81	5.16	14.60	2.2	2.3	30	0.15
YEJ-100L2-4	3.00	1440	82.0	0.82	6.78	19.90	2.2	2.3	30	0.15
YEJ-112M-4	4.00	1440	84.0	0.82	8.82	26.50	2.2	2.3	40	0.15
YEJ-132S-4	5.50	1440	85.0	0.83	11.7	36.50	2.2	2.3	80	0.15
YEJ-132M-4	7.50	1440	87.0	0.84	15.6	49.70	2.2	2.3	80	0.15
YEJ-160M-4	11.00	1450	88.0	0.85	21.3	72.40	2.2	2.2	150	0.30
YEJ-160L-4	15.00	1450	89.0	0.85	30.1	98.80	2.2	2.2	150	0.30
YEJ-180M-4	18.50	1455	90.5	0.86	36.5	121.40	2.2	2.2	150	0.30
YEJ-180L-4	22.00	1455	91.0	0.86	43.1	144.40	2.0	2.2	200	0.30

YEJ 1000r/min 380V 50Hz:

TYPE	RATED OUTPUT	RATED SPEED	EFFICENCY	POWER FOCTOR	RATED CURRENT	RATED TORQUE	LOCKED ROTOR TORQUE	MAXIMUM TORQUE	STATIC BRAKE TCRQUE	BRAKE TIME
							RATED TORQUE	RATED TORQUE	DC
	KW	rpm	η%	COSφ	A	Nm	Ts/Tn	Tmax/Tn	NM	S
YEJ-711-6	0.18	900	56.0	0.66	0.71	19.10	1.9	2.0	4.0	0.10
YEJ-712-6	0.25	900	59.0	0.68	0.95	2.65	1.9	2.0	4.0	0.10
YEJ-801-6	0.37	910	62.0	0.70	1.30	3.88	1.9	2.0	7.5	0.10
YEJ-802-6	0.55	910	65.0	0.72	1.79	5.77	1.9	2.1	7.5	0.10
YEJ-90S-6	0.75	930	69.0	0.72	2.26	7.70	2.1	2.1	15	0.15
YEJ-90L-6	1.10	940	72.0	0.73	3.14	11.20	2.1	2.1	15	0.15
YEJ-100L-6	1.50	940	76.0	0.76	3.95	15.20	2.2	2.1	30	0.15
YEJ-112M-6	2.20	96o	79.0	0.76	5.57	21.90	2.2	2.1	40	0.15
YEJ-132S-6	3.00	960	81.0	0.76	7.40	29.80	2.2	2.1	80	0.15
YEJ-132M1-6	4.00	960	82.0	0.76	9.63	39.80	2.2	2.1	80	0.15
YEJ-132M2-6	5.50	960	84.0	0.77	12.90	54.70	2.2	2.1	150	0.30
YEJ-160M-6	7.50	970	86.0	0.77	17.00	73.80	1.8	2.1	150	0.30
YEJ-160L-6	11.00	970	87.5	0.78	24.30	108.30	1.9	2.1	150	0.30
YEJ-180L-6	15.00	970	89.0	0.81	31.60	147.70	2.1	2.1	200	0.30

YVP 3000r/min 380V 50Hz:

TYPE	RATED OUTPUT	RATED SPEED	EFFICENCY	POWER FOCTOR	RATED CURRENT	RATED TORQUE	LOCKED ROTOR TORQUE	MAXIMUM TORQUE	FREOUENCY CONVERSION BLOWER
							RATED TORQUE	RATED TORQUE	VOLTAGEV		SPEED
	KW	rpm	η%	COSφ	A	Nm	Ts/Tn	Tmax/Tn	THREE PHASE	SINGLE PHASE	RPM
YVP-631-2	0.18	2800	65.0	0.80	0.53	0.61	2.2	2.2	380	220	2800
YVP-632-2	0.25	2800	68.0	0.81	0.69	0.85	2.2	2.2	380	220	2800
YVP-711-2	0.37	2830	70.0	0.81	0.99	1.25	2.2	2.2	380	220	2800
YVP-712-2	0.55	2830	73.0	0.82	1.40	1.86	2.2	2.3	380	220	2800
YVP-801-2	0.75	2840	75.0	0.83	1.83	2.52	2.2	2.3	380	220	2800
YVP-802-2	1.10	2840	77.0	0.85	2.55	3.70	2.2	2.3	380	220	2800
YVP-90S-2	1.50	2840	79.0	0.85	3.39	5.04	2.2	2.3	380	220	2800
YVP-90L-2	2.20	2840	81.0	0.86	4.80	7.40	2.2	2.3	380	220	2800
YVP-100L-2	3.00	2860	83.0	0.87	6.31	10.0	2.2	2.3	380	220	2800
YVP-112M-2	4.00	2880	84.0	0.88	8.22	13.3	2.2	2.3	380	220	2800
YVP-132S1-2	5.50	2910	85.0	0.88	11.2	18.0	2.2	2.3	380	220	2800
YVP-132S2-2	7.50	2910	86.0	0.88	15.1	24.6	2.2	2.3	380	220	2800
YVP-160M1-2	11.0	2930	88.0	0.89	21.3	35.9	2.2	2.3	380	220	2800
YVP-160M2-2	15.0	2930	89.0	0.89	28.8	48.9	2.2	2.3	380	220	2800
YVP-160L-2	18.5	2935	90.0	0.90	34.7	60.2	2.2	2.3	380	220	2800
YVP-180M-2	22.0	2935	90.0	0.90	41.3	71.6	2.0	2.3	380	220	2800

YVP 1500r/min 380V 50Hz:

TYPE	RATED OUTPUT	RATED SPEED	EFFICENCY	POWER FOCTOR	RATED CURRENT	RATED TORQUE	LOCKED ROTOR TORQUE	MAXIMUM TORQUE	FREOUENCY CONVERSION BLOWER
							RATED TORQUE	RATED TORQUE	VOLTAGEV		SPEED
	KW	rpm	η%	COSφ	A	Nm	Ts/Tn	Tmax/Tn	THREE PHASE	SINGLE PHASE	RPM
YVP-631-4	0.12	1360	57.0	0.72	0.44	0.84	2.2	2.0	380	220	2800
YVP-632-4	0.18	1360	60.0	0.73	0.62	1.26	2.2	2.0	380	220	2800
YVP-711-4	0.25	1375	65.0	0.74	0.79	1.74	2.2	2.0	380	220	2800
YVP-712-4	0.37	1375	67.0	0.75	1.12	2.57	2.2	2.0	380	220	2800
YVP-801-4	0.55	1405	71.0	0.75	1.57	3.74	2.2	2.4	380	220	2800
YVP-802-4	0.75	1405	73.0	0.77	2.02	5.10	2.2	2.4	380	220	2800
YVP-90S-4	1.10	1445	75.0	0.79	2.82	7.27	2.2	2.3	380	220	2800
YVP-90L-4	1.50	1445	78.0	0.79	3.70	9.91	2.2	2.3	380	220	2800
YVP-100L1-4	2.20	1440	80.0	0.81	5.16	14.60	2.2	2.3	380	220	2800
YVP-100L2-4	3.00	1440	82.0	0.82	6.78	19.90	2.2	2.3	380	220	2800
YVP-112M-4	4.00	1440	84.0	0.82	8.82	26.50	2.2	2.3	380	220	2800
YVP-132S-4	5.50	1440	85.0	0.84	11.70	36.50	2.2	2.3	380	220	2800
YVP-132M-4	7.50	1440	87.0	0.84	15.60	49.70	2.2	2.3	380	220	2800
YVP-160M-4	11.0	1450	88.0	0.85	21.30	72.40	2.2	2.2	380	220	2800
YVP-160L-4	15.0	1450	89.0	0.85	30.10	98.80	2.2	2.2	380	220	2800
YVP-180M-4	18.5	1455	90.5	0.86	36.50	121.40	2.2	2.2	380	220	2800
YVP-180L-4	22.0	1455	91.0	0.86	43.10	144.40	2.0	2.2	380	220	2800

YVP 1000r/min 380V 50Hz:

TYPE	RATED OUTPUT	RATED SPEED	EFFICENCY	POWER FOCTOR	RATED CURRENT	RATED TORQUE	LOCKED ROTOR TORQUE	MAXIMUM TORQUE	FREOUENCY CONVERSION BLOWER
							RATED TORQUE	RATED TORQUE	VOLTAGEV		SPEED
	KW	rpm	η%	COSφ	A	Nm	Ts/Tn	Tmax/Tn	THREE PHASE	SINGLE PHASE	RPM
YVP-711-6	0.18	900	58.0	0.66	0.71	1.91	1.9	2.0	380	220	2800
YVP-712-6	0.25	900	59.0	0.68	0.95	2.65	1.9	2.0	380	220	2800
YVP-801-6	0.37	910	62.0	0.70	1.30	3.88	1.9	2.0	380	220	2800
YVP-802-6	0.55	910	65.0	0.72	1.79	5.77	1.9	2.1	380	220	2800
YVP-90S-6	0.75	930	70.0	0.72	2.26	7.70	2.1	2.1	380	220	2800
YVP-90L-6	1.10	940	73.0	0.73	3.14	11.2	2.1	2.1	380	220	2800
YVP-100L-6	1.50	940	76.0	0.76	3.95	15.2	2.2	2.1	380	220	2800
YVP-112M-6	2.20	960	79.0	0.76	5.57	21.9	2.2	2.1	380	220	2800
YVP-132S-6	3.00	960	81.0	0.76	7.40	29.8	2.2	2.1	380	220	2800
YVP-132M1-6	4.00	960	83.0	0.76	9.63	39.8	2.2	2.1	380	220	2800
YVP-132M2-6	5.50	960	84.0	0.77	12.9	54.7	2.2	2.1	380	220	2800
YVP-160M-6	7.50	970	86.0	0.78	17.0	73.8	1.8	2.1	380	220	2800
YVP-160L-6	11.0	970	87.0	0.79	24.3	108.3	1.9	2.1	380	220	2800
YVP-180L-6	15.0	970	89.0	0.81	31.6	147.7	2.1	2.1	380	220	2800

Company Profile
TLWERK, established by the R&D, production and sales team with more than 10 years of technical experience, is a professional trade company.
We focus on the R&D, technology and sales services of induction motors and motor power source systems, especially for the customized development of products according to the specific application requirements of customers.
The products are produced and tested by our professional motor manufacturers and related motor system manufacturers in the partnership.
The developed three-phase asynchronous motor series are: YS/MS, YL/ML, YE3, YE4, YEJ, YVP and permanent magnet motors.
Our products have got a good domestic market and a good fame in more than 30 provinces and cities in China, and now gradually expand the international market.We have our own experienced R&D team, modern production lines and high-precision testing equipment. The manufacturer strictly implements the ISO9001-2015 quality management system, and all products have been inspected, and have obtained national CCC certification and international CE certification, as well as other relevant international certifications. Our motor products are widely used in different fields such as reducers, hydraulic equipment, lifting equipment, fans, wind power, home appliances, food, clothing, papermaking, packaging, ceramics, printing, chemical industry, animal husbandry machinery, woodworking machinery, agriculture and water conservancy.
Production & Workshop
We adhere to the business philosophy of "Life, based on quality; Trust, based on honesty; Win-win cooperation", and insists on giving back to all customers with high-quality products and comprehensive services!
Certifications
Packaging & Shipping
FAQ
1.How about your MOQ and lead time?
Both MOQ and lead time depends on specific products. Generally speaking, it cost 10-30 days.
2.Can I get sample?
Yes. We offer sample motor.
3.Is customized service available?
OEM & ODM both are available. Please inform us with output power, speed rpm, output torque, using voltage and application range.
4. What is your payment term?
30% T/T in advance, 70% balance before shipment
30% T/T in advance, 70% balance 30 days after BL date by ocean, 15 days after AWB date by air, after a long-term stable cooperation.
5. What about warranty?
One year, during the guarantee period, we will supply freely of the easy damaged parts for the possible problems except for the incorrect operation. After expiration, we supply cost spare parts for alternator maintenance.
6.Why us?
* Professional factory for Electric Motor in China
*Safety / Energy Consumption / Superior Life
* Full of export experiences.
* 100% tested before delivery
* A complete set of motor solutions can be provided.
* Perfect performance, low noise, slight vibration, reliable running, good appearance, small volume, light weight and easy maintenance.
* CE/ISO Approved

Before Sale		After Sale
1	Sample Confirmation	1	Comprehensive service with separate after-sale team
2	Providing information consulting and technical guidance.	2	Satisfied solution while any problem identified.
3	Packaging can be customized.	3	Exclusive and unique solution provided by professional engineers.
4	Reply to your enquiry in 24 working hours.	4	New craft, new technology and other related advisory services.
