Oil Press Machine Oil Extraction Machine Electric Press Machine Squeezer Cooking Oil Making Machine Oil Press Equipment Oil Expeller

Product Description

Product Description

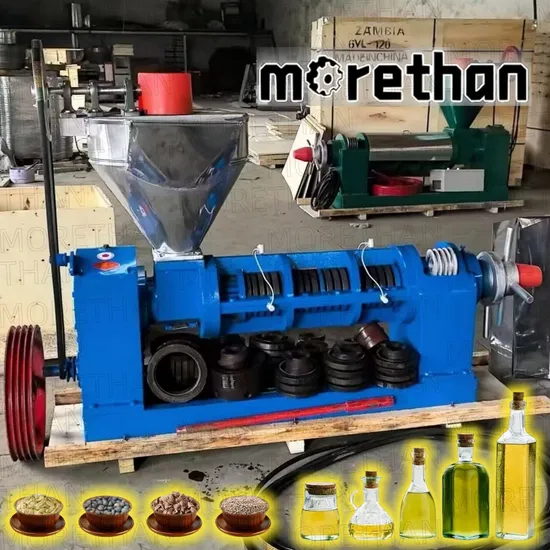

6YL screw oil press is a new type of screw oil press developed by Henan Morethan Machinery Co., Ltd., which improves the performance of the original machine, and at the same time uses a new gearbox to prolong the service life and reduce energy consumption.
Product features:
1. The wearing parts are made of high-quality steel after carburizing heat treatment, which prolongs the service life and reduces the user's use cost and maintenance time.
2. A new large-module helical gear box is adopted, which improves the transmission efficiency and reduces the energy consumption.
3. The lengthened press chamber design prolongs the press time and improves the oil output efficiency.
4. Perfect pre-factory grinding and testing procedures improve the usability of the oil press.

You can choose from different models:

Model	Motor	Capacity	Voltage	Package Size	Weight
6YL-68	5.5kw	40-60kg/h	380V 50Hz, three-phase	90*45*85cm	220kg
6YL-80	7.5kw	80-130kg/h		132*54*102cm	340kg
6YL-95/100	11kw	130-200kg/h		220*55*76cm	630kg
6YL-120-1	15kw	250-350kg/h		240*56*76cm	680kg
6YL-130	18.5kw/22kw	380-500kg/h		198*68*146cm	720kg
6YL-165/160	30kw	700-850kg/h		220*65*90cm/105*83*75cm	1300kg

Remarks: It can be used with motor or diesel engine. Detailed Photos
Working principle of 6YL screw oil press:
Feeding stage: raw materials enter the press chamber from the hopper.
Extrusion stage: the extrusion screw rotates and continuously pushes the blank inward for extrusion. Because the diameter of the screw increases gradually and the pitch decreases gradually, the friction and relative movement of the blank in the pressing chamber are caused, and the pressing effect is enhanced.
Oil squeezing stage: The heat generated in the squeezing process is helpful to promote the change of protein heat in the green body, destroy colloid, increase plasticity, reduce viscosity, and make oil easier to extrude. The squeezed oil flows out from the gap of the press chamber.
Residue treatment: the residual oil residue after pressing is discharged from the press chamber, and can be used as fertilizer after treatment.
Oil yield and dry cake residual oil rate of various raw mterial

raw material	Oil yield(%)	cake thickness(mm)	Dry cake residual oil rate (%)
Domestic soybean	12~17	0.8~1.5	<7
Imported soybean	15~15	0.8~1.5	<7
sesame	44~47	1.0~1.5	<7.5
peanut	35~45	0.8~2	<7.5
vegetable seed	30~38	1.0~1.5	<7.5
sunflower	42~45	1.2~1.5	<7.5
cottonseed	10~14 cold press	1.2~1.6	<9
Palm shell	16~20	0.7~1.0	<8
pepper seeds	21~35	1.3~1.4	<9
flax	33~40	0.8~1.5	<7
coconut	60		6~8
corn germ	30~40		6~8
tea seeds	14~27
Walnut	23.8

Wearing Parts:
Factory show
Henan Morethan Machinery Co., Ltd. is a professional manufacturer of grain and oil machinery and equipment. The company's leading product, 6YL series screw oil press, has more than 20 varieties, with high market share, customers all over the world, and more importantly, 70% of the customers are introduced by old customers. More than 300 foreign small and medium-sized oil plants have been provided with oil presses and design schemes.
Packaging & Shipping
Certifications
Foreign Trade Department
FAQ
Q: Are you a factory or trading company ?
A: We are factory with 20 year's manufacturing experiences, and we also have our own trading company . our main products including :screw oil press, seeds roaster, oil filter, oil refinery machine and spare parts etc.
Q: How can we verify that you are a factory ?
A: You can add our contact information and we will show our factory to you online.
Q: If i don't know how to operate this machine ? How can i do ?
A: Our machine has been tested ok and make 2-4hours wear-in and then can work.
Q: What's wear-in for new machine?
A: Using 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
1. 1st hour, adjust oil cake thickness as 3mm.
2. 2nd hour, adjust oil cake thickness as 2.5mm.
3. 3rd hour, adjust oil cake thickness as2 mm.
Q:What are cold press and hot press?
A: Cold press is pressing dry and raw seeds. usually need to press 2 tims to get maximum oil.
Hot press is pressing roasted seeds. usually only 1 time to get maximum oil. peanuts roast to 125~130 degree with 1~2% moisture. (we produce seeds roaster heated by economical fuel.)
Q:What serivice do you provide?
A: (1) 1year free warranty, whole lifetime maintenance.
(2) Supplying wearing parts all year around.
(3) Supplying technical solutions at any time.
(4) Helping design and plan the oil plants construction.
(5) Providing installation video.
(6) Developing agents with good policies around world.
Q: How can i become a distributor of Henan Morethan?
A: Contact us immediately for further details by sending us an inquiry.
We will appreciated if these following 2 tips contained in your inquiry.
Tips1.The raw material is:_______
Tips2.The capacity of the machine you need is:______
Thank you and looking forward to your inquiry,we will response immediately.
Make order right now! And why?
One of our clients called us for buying wearing parts and he told us that his machine bought from us in 2001s. Its really! So, don't worry about the quality. Its beter than your think!
