Best Seller Laser Heat Treatment Robotic Laser Cladding Equipment for New Energy

Product Description

Best Seller Wholesale Laser Heat Treatment Robotic Laser Cladding Equipment For New Energy
What is Laser Cladding?
Laser cladding is a new surface modification technology. It forms a metallurgical bond on the surface of the base by adding cladding material on the surface of the base material and using a high energy density laser beam to melt it together with the thin layer on the surface of the base material. Adding cladding layer.
Features of Laser Cladding
The cladding layer is metallurgically combined with the matrix, which can significantly improve the wear resistance, corrosion resistance, heat resistance, oxidation resistance or electrical properties of the surface of the matrix material, so as to achieve the purpose of surface modification or repair, and meet the specific performance requirements of the material surface. At the same time, it can save a lot of material costs.
Advantages of Laser Cladding:
1. Wear-resistant and corrosion-resistant. It can cladding a layer of corrosion-resistant, wear-resistant and high-performance alloy layer on the surface of ordinary carbon steel workpieces to improve the service life of the workpiece.
2 High cladding quality. Small deformation, good mechanical repeatability, dense interface structure, small grain, no holes, no inclusion cracks and other defects
3. Local fine cladding on the surface of the workpiece can be achieved.
4. The powder material system has high adaptability, and most conventional and special metal powder materials can be cladded to the surface of metal parts.

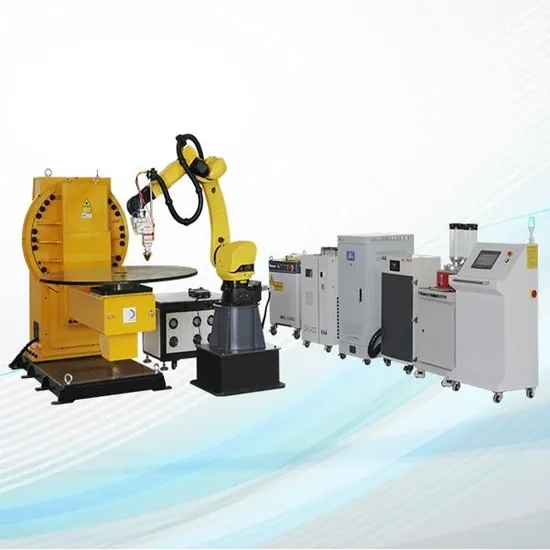

Main Components
Application
Product Parameters

Content	Parameters
Laser	0.5-20kW, fiber, semiconductor, disc, etc.
Robot	Holding weight 16- 150kg, wingspan 1600-3700mm, KUKA, ABB, FANUC, YASKAWA, etc.
Laser Processing Head	0.8-50mm round, square spot, size can be customized, coaxial, paraxonic powder feeder
Powder Feeder	Airborne, gravity conveying, powder feeding accuracy≤±2%,powder feeding amount 10-150g/min, single unit, double units
Cooling-water Machine	Single temperature, dual temperature, cooling capacity according to laser selection
Optional Accessories	Inner hole cladding head, temperature closed loop, on-ine detection, distance detection,ofline programming, molten poolmonitoring, etc.
Input Voltage	360-480V Three- Phase Five-Wire System @50 60Hz
Main Component	Laser, cooling unit, powder feeding mechanism, processing table, etc.
Laser se lection	CO2 laser, solid state laser, fiber laser, semiconductor laser
