High Quality Annular Cutter Magnetic Drill Machine

Product Description

Product Description 1. Magnetic drill is suitable for all kinds of complex environment, especially suitable for:nuclear
power, shipbuilding, bridge, construction machinery, machinery, mechanical equipment installation,
steel structure engineering, railway and subway construction, large equipment repair, power plant,
electric power construction, repair, and field construction management engineering and so on.
2. Convenient and small, and can reducing work force and improve the machining accuracy and efficiency.

SPECIFICATION

Specification	Items
	B13	B16	B23	B28
Rated voltage	110V/220V	110V/220V	110V/220V	110V/220V
Rated frequency	50/60HZ	50/60HZ	50/60HZ	50/60HZ
Motor input power	1150W	1380W	1400W	1680W
Twist drill	13mm	16mm	23mm	28mm
Non-load speed	800r/min	670r/min	470r/min	340r/min
Max attraction	11000N	11500N	16500N	17800N
Depth of drilling	30mm	30mm	40mm	50mm
Rated axis taper			MT2	MT3
N.W.	10kg	11kg	18kg	18.5kg
Paper carton packing size	35x15x34cm	35x15x34cm	45x17x35cm	45x17x35cm

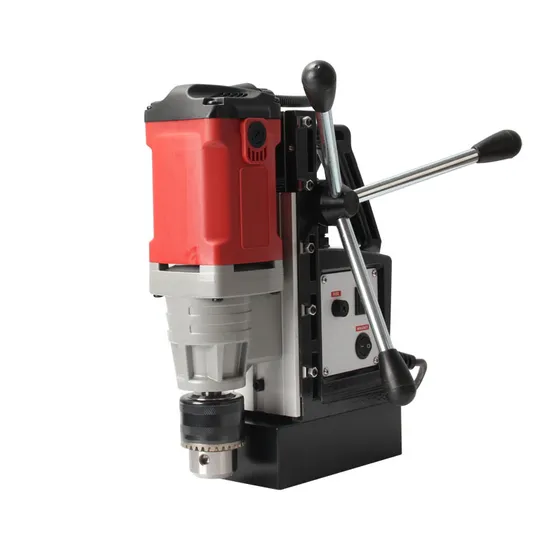

MR-OB13
Portable Magnetic Drill
More than10 YEAR BENCHMARKING PRODUCTS WITH A GREAT REPUTATION
INSISTING ON ORIGINAL DESIGN FROM CHINA
Strong drilling capacity and high efficiency
Strong adhesion and reliable safety
Magnetic bottom wear design, which delays the wear of magnet bottom and extend service life.
Magnetic base with maximum adhesion up to 10000N ensures the safety and reliability during
drilling operations.

Packaging & Shipping
EXPORTING PACKAGE, SAFE AND STABLE
Company Information
MRCM is a manufacturer specialized in developing and producing small special-purpose tool grinders, precision machinery
tools. It is a high-tech enterprise which includes research and development; design; production; sale; and after-sale service. In the past many years, we've been committed to research, develop and produce the grinding tools. We've been
started from the portable drill bit sharpener and continuously developed to the current four-axis and six-axis CNC tool grinding machine. The CNC machine with different functions to meet the market requirements, effectively improve
the working life of tools and reduce production costs.
Main products include: CNC tool grinder, drill bit sharpener, end mill sharpener, screw tap sharpener, lathe tool grinder,
saw blade sharpener, universal cutter grinder, universal tool grinder, chamfer, tapping machine, vise, sucker, zero
positioning, and so on.
Engaged in international marketing, participated in international exhibitions, such as EMO Hannover, cooperated with the
domestic and foreign companies. We've passed the CE, ISO 9001 certification, have been applied for over 70 national
patents, sold product to 60 countries and regions, 80% of exporting products are sold to developed countries such as
Japan, Europe countries and so on.
