Vertical Milling with Swivel Head Universal Milling Machine Price X6432
Basic Info.
Model NO.
X6432
Type
Universal
Object
Metal
Structure
Knee Type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Program Control
Automatic Grade
Semiautomatic
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Table Size
1320X320mm
Table Travel
1000X300X440mm
Spindle Taper
ISO40
Table Feed
20-360/20-360/422mm/Min
Arm Travel
4600mm
Distance From Spindel to Table
200-640
Horizontal Speed
38-1310rpm
Vertical Speed
45-1160rpm
Motor
3kw
T Slot
5X14X63mm
Transport Package
Ply Wooden Case
Specification
1600X360MM
Trademark
uni-tech
Origin
China
HS Code
84595900
Production Capacity
100sets/Month
Product Description
Vertical milling with swivel head Universal milling machine price X6432 SPECIFICATIONSuniversal swivel head milling machine specification:
| Model | unit | X6432 |
| TABLE | ||
| Table size | mm | 1320x320 |
| T slot | no | 5 |
| Size ( Width ) | mm | 14 |
| Centre distance | mm | 63 |
| Max. load of Table | kg | 300 |
| swivel of table | degree | ― |
| machining range | ||
| table Longitudinal travel(manual/auto) | mm | 1000 |
| table Cross travel (manual/auto) | mm | 300 |
| table Vertical travel(manual/auto) | mm | 440 |
| MAIN SPINDLE | ||
| Spindle taper | ISO40 | |
| spindle speed /step -- Vertical | rpm | 45--1660/11steps |
| --Horizontal | rpm | 38-1310/12steps |
| Max.end milling width | mm | 125 |
| Max. vertical milling Dia. | mm | 25 |
| swivel angle of swivel head | degree | 360º |
| vertical spindle axis to column surface | mm | 200-760 |
| vertical spindle nose to table surface | mm | 200-640 |
| horizontal spindle axis to table surface | mm | 30-450 |
| horizontal spindle axis to arm bottom | mm | 175 |
| Ram travel | mm | 460 |
| FEEDS | ||
| Longitudinal/cross feed | mm / min | 20-360/8steps |
| Vertical/step | mm/min | 422/1step |
| Longitudinal/cross rapid speed | mm / min | 1200 |
| Rapid Traverse vertical | mm/min | 422/1step |
| POWER | ||
| main motor | kw | 3 |
| (X/Y/Z) feed motor | kw | 0.55(X/Y), 0.75(Z) |
| coolant motor | kw | 0.04 |
| others | ||
| package dimension | cm | 170X207X225 |
| 226X187X228 | ||
| overall dimension | cm | 202X171X200 |
| N/W,G/W | kg | 2100/2300 |
universal swivel head milling machine accessories:
| No. | Name | Model | Qty |
| 1 | Machine | 1 | |
| 2 | Milling chuck | 1 set | |
| 3 | Inner hexagon spanner | 1 | |
| 4 | wrench | 1 | |
| 6 | Draw bar | 2 | |
| 7 | Horizontal milling arbor | Φ27 , Φ40 | 2 sets |
| 8 | End milling arbor | Φ32 | 1 |
| 9 | Operation manual | 1 | |
| 10 | Accuracy test list | 1 | |
| 11 | Packing list | 1 |
Optional accessories
rotary table
3 axis DRO
Schneider electric
spindle cover
table cover
slotting head
vice
dividing head Detailed Photos

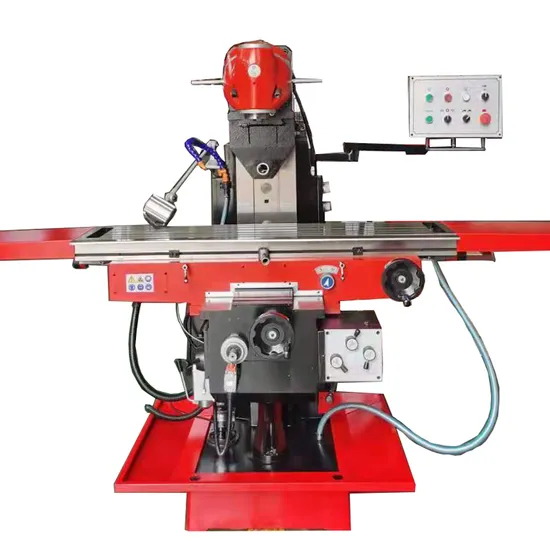

universal swivel head milling machine more photos:
If you are interested in universal swivel head milling machine , pls contact
TENGZHOU UNI-TECH CO.,LTD
