P3 Cup Mask Making Machine Fully Automatic Ultrasonic Mask Making Machine Disposable N95 Fold Face Mask Machine

Product Description

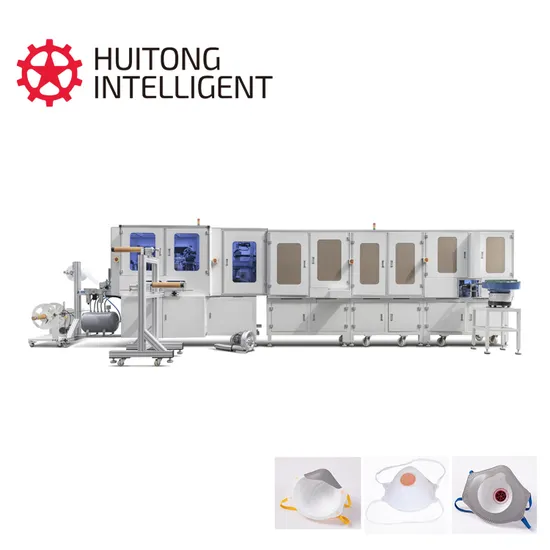

Automatic Cup Mask Machine (P3 TYPE)
Automatic Cup Mask Production Line with Advanced Plastic Type Transfer System for Maximum Efficiency This machine is fully automated production from raw materials to finished products: outer cotton, middle meltblown cloth, inner cotton shaping and cup melt cutting, mask nose bridge strip, pad printing, automatic spot welding of elastic band, automatic sticking of sponge strips, breathing valve punching, automatic welding valve, fully automated production of cup masks
Ready to embark on a lucrative venture in cup mask production? Discover the essential machinery you need to succeed!
Features:
1.This cup shaped mask making machine adopts PLC, touch screen control, main conveyor belt adopts imported servo motor transmission, accurate transmission, stable control, adjustable speed.
2.The whole line is fully automated, with a production speed of 15-25PCS per minute, and can be produced without shutdown during feeding.
3.Melt spray can be cold pressed, the product quality can reach FFP3 grade
4.Automatic paste sponge strip, accurate and beautiful position.
5.The equipment is easy to maintain, modular design, can be quickly spliced, to achieve rapid production.
6.The equipment size is small, 6500×1200×2000 mmcovers less area, convenient for air transportation.
7.Each module can be used separately, free combination
8.the processing workpiece aluminum alloy hard oxygen processing, the frame adopts cast iron welding, baking paint, beautiful, solid and not rust.
9.PLC(Mitsubishi PLC) programming control, high stability, low failure rate, less noise.
10.Adopt imported servo motor, imported pneumatic components, high precision.
11.The material size is small, photoelectric detection of raw materials, avoid mistakes and reduce waste.
12.The machine adopts pulley and fixed foot, which is convenient and fast to move, strong and fixed, and does not waver.
Technical Parameters :

Model No.	HT-KBL02
Speed	15-25 pcs/min
Output Power	21kw
Power Supply	Ac380v 50/60hz
Air Pressure	0.6-0.8 mpa
Weight	3700 kg
Dimensions	9000× 2700× 2100 mm
