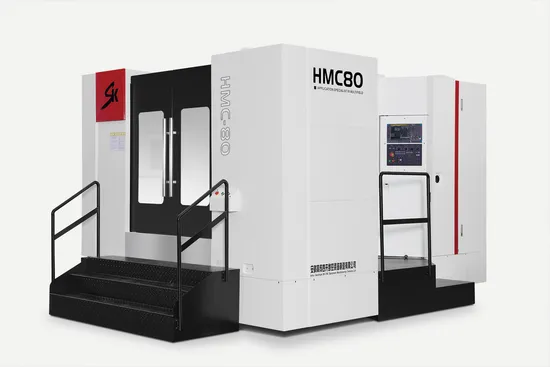

Horizontal CNC Milling Machine Hmc80 with 30 Arm Type Tool Magazine CNC Machine Tool for Turning, Milling and Metalworking with Optional System Metal Process

Product Description

1.High Precision Fanuc CNC Horizontal Machining Center Product Description
1.1 DESCRIPTION
FEATURE

1.2 FEATURE

Classic column moving structure, the overall base is rigid enough, oil-water separation structure. The side layout of the manipulator tool magazine is isolated and protected, and the tool change is fast and reliable. The X-direction guide cover has a large inclination angle, double-sided spiral + chain rear chip removal, and the chip removal is smoother. Three-axis heavy-duty roller linear guide, good acceleration performance, suitable for high-efficiency processing. Spindle configuration with high rigidity, wide-area high-torque spindle motor, strong re-cutting capability. Full-featured, flexible configuration, convenient expansion, to meet different customer requirements. Fully servo-driven dual-pallet exchange device, the movement is smoother and more stable.
1.3 PARAMETERS

Specification	Unit	HMC50	HMC63	HMC80	HMC100	HMC125
X/Y/Z axis	mm	660/580/620	1050/750/900	1300/1000/1000	1600/1000/1400	2000x1300x1400
Distance from spindle end to workbench centre	mm	130-750	150-1050	200-1200	250-1650	350-1750
Distance from spindle centre to workbench surface	mm	100-680	100-850	120-1120	120-1120	120-1420
Workbench size(L*W)	mm	500x500	630×630	800x800	1000x1000	1250x1250
Max. workbench load	Kg	700	1200	2000	2200	3500
Workbench divisions	mm	1°/0.001°	1°/0.001°	1°/0.001°	1°/0.001°	1°/0.001°
Max. workpiece turning diameter on workbench	mm	800	1400	2000	2200	2600
T-slot(number - width -spacing)	Mm	5-18-100	5-22-125	5-22-160	5-22-200	7-22-160
Spindle tapered bore (type / installed size)	mm	BT40	BT50	BT50	BT50	BT50
Spindle speed	rpm	8000	6000	6000	6000	60000
X/Y/Z axis rapid feed	m/min	34/34/34	30/30/30	24/24/24	24/24/24	18/18/18
Maximum cutting feed	mm/min	10000	10000	10000	10000	10000
Tool change method		Knife arm type	Knife arm type	Knife arm type	Knife arm type	Knife arm type
Toolholder specifications	type	BT40	BT50	BT50	BT50	BT50
Tool capacity	tools	24 Disc-type	30 Disc-type	30 Disc-type	30 Disc-type	30 Disc-type
Max tool length	-	Φ80	Φ115	Φ115	Φ115	Φ115
Max tool dia	mm	300	350	350	350	350
Max. tool weight	kg	8	18	18	18	18
Fastest tool change time (T-T)	sec	2.5	5	5	5	5
Spindle motor	kw	11/15	15/18.5	15/18.5	15/18.5	15/18.5
XYZ Positioning accuracy	mm	0.008	0.008	0.008	0.01/0.01/0.008	0.012/0.08/0.08
XYZ Repositioning accuracy	mm	0.005	0.005	0.005	0.008/0.008/0.005	0.006/0.005/0.005
Worktable Positioning accuracy 1°/0.001°	mm	5"(8")	5"(8")	5"(8")	5"(8")	5"(8")
Worktable Repositioning accuracy 1°/0.001°	mm	3"(5")	3"(5")	3"(5")	3"(5")	3"(5")
Machine size:L*W*H	mm	2600x3300x2600	3400/5300×2900	4500x6000×4000	4900x6500x4000	6000x7000x4500
Machine.Weight approx.	t	8	12.5	16.5	20	27

1.4 STANDARD ACCESSORIES

1	30 tool magazines	6	Tri-color warning light	11	Rigid tapping	16	Portable chip blowing air gun
2	Workpiece Cooling System Spindle cooling	7	Machine cleaning water gun	12	Fully enclosed protective cover	17	Large flow chip flushing device
3	Automatic lubrication system	8	Spindle output water	13	Foundation screws and pads	18	Spindle nose labyrinth dust blower
4	Spindle air curtain dustproof system	9	Electric cabinet heat exchanger	14	Tools and Toolboxes	19	Oil filter
5	Working light	10	Network transmission and CF card function	15	Double helix cutter and chain plate cutter	20	Transformer
