Ck61125 Heavy Duty Automatic Fanuc Flat Bed Turning Center Lathe

Product Description

Product Description
Product Parameters

ITEMS	UNIT	CK61125
Swing over bed	mm	Φ1250
Swing over cross slide	mm	Φ850
Distance between centers	mm	1000/1500/3000/5000/6000
Width of bed way	mm	755
Max. load capacity	T	6
Spindle bore	mm	Φ130
Spindle bore taper	-	MetricΦ140, MT#6
Spindle nose type	-	A2-15
Spindle speed steps	-	VF.4steps
Spindle speed range	rpm	4-300
Chuck size	mm	Φ1000
Chuck type	-	4-jaw manual
Turret type	-	NC turret 4 position
Tool shank size	mm	40x40
X axis travel	mm	620
Z axis travel	mm	1000/1500/3000/4750/6000
X axis rapid traverse speed	mm/min	4000
Z axis rapid traverse speed	mm/min	6000
Tailstock quill diameter	mm	Φ160
Tailstock quill taper	-	MT#6
Tailstock quill travel	mm	300
Main spindle motor	kW	VF.22
Coolant pump motor	kW	0.25
Width x Height	mm	2250x2300
Length	mm	4500/5000/6500/8500/9500
Net weight	T	10.8/11.2/12.6/14.2/15.2

Detailed Photos

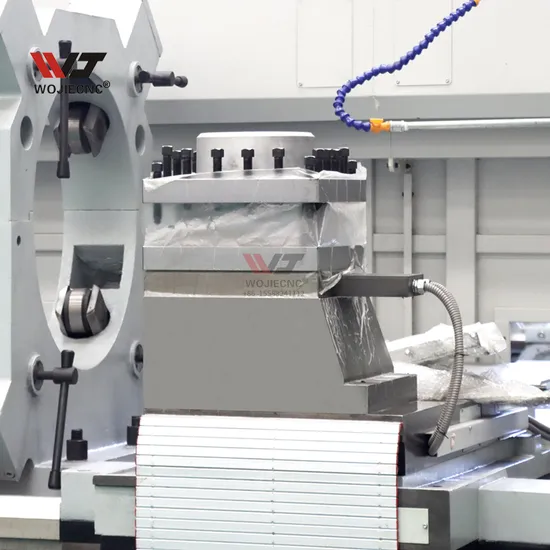

ChuckΦ1000/4-jaw manual	NC turret 4 position
Control system Standard configuration: GSK Optional configuration: Siemens/ Fanuc/ Syntec/ Mitsubisin	Manual tailstock
Centre rest 150-450mm (3 meters and above including 3 meters standard configuration)	Lubrication system The centralized lubrication system can be used in a timely,quantitative,convenient is conductive to increasing the service life of the machine tool.

Optional accessory

Auto chip conveyor and chip bucket	8-station turret	Oil Mist Collection
SERVO automatic feeder	Electric cabinet air conditioner	Oil-water separation (Oil skimmer)

Company Profile
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months
FAQ
1. What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight.
After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.
2. What does your company mainly produce?
A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc.
3. When is the delivery time?
A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details.
4. What are your trade terms?
A: FOB, CFR, CIF, DDP, DAP, FCA, etc.
5. What is your minimum order quantity and warranty period?
A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine.
6. What is the packaging of the machine?
A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.
