Small Animal Poultry Feed Plant Production Line

Product Description

small animal poultry feed plant production line
1. animal feed machine introduction
Animal feed pellet line is a complete set of machines that are specifically used to make feed pellets.
The machine group generally including the following process: raw materials receiving and cleaning process, crushing process, mixing process, pellet making process, pellet cooling process, (pellet crumbling process), sifting process and packaging process.

The animal feed machine is one of the key machines in feed pellet production line. It's die mold is made of stainless steel or alloy steel for your choice. It has the characteristics of low cost, reasonable structure, compact layout, reliable performance and easy maintenance

SZLH420 feed pellet making machine is widely used to produce pellets for animals,such as carp, chicken, pig, horse, cattle and other poultry and livestock animal. The pellets by our machine have firm and smooth structure and easy digest.Since now our machines have exported to Mali, Zambia, South Korea, Russia, Oman, Thailand, Bangladesh and so on.Some customers bought a single machine, and most customers bought a production line to found a feed making factory.

2. animal feed pellet machine features:
- America CPM model,high precision gear driven .
- Stainless steel material,frequency feeding speed control.
- Siemens Motor,Switzerland SKF bearing
- High efficiency,low noise working

♦ animal feed machine application
a. Widely used in large, medium and small aquaculture, grain feed factory, livestock farm, poultry farm, individual farmers, small and medium sized farms, as well as feed manufacturer plant.
Advantages

3. animal feed pellet machine features and advantages

1). Driven by variable frequency motor, the feeder can be adjusted automatically within a certain scope according to the production;
2). The interlock device, outer machine discharging device and over-load protection device work together to ensure the safety and reliability;
3). Magnetic separation and removal mechanisms are configured to prevent the iron impurities from entering into the suppression of granulation chamber.
4). The cooking time and result are highly improved by the extended stainless steel feeding conditioner with the axial inlet steam.
5). The circulating lubrication oil system is specially designed to ensure the bearings in good condition.
6). The ordinary conditioner, thermal insulation conditioner or double-shaft differential conditioner are options according to your requirements.

Technical Parameters

4. animal feed making machine technical parameters

No.	Items	SZLH350	SZLH420
1	Production Capacity(t/h)	5t	10t
2	Power of Main Motor(kw)	55	110
3	Power of Feeding Screw Motor(kw)	0.75	1.5
4	Power of conditioner Motor(kw)	2.2	5.5
5	Diameter of ring die(mm)	Φ350	Φ420
10	Amount of roller	2	2
18	Steam consumption(t/h)	≥0.3	0.5
19	Temperature of steam(ºC)	130-150	130-150
20	Shape dimension(mm)	2235*1010*2445	3100*1250*3000
21	Machine weight(kg)	2200	3000
22	Voltage	3phase 380V,50Hz	3phase 380V,50Hz
23	Control cabinet	Included	Included
Contact us for full detail parameters and price

Main accessories of animal feed making machine

Spare part	Brand Name
Electric motor	SIEMENS (Germany)
Level detector	Autonics (Korea)
Crusher Bear (Jiangsu China)ring	NSK(Japan)
Pellet machine bearing	SKF(Switzerland)
IPC(industrial personal computer)	ADVANTECH Industrial Controlled Computer (Taiwan)
position switches	Omron (Japan)
Reduction box	Itc cathay Pacific (Jiangsu China)

Detailed Images

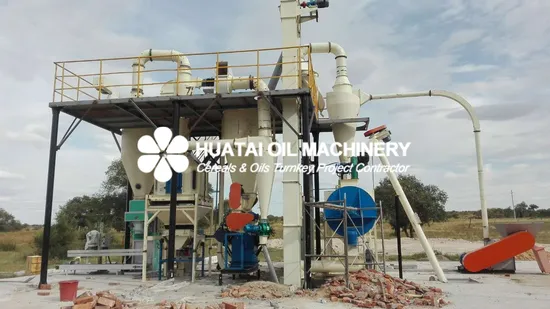

5. animal feed making machine some pictures

Drawings of the feed pellet production line
Packaging & Shipping
Packing condition for animal feed making machine
♥Wooden or metal case according to specific size of each equipment, we twine thick plastic coating for each machine.
♥Tight the equipment in the truck without space to ensure no rubbing during the transportation.

WHY CHOOSE US
THE REASONS WHY YOU CHOOSE OUR COMPANY
ONE: Pursue the highest level of Feed Processing Machinery in China,encourage customer to inspect machineries by caliper and calculator. Select Siemens Motor,Choose Swedish SKF Bearing.
TWO: Transform factory into university,build the most professional training & trusteeship team in Chinese feed industry,Ensuring that Strongwin Machinery can be running in a healthy condition by remote supervisory control and nanny trusteeship service.
THREE: Material thickness of main equipment is more than feed machinery standard 2mm,you can weigh and contrast -- Please pick up the caliper and calculator to inspect.

The feed pelletizing solutions feature great flexibility. According to different feed types, different output configuration can be customized.
