Module spare parts T8160

Product Details

Product Description

Product Description
Focus on DCS, PLC, robot control system and large servo system.
Main products: various modules / cards, controllers, touch screens, servo drivers.
Advantages: supply of imported original products, professional production parts,
Fast delivery, accurate delivery time,
The main brands include ABB Bailey, Ge / fuanc, Foxboro, Invensys Triconex, Bently, A-B Rockwell, Emerson, ovation, Motorola, xyvom, Honeywell, Rexroth, KUKA, Ni, Deif, Yokogawa, Woodward, Ryan, Schneider, Yaskawa, Moog, prosoft and other brands

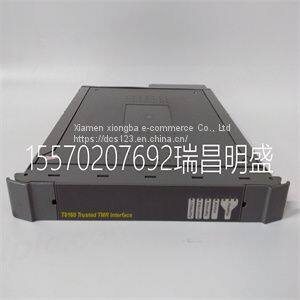

T8160

Discrete Output Channel Specifications Item Specifications Number of Channels 16 Isolation Each channel is optically isolated from the system and factory-tested to 1500 V DC. No channel-to-channel isolation. Output Voltage Field power minus 2 V Field Power 0.5 A continuous per channel; 4.0 A max. per card Output Loading 56 to 3500 Ω Off-State Leakage Open loop test on: 7.8 mA Open loop test off: 4.5 μA typical; 10 μA max. Note: Optional pulse test will apply 24 V DC pulse on line for 1.0 mS every 50 mS. Refer to the Installation Notes for more information on pulse testing. Short Circuit Protection Outputs current limited to 2.0 A typical Line Fault Detection – Short Circuit 1 second with +24 V DC field power. Refer to the Installation Notes for information on pulse testing. Line Fault Detection – Open Circuit (With +24 V Dc Field Power) >25 kΩ for open loop detection <3.5 kΩ for no open loop detection Refer to the Installation Notes for information on pulse testing. Pulse testing is recommended; however, it can be disabled for field devices such as solid state relays that cannot support it. Wiring diagram and terminations for discrete output channels. February 2021 Contact Us www.emerson.com/contactus ©2021, Emerson. All rights reserved. The Emerson logo is a trademark and service mark of Emerson Electric Co. The DeltaV logo is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners. The contents of this publication are presented for informational purposes only, and while diligent efforts were made to ensure their accuracy, they are not to be construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or applicability. All sales are governed by our terms and conditions, which are available on request. We reserve the right to modify or improve the designs or specifications of our products at any time without notice. DeltaV SIS Logic Solver Ordering Information Description Model Number DeltaV SLS 1508 Redundant Logic Solver – includes Terminal Block VS3202 1-wide SIS Net Terminator Assembly (right-hand extender card and two termination resistors) VS6051 Database Extension for SIS VS1508 8-Wide Carrier with Extend Cable Assembly (Cable Assembly consists of left & right extender cards, 2 coax cables for Logic Solver communications bus and one cable for carrier backplane communications) VE4050E1C2 2-Wide Carrier (New modified 2-wide carrier containing bus terminations) VE3051C0 Related Products „ DeltaV Workstations and Server Hardware „ DeltaV M-Series Traditional I/O „ DeltaV SIS Hardware Carriers „ DeltaV M-Series I/O Subsystem Horizontal Carriers „ DeltaV VerticalPlus I/O Subsystem Carrier „ DeltaV PK Controller „ DeltaV SIS with Electronic Marshalling Prerequisites „ DeltaV v8.3 software or later. „ The 2-wide power/controller carriers were upgraded in 2004 to accommodate the DeltaV SIS system. The new version of the 2-wide power/controller carrier has a small white rectangle printed on the board. This is visible between the power supply module and the MD Controller. The new part number is KJ4001X1-BA3 or higher. The old version had a white dot in place of the rectangle. The old version (with white dot) will not support downloads to a Logic Solver. „ The earliest MD Controllers will not support the DeltaV SIS system. The MD controllers must have a part number 12P2093X082 or higher.
