Nadun CNC Engraving Machine Vertical Lathe

Product Description

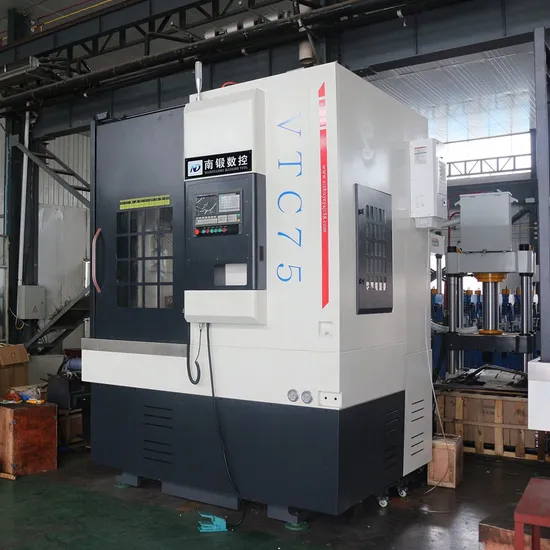

Nadun VTC75 High-Precision Vertical Turning Lathe and Boring Mill with Advanced CNC Technology and Precision Machining Capabilities
Product Description
This CNC Vertical Lathe features:
1. System: Guangshu system TC3 (junior) TDI (standard) 988TD (advanced)
2. Large cutting volume: can be tested with 45# steel plate
3. Chuck load-bearing: 6T
4. Accuracy: Parallelism within 1 wire
5. The whole machine: solid base design, the whole machine weighs about 10T
6. Line rail: Shangyin (P level, high precision), Yintai
7. Lead screw: Shangyin (C3 grade) Taiwanese brand
8. Spindle: Brand spindle NSK (original factory in Japan) and Renowned Swedish Brand
9. Renowned French brand Electric brand appliances
10. Main motor: 18.5KW Feed motor 75: X axis 22NM Z axis 22NM VTC65: Z axis 30NM X axis 18NM
11. The tool turret (Taiwan's well-known brands Maikun and Liuxin) has a horizontal 8-station, horizontal multi-station CNC tool holder, short tool changing time and high work efficiency. The 8-station turret can be clamped at one time to make the process simpler.
12. The pressure gauge controls the hydraulic cylinder and turret, making it easy to observe the pressure of the chuck.
13. Air conditioning and refrigeration are used to cool down the electrical box when it is hot, and the electrical box is sealed to prevent dust.
14. The split design of the valve group and hydraulic system makes installation and maintenance easier and more user-friendly.
15. The nitrogen balance cylinder has strong stability and high intelligence. The X- and Z-direction feed motors have high power and fast walking speed.
Detailed Photos
Product Parameters

Project	Specification	Unit	VT45	VT65	VT75
Machining Capacity	Max. Turning Diameter	mm	∮560	∮650	∮750
	Max. Cutting Diameter	mm	∮450	∮600	∮700
Spindle	Spindle Face Type		Straight	Straight	Straight
	Spindle Speed	rpm	100-2000	100-1000	100-1000
	Chuck Diameter	mm	500	500	610
Tool Magazine	Tool Capacity	pc	Horizontal 8	Horizontal 8	Horizontal 8
Travel	X-Axis Travel	mm	400	420	700
	Z-Axis Travel	mm	500	500	700
Hydraulic Unit	Oil Tank Capacity	L	40	40	40
	Hydraulic Motor Power	kW	2	2	2
Motor	Spindle Servo Motor Power	kW	15	19	22
Accuracy	Repeated Positioning	mm	±0.008	±0.005	±0.005
	Positioning Accuracy	mm	±0.008	±0.008	±0.008
Machine Dimensions	Length * Width * Height	mm	2200*2300*2600	2150*2210*2970	2700*2100*3200
	Weight (with Accessories)	kg	5000	7000	9500
Power Requirements	Power Supply	3¢-AC 380V 50HZ±5%
	Leakage protection, power failure protection	√
	Three-color indicator for machine status	√
	Long-term stable operation under the following conditions	Ambient temperature 5~38°
		Ambient humidity<85%
	Machine noise meets national standards	√
