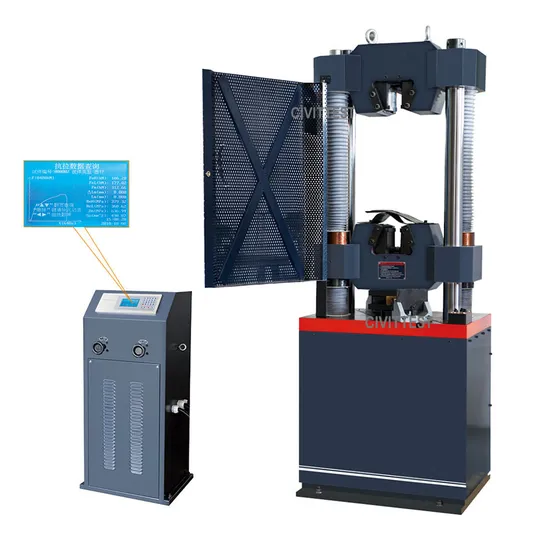

Digital Display Steel Tensile Six Column Hydraulic Universal Testing Machine

Product Description

Digital Display Steel Tensile Six column Hydraulic Universal testing Machine Product Description I. Use
It used to test the tensile strength, bending degree and maximum strength of metal materials ,etc
II. Standard
ASTM D1559
Product Parameters

Capacity	1000KN
Precision	class one
Load measuring range	2%-100%FS
Loading accuracy	1%
Loading resolution	0.01KN
Displacement accuracy	1%
Piston moving speed	0-70mm/min
Piston stroke	200/250mm
Beam moving speed	0-270mm/min
Effective tensile span	0-550/600/700mm
Effective compression span	0-450/470/500min

Round specimen clamp	0-32/13-40/20-60mm
Flat specimen clamp	0-15/30/40mm
Clamp width of flat specimen	75mm
Size of compression plate	205mm x 205mm
Bending stick distance	350/500mm
Bending stick width	120mm
Bending degree allowance	150mm
Oil pump power	1.5Kw
Beam moving motor	0.5Kw
Displacement testing device	Staff
Overload protection	2-5%
Weight	2000/2800/3000Kgs

Detailed Photos

Certifications
IV. Company Product
1. Drying, weighing and Grading Equipment and tools.
2. Soil, Rock Testing Equipment.
3. Aggregate Testing Equipment.
4. Concrete Testing equipment.
5. Cement and Mortar Testing Equipment.
6. Asphalt Bitumen Testing Equipment.
7. Steel Testing Equipment.
8. Survey Instrument and Detector.
9. General Lab Equipment and Tools.
10. Scientific Lab Equipment and Tools.
V. Our services
1. Production:
Our factory choose high quality material include steel, stainless steel, circuit board, motor, etc. By strict and efficient production and inspection, products are in high quality and possible low cost.
2. Shipment:
We use 9mm and 15mm thick plywood as packing, heavy machine will be packed in high strength to keep it intact during shipment. We ship goods out from company in shortest time and book fast ship to make sure customer can get goods quickly.
3. After sales:
After shipment, we will delivery shipping documents to customer correctly and quickly. Supply one year warranty for all machines, after one year, we will still supply quick and effective after sales solution.
