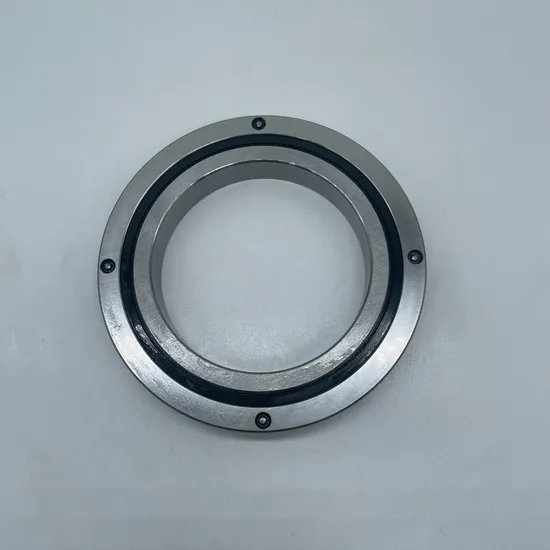

P5 P4 P2 High Precision High Rigidity Robot Joint Urq Cross Roller Bearing

Product Description

RB series(ZGOTr ring division type,inner ring rotation)

Bearing Type	Dimension					Shoulder Size		3asic Load rating(radial )		weight
	ner[	GOTrDia	Roller Pitch Diameter	Height	Chamfer			Cr	Cor
	d	D	Dpw	B B1	rmin	ds	Dh	KN	KN	kg
BB 2008	20	36	27	8	0.5	23.5	30.5	3.23	3.1	0.04
RB 2508	25	41	32	8	0.5	28.5	35.5	3.63	3.83	0.05
RB 3010	30	55	41.5	10	0.6	37	47	7.35	8.36	0.12
RB 3510	35	60	46.5	10	0.6	41	51.5	7.64	9.12	0.13
RB4010	40	65	51.5	10	0.6	47.5	57.5	8.33	10.6	0.16
RB 4510	45	70	56.5	10	0.6	51	61.5	8.62	11.3	0.17
RB 5013	50	80	64	13	0.6	57.4	72	16.7	20.9	0.27
RB 6013	60	90	74	13	0.6	68	82	18	24.3	0.3
DB7013	70	100	84	13	0.6	78	92	19.4	27.7	0.35
RB 8016	80	120	98	16	0.6	91	111	30.1	42.1	0.7
RB 9016	90	130	108	16	1	98	118	31.4	45.3	0.75
RB10016	100	140	119.3	16		109	129	31.7	48.6	0.83
RB10020	100	150	123	20		113	133	33.1	50.9	145
RB11012	110	135	121.8	12	0.6	117	127	12.5	24.1	0.4
RB11015	110	145	126.5	15	0.6	122	136	23.7	41.5	0.75
RB11020	110	160	133	20	1	120	143	34	54	1.56
RB 12016	120	150	134.2	16	0.6	127	141	24.2	43.2	0.72
RB12025	120	180	148.7	25	1.5	133	164	66.9	100	2.62
RB 13015	130	160	144.5	15	0.6	137	152	25	46.7	0.72
RB 13025	130	190	158	25	1.5	143	174	69.5	107	2.82

Bearing Type	Dimension					Size		(		weight
		iO TrlDiar	Roller Pitch Diamete	Height	Chamfer			Cr	Cor
	d	D	Dpw	B B1	rmin	ds	Dh	KN	KN	kg
BB 14016	140	175	154.8	16		147	162	25.9	50.1
RB 14025	140	200	168	25	1.5	154	185	74.8	121	2.96
RB 15013	150	180	164	13	0.6	157	172	27	53.6	0.68
RB 15025	150	210	178	25	1.5	164	194	76.8	128	3.16
RB 15030	150	230	188	30	1.5	173	211	100	156	5.3
RB 16025	160	220	188.6	25	1.5	173	204	81.7	135	3.14
RB 17020	170	220	191	20	1.5	184	198	29	62.1	2.21
RB 18025	180	240	210	25	1.5	195	225	84	143	3.44
RB 19025	190	240	211.9	25	1	202	222	41.7	82.9	2.99
BB 20025	200	260	230	25	2	215	245	84.2	157	4
RB 20030	200	280	240	30	2	221	258	114	200	6.7
RB 20035	200	295	247.7	35	2	225	270	151	252	9.6
RB 22025	220	280	250.1	25	2	235	265	92.3	171	4.1
RB 24025	240	300	269	25	2.5	256	281	68.3	145	4.5
RB 25025	250	310	277.5	25	2.5	265	290	69.3	150	5
RB 25030	250	330	287.5	30	2.5	269	306	126	244	8.1
RB 25040	250	355	300.7	40	2.5	275	326	195	348	14.8
RB 30025	300	360	328	25	2.5	315	340	76.3	178	5.9
RB 30035	300	395	345	35	2.5	322	368	183	367	13.4
RB 30040	300	405	351.6	40	2.5	326	377	212	409	17.2
BB 35020	350	400	373.4	20	2.5	363	383	54.1	143	3.9
BB 40035	400	480	440.3	35	2.5	422	459	156	370	14.5
RB 40040	400	510	453.4	40	2.5	428	479	241	531	23.5
RB 45025	450	500	474	25	1	464	484	61.7	182	6.6
RB 50025	500	550	524.2	25	1	514	534	65.5	201	7.3
RB 50040	500	600	548.8	40	2.5	526	572	239	607	26
RB 50050	500	625	561.6	50	2.5	536	587	267	653	41.7
RB 60040	600	700	650	40	3	627	673	264	721	29
RB 70045	700	815	753.5	45	3	731	777	281	836	46
BB 80070	800	950	868.1	70	4	836	900	468	1330	105
RB 90070	900	1050	969	70		937	1001	494	1490	120
RB 1000110	1000	1250	1114	110	5	1057	1171	1220	3220	360
RB 1250110	1250	1500	1365.8	110	5	1308	1423	1350	3970	440

RE series(Inner ring division type,ZGOTr ring rotation)

Bearing Type						Shoulder Size		ing(radial		weight
	nner Diar	GOTrDiar	Roller Pitch Diameter	Height	Chamfer			Cr	Cor
	d	D	Dpw	B B1	Rmin	ds	Dh	KN	KN	kg
RE 2008	20	36	29	8	0.5	23.5	30.5	3.23	3.1	0.04
RE 2508	25	41	34	8	0.5	28.5	35.5	3.63	3.83	0.05
RE 3010	30	55	43.5	10	0.6	37	47	7.35	8.36	0.12
RE3510	35	60	48.5	10	0.6	41	51.5	7.64	9.12	0.13
RE 4010	40	65	53.5	10	0.6	47.5	58	8.33	10.6	0.16
RE 4510	45	70	58.5	10	0.6	51	61.5	8.62	11.3	0.17
RE 5013	50	80	66	13	0.6	57.5	72	16.7	20.9	0.27
RE 6013	60	90	76	13	0.6	68	82	18	24.3	0.3
RE 7013	70	100	86	13	0.6	78	92	19.4	27.7	0.35
RE 8016	80	120	101.4	16	0.6	91	111	30.1	42.1	0.7
RE 9016	90	130	112	16		98	118	31.4	45.3	0.75
RE 10016	100	140	121.1	16		109	129	31.7	48.6	0.83
RE 10020	100	150	127	20		113	133	33.1	50.9	1.45
RE11012	110	135	123.3	12	0.6	117	127	12.5	24.1	0.4
RE 11015	110	145	129	15	0.6	122	136	23.7	41.5	0.75
RE 11020	110	160	137	20	1	120	140	34	54	1.56
RE 12016	120	150	136	16	0.6	127	141	24.2	43.2	0.72
RE12025	120	180	152	25	1.5	133	164	66.9	100	2.62
RE 13015	130	160	146	15	0.6	137	152	25	46.7	0.72
RE 13025	130	190	162	25	1.5	143	174	69.5	107	2.82

Bearing Type	Dimension					Shoulder Size				weight
	nner Diam	ZGOTrDian	Roller Pitch Diameter	Height	Chamfer			Cr	Cor
	d	D	Dpw	B B1	Rmin	ds	Dh	KN	KN	kg
RE 14016	140	175	160	16	1	147	162	25.9	50.1
RE 14025	140	200	172	25	1.5	154	185	74.8	121	2.96
RE 15013	150	180	166	13	0.6	158	172	27	53.5	0.68
RE 15025	150	210	182	25	1.5	164	194	76.8	128	3.16
RE 15030	150	230	192	30	1.5	173	210	100	156	5.3
RE16025	160	220	192	25	1.5	173	204	81.7	135	3.14
RE 17020	170	220	196.1	20	1.5	184	198	29	62.1	2.21
RE 18025	180	240	210	25	1.5	195	225	84	143	3.44
RE 19025	190	240	219	25	1	202	222	41.7	82.9	2.99
RE 20025	200	260	230	25	2	215	245	84.2	157	4
RE 20030	200	280	240	30	2	221	258	114	200	6.7
RE 20035	200	295	247.7	35	2	225	270	151	252	9.6
BE 22025	220	280	250.1	25	2	235	265	02.3	171	4.1
RE 24025	240	300	272.5	25	2.5	256	281	68.3	145	4.5
BE 25025	250	310	280.9	25	2.5	268	293	69.3	150	5
RE 25030	250	330	287.5	30	2.5	269	306	126	244	8.1
RE 25040	250	355	300.7	40	2.5	275	326	195	348	14.8
RE 30025	300	360	332	25	2.5	319	344	75.5	178	5.9
RE 30035	300	395	345	35	2.5	322	368	183	367	13.4
RE 30040	300	405	351.6	40	2.5	326	377	212	409	17.2
RE 35020	350	400	376.6	20	2.5	363	383	54.1	143	3.9
RE 40035	400	480	440.3	35	2.5	422	459	156	370	14.5
BE 40040	400	510	453.4	40	2.5	428	479	241	531	23.5
RE 45025	450	500	476.6	25	1	464	484	61.7	182	6.6
RE 50025	500	550	526.6	25	1	514	534	65.5	201	7.3
RE 50040	500	600	548.8	40	2.5	526	572	239	607	26
BE 50050	500	625	561.6	50	2.5	536	587	267	653	41.7
RE 60040	600	700	650	40	3	627	673	264	721	29

RU series(one-piece of inner and ZGOTr ring,with the installation holes)

Bearing Type	Dimension					Shoulder Size		( ) Basic Load lating(radial		weight
	ner Diamet	2GOTrDian	Roller Pitch Diameter	Height	Chamfer			Cr	Cor
	d	D	Dpw	B	Rmin	ds	Dh	KN	KN	kg
RU 28	10	52	28	8	0.3	24	29.5	2.9	2.4	0.12
RU 42	20	70	41.5	12	0.6	37	47	7.35	8.35	0.29
RU 66	35	95	66	15	0.6	59	74	17.5	22.3	0.62
RU 85(G) RU85X	55	120	85	15	0.6	79	93	20.3	29.5	1
RU 124(G) RU 124X	80	165	124	22	1	114	134	33.1	50.9	2.6
RU 148(G) RU 148X	90	210	147.5	25	1.5	133	162	49.1	76.8	4.9
RU 178(G) RU 178X	115	240	178	28	1.5	161	195	80.3	135	6.8
RU 228(G) RU 228X	160	295	227.5	35	2	208	246	104	173	11.4
RU 297(G) RU 297X	210	380	297.5	40	2.5	272	320	156	281	21.3
RU 445(G) RU 445X	350	540	445.4	45	2.5	417	473	222	473	35.4

Inner Ring		ZGOTr Ring		3earing Type
PCD1 Fixing Holes Center Diamete	Fixing Holes Dimension	PCD2 Fixing Holes Center Diameter	Fixing Holes Dimension
16	4-M3(Through Hole)	42	6 - φ 3 . 4 φ 6 . 5 3 . 3 6-φ3.4Through Hole 6.5Counterhere deeha	RU 28
28	6-M3(Through Hole)	57		RU 42
35	6-M3(Through Hole)	67		RU 57
45	8-M4(Through Hole)	83	8-4.5φ84.4 oecoueibore Detht4	RU 66
65	8-5.6(8-5.5Through Hole)	105	8 - 5 . 6 9 . 5 5 . 4 8-φ5.5Through Hole φ9.5Counterbore Depth5.4	RU85(G) RU 85X
	8-M5(Through Hole)
97	10-φ5.5φ9.55.4 10-5.5Through Hole 9.5Counterbore Depth5.4	148	10-5.69.55.4 10-φ5.5Through Hole φ 9.5 Counterbore Depth5.4	RU124(G) RU124X
	10-M5(Through Hole)
112	12-9φ148.6 12-φ9Through Hole14Counterbore Depth8.6	187	12-φ9φ148.6 12-φ9Through Hole 14Counterbore Depth8.6	RU148(G) RU148X
	12-M8(Through Hole)
139	12-φ9φ148.6 12-φ9Through Hole 14Counterbore Depth8.6	217	1 2 - 9 φ 1 4 8 . 6 12-φ9Through Hole 14Counterbore Depth8.6	RU178(G) RU178X
	12-M8(Through Hole)
184	12-φ11φ17.510.8 12-1Through Hole17.5Counterbore Depth10.8	270	12-11φ17.510. 12-φ11Through Hole 17.5Counterhore Denth	RU228(G) RU228X
	12-M10(Through Hole)
240	16-14φ2013 16-14Through Hole20Counterbore Depth13	350	1 6 - φ 1 4 φ 2 0 1 3 16-14Through Hole 20Counterbore Depth13	RU297(G) RU297X
	16-M12(Through Hole)
385	24-142013 24-14Through Holeφ20Counterbore Depth13	505	2 4 - φ 1 4 2 0 1 3 24-φ14Through Hole 20Counterbore Depth13	RU445(G) RU 445X
	24-M12(Through Hole)

RA series(Inner ring integrity,ZGOTr ring division,thin section)

Bearing Type	Dimension					Shoulder Size		( c Load rating(re		weight
	nner Diamet	ZGOTr Diamet	Boller Pitch Diametel	Height	Chamfer			Cr	Cor
	d	D	Dpw	B B1	Rmin	ds	Dh	KN	KN	kg
RA 5008	50	66	57	8	0.5	53.5	60.5	5.1	7.19	0.08
RA 6008	60	76	67	8	0.5	63.5	70.5	5.68	8.68	0.09
RA 7008	70	86	77	8	0.5	73.5	80.5	5.98	9.8	0.1
RA 8008	80	96	87	8	0.5	83.5	90.5	6.37	11.3	0.11
RA 9008	90	106	97	8	0.5	93.5	100.5	6.76	12.4	0.12
RA 10008	100	116	107	8	0.5	103.5	110.5	7.15	13.9	0.14
RA11008	110	126	117	8	0.5	113.5	120.5	7.45	15	0.15
RA 12008	120	136	127	8	0.5	123.5	130.5	7.84	16.5	0.17
RA 13008	130	146	137	8	0.5	133.5	140.5	7.94	17.6	0.18
RA 14008	140	156	147	8	0.5	143.5	150.5	8.33	19.1	0.19
RA 15008	150	166	157	8	0.5	153.5	160.5	8.82	20.6	0.2
RA 16013	160	186	172	13	0.8	165	179	23.3	44.9	0.59
RA17013	170	196	182	13	0.8	175	189	23.5	46.5	0.64
RA18013	180	206	192	13	0.8	185	199	24.5	49.8	0.68
A 901	190	216	202	13	0.8	195	209	24.9	51.5	0.69
RA 20013	200	226	212	13	0.8	205	219	25.8	54.7	0.71

Our Advantages 1. We accept small order of Bearing.
2. We can supply Customized Bearing.
3. High Precision, Heavy Load, High Speed.
4. We can supply Customized Bearing.
5. We can accept payment via paypal, T/T and L/C.
Wuxi Haiweite Bearing Transmission Technology Co., Ltd
is a leading bearing manufacturer in China, offering professional high precision bearing and solutions since 2012. With great development, we have established one-stop solutions for global clients, possessing own R&D, Q&C, production, sales, and after-sales department.10 years experience of R&D,9 years professional exporting experience,11-50 skilled sales service staff,10 senior engineers and 15 middle-level engineers in the field of mechanical, machinery,Advanced CNC equipment guarantee product accuracy & stability,Factory directly provides most competitive price, and all series bearings are on stock.
Our bearings are mainly used in CNC machine tools, precision instruments, petrochemical equipment, marine equipment, medical equipment, precision machinery, robotics and intelligent equipment.
