Z5045/1 Vertical Drilling Machine with variable speed
| US$1,300.00-1,400.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z5045/1
Controlling Mode
Electrical
Number of Shaft
0
Hole Diameter
32mm 40mm 45mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Max. Drilling Capacity
45mm
Power
Electrical
Spindle Taper
Mt3 Mt4 R8
Max Travel of Head Stock
250mm
Speed of Motor
0.75kw 1.1kw 1.5kw
Transport Package
Fumigated Exporting Standard Wooden Case
Specification
CE, SGS, ISO9001: 2000
Trademark
WMT or customized logo
Origin
Chizhou, Anhui, China
HS Code
84592900
Production Capacity
100 Sets Monthly
Product Description
Product DescriptionFeature:
Z5032 series: spindle is not auto-feedingZ5032/1 series: spindle is auto-fedding1) Drilling, milling and tapping2) Head swivels 360 degree horizontally3) Headstock and Worktable up & down perpendicularly4) Super high column5) Precision micro feed6) Positive spindle lock7) Distinct auto device for releasing tools, operate easily8) Geared drive, lower noise
Main specification:
| Specification | Z5032/1 Z5040/1 Z5045/1 | Z5032 Z5040 Z5045 |
| Max.drilling capacity | Φ32mm/Φ40mm/Φ45mm(1-1/4"/1-5/8"/1-3/4") | |
| Spindle taper | MT3/MT4/R8 | |
| Spindle travel | Φ130mm(5-1/8") | |
| Step of spindle speed | 6 steps | |
| Range of spindle speed 50Hz | 80-1250rpm | |
| 60Hz | 95-1500rpm | |
| Step of spindle auto-feeding | 6 steps | / |
| Range of spindle auto-feeding amount | 0.06-0.30mm/r | / |
| Min.distance from spindle axis to column | 290mm(11-3/8") | |
| Max.distance from spindle nose to worktable | 725mm(28-1/2") | 700mm(27-1/2") |
| Max.distance from spindle nose to stand table | 1125mm(44-1/4") | |
| Max.travel of headstock | Φ250mm(10") | |
| Swivel angle of headstock | 360° | |
| Max.travel of worktable bracket | Φ600mm(23-5/8") | |
| Worktable size of avaliablity | 380×300mm | 730×210mm |
| Swivel angle of table horizontally | 360° | |
| Table leaned | ±45° | / |
| Size of stand worktable of avaliability | 417×416mm | |
| Motor Power | 0.75KW/1.1KW/1.5KW | |
| speed of motor | 1400rpm | 1400rpm |
| Net weight/Gross weight | 440kg/490kg | 470kg/530kg |
| Packing size | 1850×750×1000mm | 1850×950×1000mm |
| Loading amount/20" container | 18pcs | 12pcs |
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.

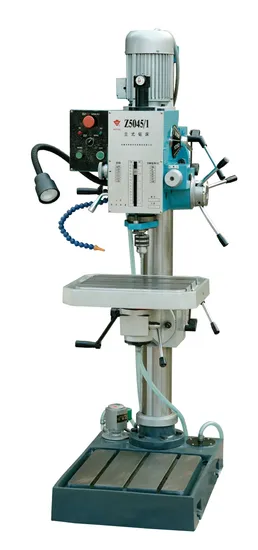

Machine picture:
Standard accessories
| Item | Qty |
| Drill chuck 1-13mm/B16 | 1pc |
| Draw bar | 1pc |
| Allen wrench | 1pc |
| Wedge | 1pc |
| Tie rod | 1pc |
Optional accessories:
Halogen lamp
Coolant system
58pcs clamping kits
Face milling cutter
Milling chuck(8pcs set)
