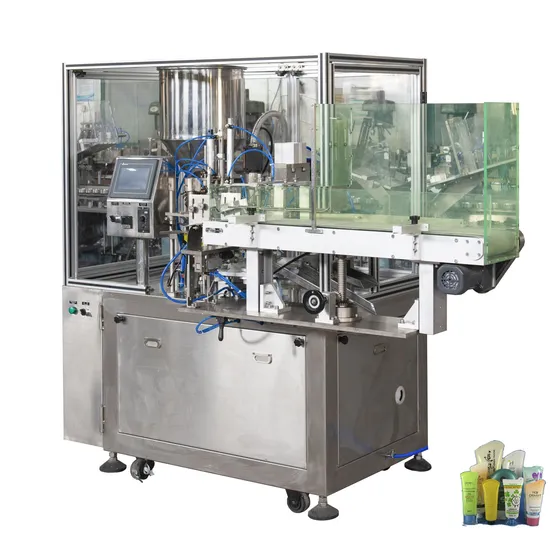

Auto Soft Plastic Tube Filling Sealing Machine Hot Air

Product Description

Product Discription
AUTO Soft Plastic Tube Filling Sealing Machine Hot Air Main technical parameters

Type	B.GF-30-1
Power supply	380(220)V/50HZ
Power	5.5kw
Air consumption	0.6-0.8MPa
Filling valum	15-60ml/60-120ml/120-200ml
Metering precision	1%more or less
Max. production capacity	30-45pcs/min
Tube size	Diameter 16-50mm
Dimension	2200*930*2200mm
Weight	650kg

Main Features 1) The main driving adopts full mechanical structure with stable running, low noise, and convenient operation and m
aintenance.
2) Equipped with automatic tube dropping box, automatic tube feeding, double-head filling, automatic color code aligning, automatic tube discharging
3) Hot air inner heating, hot air heating from tube inner wall, no damage to tube surface tissues, beautiful sealing, especially suitable for sealing full-plastic packaging tubes
4) Automatically adjusted filling volume, no filling in case of no tube, PLC control, electrical buttons operation
5) Equipped with organic glass dust cover
6) Irregular shape sealing(optional)
7) Wire drawing preventing or leakage preventing filling head(optional)
8)Storage barrel liquid level control and alarming system, automatic feeding(optional)
9) Provided with mixing storage barrel(optional)
10) Provided with heating storage barrel(optional)
11) Realize double used filling of liquid and ointment
Our Service
Pre-sales services After-sales services * Inquiry and consulting support. *Provide layout drawing
*Video conference to see our products * Training how to install and use the machine
* View our Factory. * Engineers available to serve aboard
*Offer one-stop service
Our Factory
FAQ
Q1:Are you manufacturer? Can we visit your factory?
Answer: Yes, we are a manufacture, and we have an international trading center in Shanghai. And of course welcome to our factory.
Q2: How about your prices?
Answer: Our prices are competitive in our field and also negotiable according to your order quantity.
Q3: How's your products?
Answer: Parts of named-brand, best materials of machine body are used to assure you of the best quality.
Q4: What's your advantage?
Answer: Compared with our competitors, we can offer you one-step service.The whole production line including machines, raw material, even toothpaste, cosmetic formulas for free are available.
