Sealing Adhesive Sealant Tape for Vacuum Infusion

Product Description

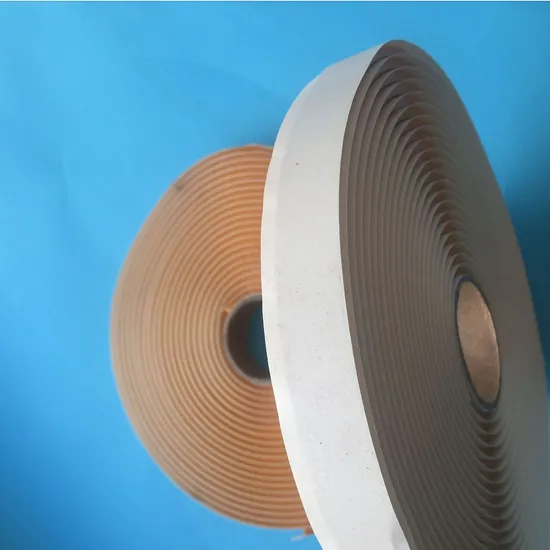

Vacuum sealing adhesive tape is an adhesive and elastic tape takinga special synthetic rubber as the butyl, and made of some assistancemainly including the temperature-resistance reinforcing agent andtackifier. This material is able to better adhere to steel, aluminum,nylon and other metals and nonmetal as well. It features good temperatureresistance, convenient usage, reliable high-temperature sealing.
Typical application:
It is used for high-temperature vacuum molding sealing of materialssuch as composites and safety glass.
Technical data:
1. Density: less than 1.4g/cm3
2. Shear strength: not less than 0.07Mpa for aluminum / nylon film
3. Heat-resistance: with the treatment of 4 hours, the tape is freeof diaspora, crack keeps its original thickness.
4. High-temperature peel strength: with the treatment of 1803hours, its peel strength will be less than 1.5Kg/M and can stripfrom the mental surface.
Usage method
1. Remove the oil and dust on the surface of the sealed mental andnylon membrane, and clean with 120 # gasoline.
2. Paste one side with the adhesive tape on alloy surface aroundthe vacuum tank evenly, remove the release paper of the adhesivetape and then paste the nylon membrane on the adhesive tape, pressevenly with small stick (avoiding introducing bubbles) to make theadhesive tape firmly bond on the upper and lower parts. In addition,pumping vacuum will be conducted to check the reliability of thesealing, and then it can be used for high temperature vacuum molding(it can also be used for high temperature molding after consolidatingpaste and sealing of the adhesive tape upon the different requestsof the users).

Type	Highest Working Temp	Color	Package
JP236	100ºC	Black	40roll/carton Length:7.5m
JP237	150ºC	Yellow	40roll/carton Length:7.5m
JP238	180ºC	Orange	40roll/carton Length:7.5m
JP239	210ºC	Yellow	40roll/carton Length:7.5m
