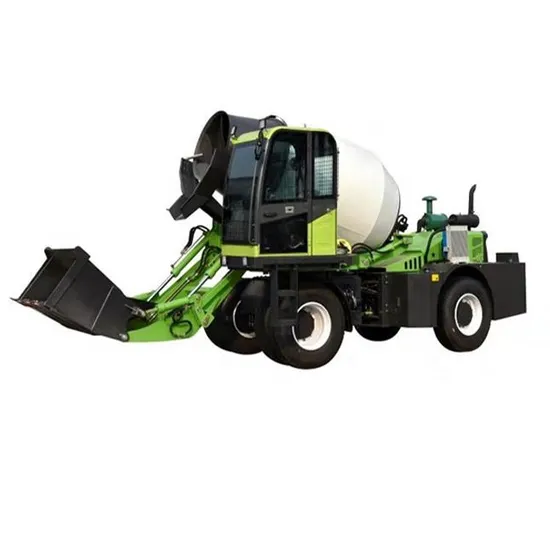

Factory Direct Sale Low Price Mini 2.6 Cubic Self Loading Concrete Mixer Truck
| US$12,500.00-16,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JBC2600
Shotcrete Type
Semi-Dry
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
16m3/H
Feeding Height
1390mm
Vibrating Amplitude
1.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Optional
Engine
Yuchai
Engine Power
78kw
Tank Capacity
2.6m3
Production Time
About 15 Days
Transport Package
Nude Shipment
Trademark
Newindu
Origin
China
HS Code
8429521200
Production Capacity
300/Month
Packaging & Delivery
Package Size
1.00cm * 1.00cm * 1.00cm
Package Gross Weight
10000.000kg
Product Description
Factory direct sale low price mini 2.6 cubic self loading concrete mixer truck Product DescriptionMain Features
1. The self mixing concrete truck can automatic feeding, measuring, mixing and discharging concrete.
2. The self loading mixer for sale has easy operation, high working efficiency, high mixing effect.
3. It has independent water supply system, which can ensure the high quality of concrete.
4. It just need one operator to drive, load, and mix raw material while moving it.
Product Application
Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.
The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck. Product Parameters
| Model | JBC2600 |
| Engine model: | YCD4T22T-105 |
| Rated power | 78kw |
| Rated rotation speed | 2,400 r/min |
| Gearbox: | 265 split electronic-control torque converter |
| Axle | Fully-hydraulic driven, 2-wheel steering |
| Brake method | Oil brake, two independent brake circuits |
| Driving mode | 4-wheel drive |
| Gear | 2 forward gear,2backword gear |
| Max. speed per hour | 30km |
| Minimum turning radius: | 5m |
| Mixing mode: | Hydraulic motor driven |
| Tank capacity: | 2.6 m³ |
| Rotation speed | 18r/min |
| Dipper capacity | 0.7m³ |
| Mixing speed: | 0-12.5 YPM |
| Tire model: | 16/70-20 |
| Water supply method: | Built-in water supply system (24V electronic-control auto water feeding system) |
| Water tank capacity: | 2*260 L |
| Oil tank capacity: | 200L |
| External dimensions: | 5650 × 2210 × 3450 mm |
| Total weight: | 5800 kg |
Detailed Photos
