High Precision Manual Lathe CH1440K Conventional Lathe
Basic Info.
Model NO.
CH1440K
Type
Horizontal Lathe
Processing Accessory
Other
Guide Rail
Horizontal Guide Rail
Tool Holder
Other
Power Source
Hydraulic Pressure
Controlling Mode
Other
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max. Swing Over Bed
360mm
Max. Swing Over Cross Slide
210mm
Max. Swing Overgap Diameter
508mm
Effective Length in Gap
180mm
Distance Between Centers
1000mm
Width of Bed
260mm
Spindle Bore
40mm
Spindle Nose
ISO-D4
Spindle Taper
Mt5
Range of Spindle Speed
12 Steps, 40-1800r/Min
Longitudinal Metric Feeds
37 Kinds, 0.043-0.653mm/Rev
Cross Metric Feeds
37 Kinds, 0.024-0.359mm/Rev
Metric Threads Range
37 Kinds, 0.4-7mm
Inch Threads Range
28 Kinds, 4-56 T.P.I
Main Screw Diameter
22mm
Transport Package
Wooden Cases
Specification
200*75*165cm
Trademark
HAIDI
Origin
China
HS Code
8458990000
Production Capacity
30 Sets/Month
Packaging & Delivery
Package Size
500.00cm * 375.00cm * 465.00cm
Package Gross Weight
1760.000kg
Product Description

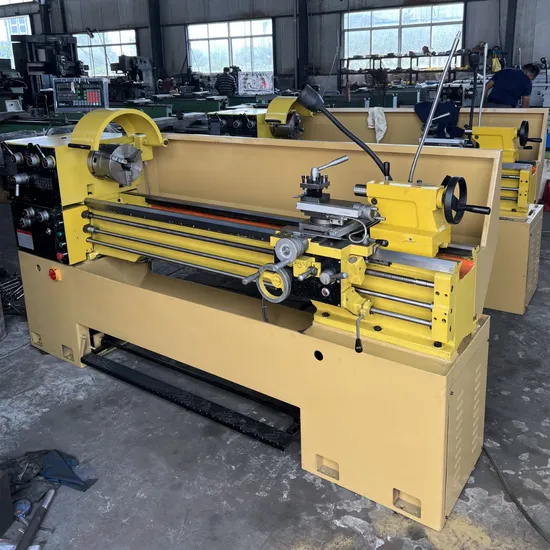

Product Picture
Specification Parameter
| Items | Specification | Unit | CH1440K | CH1460K | CH1440KA | CH1460KA |
| Processing capacity | Max. swing over bed | mm | 360 | |||
| Max. swing over cross slide | mm | 210 | ||||
| Max. swing overgap diameter | mm | 508 | ||||
| Effective length in gap | mm | 180 | ||||
| Distance between centers | mm | 1000 | 1500 | 1000 | 1500 | |
| Width of bed | mm | 260 | ||||
| Headstock | Spindle bore | mm | 40 | 52 | ||
| Spindle nose | ISO-D4 | ISO-D6 | ||||
| Spindle taper | MT5 | MT6 | ||||
| Range of spindle speed | r/min | 12steps, 40-1800 | ||||
| Feed box | Longitudinal metric feeds | mm/rev | 37 kinds, 0.043-0.653 | |||
| Cross metric feeds | mm/rev | 37 kinds, 0.024-0.359 | ||||
| Metric threads range | / | 37 kinds, 0.4-7mm | ||||
| Inch threads range | 28kinds, 4-56T.P.I | |||||
| Main screw dia. | mm | 22 | ||||
| Main screw pitch | 4mm or 8T.P.I | |||||
| Carriage | Max. Travel of top slide | mm | 95 | |||
| Max. Traval of cross slide | mm | 180 | ||||
| Max. section of of tool | mm | 16*16 | ||||
| Tailstock | Quill diameter | mm | 45 | |||
| Quill taper | / | MT3 | ||||
| Quill travel | mm | 120 | ||||
| Motor | Main motor power | kw | 2.2 | 3 | ||
| Coolant pump motor | W | 90 | ||||
| Packing size | (L*W*H) | cm | 200*75*165cm (1000mm) 250*75*165cm (1500mm) | |||
| Net /gross | weight | kg | 1050/1300 | 1300/1600 | 1100/1350 | 1350/1650 |
Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
