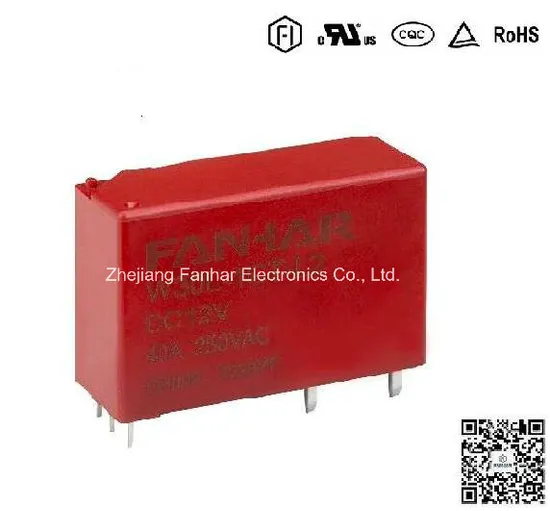

Latching Relay with 50A 250VAC for Smart Meter
| US$1.50-1.80 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
W30L
Electricity Type
Dc
Load
High Power Relay
Protective Characteristics
Sealed Relay
Action Principle
Electromagnetic Type
Size
Miniature
Type
Electric Parameter Relay
Certification
UL TUV CQC
Contact Material
Agsno2
Installation Type
PCB
UL Insulation Class
F
Operate Time
Max.15ms
Release Time
Max.15ms
Weight
32g
Contact Form
Open
Humidity
5% to 90%
Temperature
-40 to +85
Transport Package
Export Carton
Specification
39*15*32.2(mm)
Trademark
Fanhar
Origin
China
HS Code
8536411000
Production Capacity
2500000-3000000PCS/Month
Product Description
Basic Info 50A switching capability Single coil and double coils are all available Contact arrangement:1A ,1C Contact material: T=AgSnO2 Contact on and off can be controlled by manual control switch UL insulation system:Class F Environment-friendly product(RoHS compliant) Outline Dimensions:(39×15.0×30.2)mm Main application:Smart meter,Lighting controlCompany Introdustion The history of Zhejiang Fanhar Electronics Co.,Ltd
New factory building
