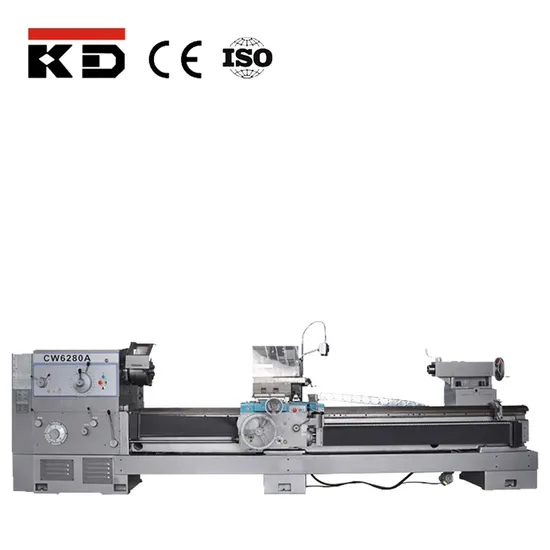

Gear Head Conventional Engine Lathe Cw6280A/1000
| US$3,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CW6280A/1000
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Bed Width
560mm
Spindle Bore
105mm
Max Swing Over Bed
630mm
Motor Power
11kw
Colour
Any Colour
OEM
Yes
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458190000
Production Capacity
130 Sets/Year
Product Description
PRODUCT SPECIFICATIONS
| MODELS | CW6163A/CW6263A | CW6180A/CW6280A |
| CAPACITY | | |
| Max.swing over bed | Ф630mm | Ф800mm |
| Max.swing over carriage | Ф370mm | Ф510mm |
| *Max swing over gap (optional) | Ф830mm | Ф1000mm |
| *Effective length of gap (optional) | 310mm | |
| Width of bed | 560mm | |
| Max.length of workpiece | 1000/ 1500/ 2000/ 3000/ 4000m | |
| Max.turning length | 650/ 1150/ 1650/ 2650/ 3650mm | |
| Max. weight of workpiece | 3000kg | |
| SPINDLE | | |
| Spindle nose | D11 | |
| Spindle bore | Ф105mm | |
| Taper bore of spindle | Metric Ф120 1:20 | |
| Steps of spindle speed | 18 | |
| Range of spindle speed | 7.5~1000rpm | |
| FEED | | |
| Number of longitudinal feeds | 64 | |
| Range of longitudinal feeds (1:1) | 0.1~1.52mm/r | |
| Range of longitudinal feeds (16:1) | 1.6~24.3mm/r | |
| Number of cross feeds | 64 | |
| Range of cross feeds | Half of longitudinal feeds | |
| RAPID TRAVEL | | |
| Longitudinal | 4000mm/min | |
| Cross | 2000mm/min | |
| | | |
| THREAD RANGE/ NUMBER | | |
| Metric pitch threads | 1~240mm/ 50 | |
| Whit-worth threads | 14~1TPI/ 26 | |
| Module threads | 0.5~120M.P/ 53 | |
| D.P.Threads | 28~1D.P/ 24 | |
| TAILSTOCK SLEEVE | | |
| Taper bore | M.T.NO.6 | |
| Max travel | 230mm | |
| External diameter | Ф100mm | |
| OTHERS | | |
| Pitch of longitudinal ball screw/diameter | 12mm/ Ф55mm | |
| Vertical distance from spindle center to installing basis | 33mm | |
| Size of tool shank | 32×32mm | |
| Max travel of cross slide | 440mm | 480mm |
| Swing angle of tool post | ±90° | |
| Max travel of top slide | 200mm | |
| Main motor power | 11kw | |
| Rapid feed motor power | 1.1kw | |
| Coolant pump power | 90w | |
| Net weight | 3400/3700/4200/4700/5800kg | |
