Cotton Seed Special Centrifuge

Product Description

Cotton Seed Special Centrifuge

Introduction :HY/WH series centrifuge is a kind of horizontal piston pushing centrifuge and continuous operation filtering centrifuge. Capable of continuous feeding, separation, washing, unloading and other processes under full speed operation.
Features :It is characterized by continuous operation, stable operation, simple operation, large production capacity, good washing effect and low moisture content of filter cake.
Application :It is suitable for separating suspensions containing solids with particle size greater than 0.1mm and concentration greater than 30%. It is suitable for chemical industry, chemical fertilizer, alkali making, salt making and other industries, especially for solid-liquid separation of nitrocellulose , cotton seed pickling ,ammonium bicarbonate, ammonium chloride, mirabilite, etc.
Machine structure

Technical Parameters

Model	WH800-N	HY800-NA
Diameter of basket(mm)	800	800
Filter length(mm)	400	400
Speed of basket(r/min)	650/750	900
G.Force(Fr)	190/250	360
Push frequency times/min	20-30	25-50
Max. Loading kg	70	70
Output capacity(T/h)	5.5-6(Ammonium bicarbonate)	8-10(Ammonium bicarbonate)
Power of motor(Kw)	15/7.5	22(18.5)/15
Weight(Kg)	3570	3940
Dimensions(mm) L×W×H	2270×1780×1400	2400*1550*1540
Model of main motor	Y160L-4B3	Y180L(M)-4B3
Model of oil pump motor	Y160L-6B5	Y160L-4B5

Special tips:
1. The technical parameters shall be subject to the product specification.
2. During the inquiry, the customer shall inform the material characteristic parameters and working conditions in detail.
3. According to the special needs of customers, we can adopt personalized design and manufacturing:
4. Material: the material of the material contact part can be ordinary stainless steel, special stainless steel or titanium alloy.
5. Motor type: ordinary or explosion-proof single speed motor can be used.
6.It can be designed and manufactured according to GMP specifications.
7. Other technical requirements can be negotiated.

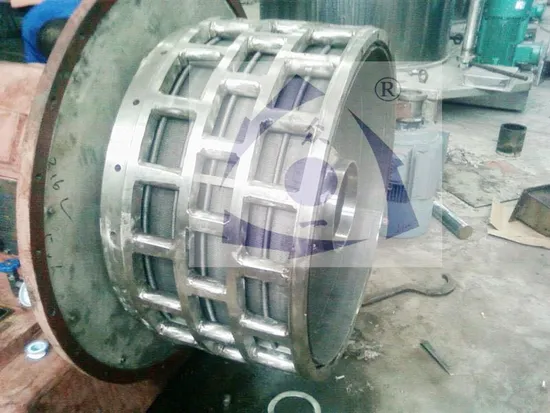

Detailed Photos

Packaging & Shipping
Company Profile
Company Profile
Hunan Zhongyi Centrifuge Co., Ltd., the former Xiangtan County centrifuge Plant Co., Ltd., has been specialized in centrifuge design, production and service for more than 60 years. It is located in the scenic Xiangjiang River scenic spot, the hometown of the great man Mao Zedong; It is a high-tech equipment manufacturing enterprise, a member of China separation machinery industry association, a national high-tech enterprise, and a private science and technology enterprise in Hunan Province.
Hunan Zhongyi Centrifuge Co., Ltd. has been engaged in the design, production and service of centrifuges for a long time. The company has strong technical force, with an excellent management team, an honest and dedicated comprehensive technical research and development team and a skilled worker team. The company takes "sincerity and dedication, build quality products" as its purpose, and adheres to the principle of "quality first, reputation first, service first, and continuous improvement" The quality system control and scientific management of the whole process of production and manufacturing, product installation and after-sales service are implemented to serve users sincerely.
Our main products include pusher centrifuge, decanter centrifuge, siphon peeler centrifuge, screw-bowl scrolling centrifuge,top-suspended centrifuge,GMP standard flat plate centrifuge, namely automatic bottom discharge centrifuge,flat plate bag suspend discharge centrifuge, etc.
Our company mainly designs production process equipment, including separation machinery CAD system, large double column vertical lathe, horizontal numerical control machine tool, precision dynamic balancing machine, vibration aging expert system, ultrasonic flaw detector, precision vibration detector, centrifuge on-site overall dynamic balancing system, protective welding equipment, metering equipment, etc., which fully meet the requirements of equipment design, manufacturing and testing.
The production line project of our company with an annual output of 500 large centrifuges has been approved by the state, and a new production base of 30000 square meters is under construction. Our company implements production, sales and after-sales service.

Certifications
ISO9001-2015
Patent of Centrifuges in 2020 to 2022
