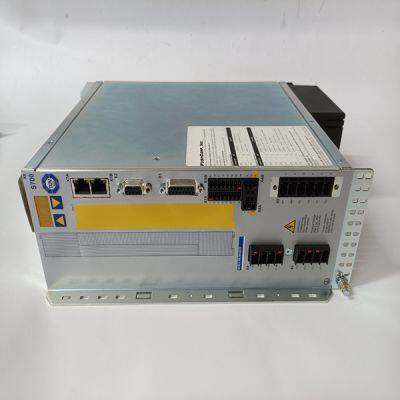

S72402-NANANA

Product Details

Product Description

Product Description
Brand: KOLLMORGEN
Type:S72402-NANANA
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts of our products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
If you do not know which type of drive is connected, click the Test button. The returned message will either say that there is no connection, confirm that you have an S200 connected, or tell you that the connected node is NOT an S200 drive. After you have confirmed your setup, click the OK button. The installed S200 drive(s) will now be listed as "Online" and will list its configuration and status options. If there are additional S200 nodes on the network, they are automatically discovered. When using a network with multiple SynqNet nodes, use the SynqNet controller/node pulldown bars to select a particular node on the network to display in the Online mode.
NOTE for SynqNet: Although the S200 Tools software maintains communication with all properly connected S200 drives drives on the SynqNet network, only one SynqNet node will be displayed at a time under the Online display. 4.2.5 SynqNet Configuration The next step is to set the proper drive and motor feedback configurations. Under the SynqNet Options tab, select the source for motor feedback (Feedback Source). Select Base Unit Feedback if the motor feedback is connected to J3 on the S200 Drive. Select Option Card Feedback if the motor feedback is connected to J14 on the S200 Drive. 4.2.6 Motor Feedback Configuration The next step is to set the proper motor feedback configurations. 4.2.6.1. SFD If you are using SFD motor feedback, no further configuration is needed. 4.2.6.2. SINCOS OR COMCODER If you are using SinCos or ComCoder as motor feedback, use the equations below to determine the appropriate parameters for setup. Kip Kip = 2*PI()*2000*(motor line to line inductance) Ex: l-l inductance = 0.018 H Kip = 2*PI()*2000*(0.018) Kip = 226 V/A
Save Options There are three types of Save options. It is important to know how to use each type to ensure that configurations are not lost. • Download NV - This button will save the parameter settings displayed in S200 Tools to the selected drive. These parameters are saved to the drive's permanent memory and are recalled during a power-up cycle. • Download Drive - This button will save the parameter settings displayed in S200 Tools to the selected drive/node. However, unlike Download NV, these parameters are only saved to the drive's temporary RAM and will not be recalled at a power-up cycle. It is recommended that you use the Download Drive button when testing settings. Once you are satisfied with the settings, click the Download NV button to permanently save the settings to the drive. • Save/Save As - You can also save the settings of a drive as a configuration file (*.S2C). Remember, saving a configuration file does NOT save the settings to the drive. Configuration files can be helpful for saving multiple drive setups. You can easily download a setting to a drive by opening the configuration file in the Offline mode and clicking the Download NV/Drive buttons once the proper drive is selected in the Online mode. It is recommended that you save a configuration file for each setup.
