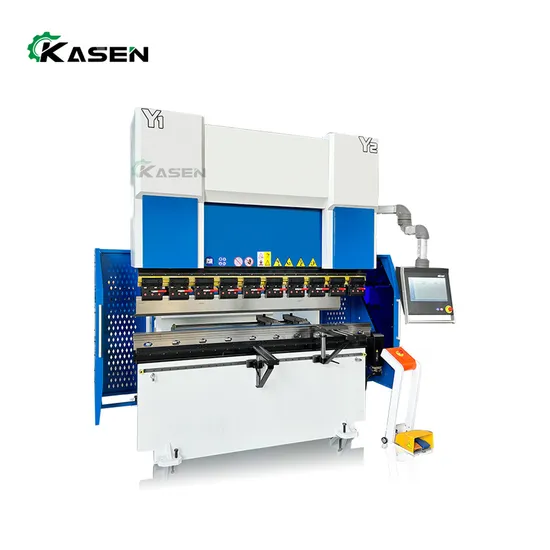

Bending Machine Wc67K Small Hydraulic 40 Ton Press Brake

Bending Machine Wc67K Small Hydraulic 40 Ton Press Brake

US$8,500.00
1-4 Sets
US$6,199.00
5+ Sets

Basic Info.

Model NO.
WE67K
Warranty
2-year
Condition
New
Certification
RoHS, ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Carbon Steel, Stainless Steel
Type
Press Brake
Core Components
Motor, PLC
CNC or Not
CNC Bender Machine
CNC Control System
Da53t System
Keyword
Hydraulic Bending Machine
Function
Sheet Metal Metal Bending
Motor Power (Kw)
11 Kw
Worktable Length
3200 mm
Nominal Pressure
1700kN
Throat Depth
330mm
Max. Open Height
460mm
Power Supply
380V/50Hz/3pH or as Your Demand
Electrical Components
Schneider Electrical From French
Machine Color
as Your Demand
Bear
NSK, Japan
Distance Between Housings
2540 mm
Transport Package
Plywood Box
Specification
1600*1000*1600mm
Trademark
Kasen
Origin
China
HS Code
8462230000
Production Capacity
100 Sets/Month

Packaging & Delivery

Package Size
270.00cm * 140.00cm * 230.00cm
Package Gross Weight
2500.000kg

Product Description

Wc67K 170T/3200 Torsion Bar Hydraulic Nc Press Brake Machine with CT8 Controller Product Description
Features: Holland DELEM series CNC system German Rexroth high-performance electro-hydraulic servo hybrid drive pump control system Synchronous setting of grating ruler detection on both sides Back gauge with high performance servo motor and ball screw Equipped with left and right protective doors and rear side protective doors Equipped with linear guide rail mobile standard front support frame The standard cofiguration: Cylinder, SUNNY, USA Foot switch, Kacon, Korea Master cylinder, Siemens, Germany Laser protection, KELI, China/DSP, Italy(OPTIONAL) Tubing, EMB, Germany Grating ruler, GIVI, Italy Ball screw linear guide, Shangyin, Taiwan O-ring, NOK, Japan Valve block, Bo sch Rexroth, Germany Electrical components, Sch neider, France Compensation device on workbench Quick mold clamping device Product Parameters
Type Nominal Force Worktable Length Poles Distance Throat Depth Stroke Max Open Pover Dimension
KN mm mm mm mm mm KW L*W*H(mm)
30T/1600 300 1600 1280 200 80 285 3 1600*1000*1600
35T/2000 350 2000 1480 200 80 285 4 2000*1100*1800
40T/2200 400 2200 1850 230 100 320 5.5 2200*1200*1910
40T/2500 400 2500 1850 230 100 320 5.5 2500*1200*1910
50T/2500 500 2500 1850 230 100 320 5.5 2500*1200*2000
63T/2500 630 2500 1900 250 120 320 5.5 2500*1300*2210
63T/3200 630 3200 2500 250 120 320 5.5 3200*1300*2210
80T/2500 800 2500 1900 300 120 320 7.5 2500*1400*2300
80T/3200 800 3200 2500 320 120 350 7.5 3200*1500*2300
80T/4000 800 4000 3000 320 120 350 7.5 4000*1500*2400
100T/2500 1000 2500 1900 320 160 320 7.5 2500*1600*2400
100T/3200 1000 3200 2500 320 160 370 7.5 3200*1600*2600
100T/4000 1000 4000 3000 320 160 370 7.5 4000*1600*2700
125T/3200 1250 3200 2500 320 160 370 7.5 3200*1600*2700
125T/4000 1250 4000 3000 320 160 370 7.5 4000*1600*2700
160T/3200 1600 3200 2500 320 200 460 11 3200*1700*2700
160T/4000 1600 4000 3000 320 200 460 11 4000*1700*2800
160T/5000 1600 5000 4000 320 200 460 11 5000*1900*3100
160T/6000 1600 6000 4940 320 200 460 11 6000*1900*3200
200T/3200 2000 3200 2500 320 200 460 11 3200*1950*2800
250T/3200 2500 3200 2500 400 250 460 18.5 3200*2000*3200
250T/4000 2500 4000 3000 400 250 590 18.5 4000*2000*3400
250T/5000 2500 5000 4000 400 250 590 18.5 5000*2000*3400
250T/6000 2500 6000 5000 400 250 590 18.5 6000*2000*3400
300T/5000 3000 5000 4000 400 250 570 22 5100*2600*4000
300T/6000 3000 6000 5000 400 250 570 22 6100*2600*4200
300T/7000 3000 7000 5620 400 250 570 22 7100*2600*4400
320T/7000 3200 7000 5620 400 250 570 22 7100*2600*4400
350T/6000 3500 6000 5100 450 250 570 30 6100*2600*4200
350T/7000 3500 7000 5620 450 250 570 30 7100*2500*4500
400T/4000 4000 4000 3100 350 300 620 30 4100*2700*3800
