Automatic Assembly Machine Equipment for Pencil Sharpener Sharpener Blade Screw Locking Stationery Electrical Appliances Fan

Product Description

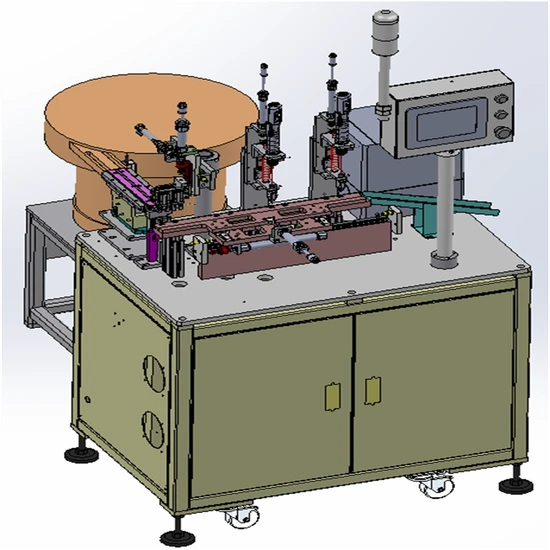

Bespoke Automated makeup Pencil Sharpener Blade Screw Assembling Machine Double blade Pencil sharpener Assembly Making Machine
Shenzhen Tianluo established for 16 years, we successfully served over 1,500 factories and helped them realize automatic production since 2008.
The above pictures and video is just for project display, to buy or Custom automated machines pls contact us
We mainly supply: Customization of Automation Equipment, Full-automatic assembly and production equipment, Full-automatic inspection, Testing and Packing equipment, Robotics and Industrial vision integration applications.
ALL the machines are designed by components and structure of the product. According to production procedure, the following systems may be added: automatic feeding bowl, feeding line, visual inspection system, various testing system, automatic dispensing oil or glue ,welding, riveting, screwing, printing, sealing, capping, drilling, filling,tapping, milling, forming,packing... Our work is to finish the automatic streamline design and make it into a set of high-stable and hign-effective automation equipment.


Related Products
Automatic insert PIN machine Hose clamp assembly machine
Disposable infution set assembly machine Hinge assembly machine

Wall socket assembly machine Reset switch assembly machine

Product Function
This equipment is suitable for the Screw feeding and locking assembly. It adopts PLC control system to automatically complete feeding, assembly and finished product discharge; it greatly improves production efficiency, reduces workers and reduces costs.



(It is an example. Welcome customization)

Function	automatic assembly makeup/children pencil sharpener
Application	Parts feeding, Parts Assembly, Screw Locking
Type	automatic machine
Production efficiency	1000-1500 pcs/hour
Power supply	220V 50/60Hz/4.0KW
Sizes	2100mm (L) x 1800mm (W) x 1700mm (H)
Air volume	160L/min
Weight	600Kg
Air supply	0.5-0.7Mpa
Feeding mode	Vibrating feeder

Machine Structure:
1. Electronic control: touch screen, PLC control;
2. Gas into components: cylinder drive, optical fiber sensor;
3. The vibrator automatic feeding;
4. The structure sliding part is made of high speed steel, which is stable wear and good fixity;
5. One year warranty;
6. Alarm indication;
Main Features: 1. This series machines is designed and manufactured specifically for the all kinds of screws locking assembly industry.
2. Automatic feeding, assembly/one-time processing complete.
3. Automatic detection, automatic start when material is detected, automatic stop when lack of material.
4. Automatic counting , set output.
5. Using the touch screen, intuitive interface, simple and safe operation.
6. Abnormal shutdown, automatic alarming when reporting abnormal information.

Can be designed and customized for customers, to a greater extent to meet the technical needs of different products.
