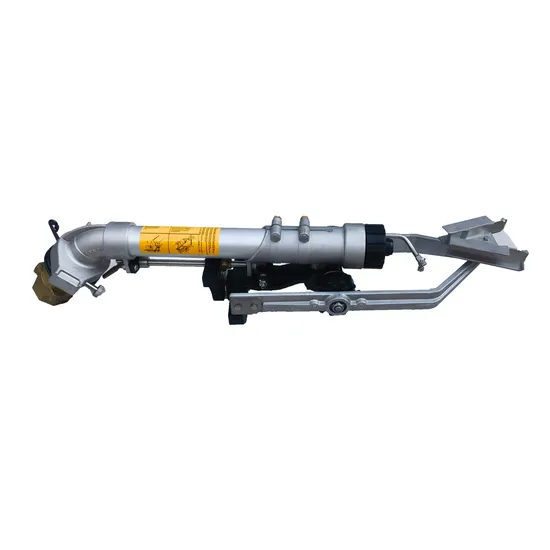

Coal Powder Transfer Yard 54m Jet Length Dust Suppression Sprinkler

Product Description

Model: 10670 44° fixed angle
Jet Length: 27-55m
Pressure: 3.5-8.0 bar
Capacity: 10.4-73.7m3/h
Nozzle: 12/14/16/18/20/22/24/26mm

NOZZLE (mm)	PRESSURE (bar)	CAPACITY (l/min)	JET LENGTH (m)	MAX HEIGHT (m)	RADIUS@HMAX (m)
12	3.5	173.2	27.1	12.0	7.2
	4.0	185.1	28.9	13.0	7.8
	4.5	196.4	30.0	14.0	8.4
	5.0	207.0	31.6	14.5	8.7
	6.0	226.7	33.3	16.0	9.6
	7.0	244.9	34.0	17.0	10.2
	8.0	261.8	35.1	17.5	10.5

14	4.0	252.0	31.5	13.5	8.1
	4.5	267.3	33.0	14.5	8.7
	5.0	281.7	34.4	15.0	9.0
	6.0	308.6	36.5	16.5	9.9
	7.0	333.3	38.0	17.5	10.5
	8.0	356.3	38.7	18.5	11.1

16	4.0	329.1	33.2	14.0	8.4
	4.5	349.1	34.1	15.0	9.0
	5.0	367.9	35.5	15.5	9.3
	6.0	403.1	37.7	17.0	10.2
	7.0	435.4	40.2	18.0	10.8
	8.0	465.4	41.1	19.5	11.7

18	4.0	416.5	37.4	14.5	8.7
	4.5	441.8	38.5	15.5	9.3
	5.0	465.7	39.4	16.0	9.6
	6.0	510.1	41.5	17.5	10.5
	7.0	551.0	44.1	19.5	11.7
	8.0	589.1	45.3	20.0	12.0

20	4.0	514.2	39.7	15.0	9.0
	4.5	545.4	40.6	16.0	9.6
	5.0	574.9	42.2	17.0	10.2
	6.0	629.8	44.0	18.5	11.1
	7.0	680.3	46.8	20.5	12.3
	8.0	727.2	48.8	21.0	12.6

22	4.0	622.2	41.5	15.5	9.3
	4.5	660.0	43.9	16.5	9.9
	5.0	695.7	45.5	17.5	10.5
	6.0	762.1	47.8	19.0	11.4
	7.0	823.1	49.7	21.0	12.6
	8.0	879.9	51.0	22.0	13.2

24	4.0	740.5	43.5	15.5	9.3
	4.5	785.4	45.1	17.0	10.2
	5.0	827.9	47.5	18.0	10.8
	6.0	906.9	49.8	19.5	11.7
	7.0	979.6	51.9	21.5	12.9
	8.0	1047.2	52.7	22.5	13.5

26	4.0	869.0	44.9	16.0	9.6
	4.5	921.8	47.0	18.0	10.8
	5.0	971.6	48.7	20.0	12.0
	6.0	1064.4	51.9	21.5	12.9
	7.0	1149.6	53.3	22.5	13.5
	8.0	1229.0	54.4	23.0	13.8

Beijing LBM Science and Technology Development Co., Ltd., located in Changping District, Beijing, was established in 2004. It is a high-tech enterprise specializing in environmental protection equipments.The registered capital of the company is 31 million yuan. The enterprise fully implements the ISO9001 standard, obtains the ISO14001:2015 environmental management system authentication and the OHSAS18001:2007 occupational health safety management system authentication, realizes the integration with the international advanced management level.
The company has obtained more than 20 patents of scientific and technological achievements and software copyright certificates, and has the qualification of environmental protection engineering, mechanical and electrical installation and special engineering design for environmental engineering. It has the ability of the overall process design and construction of air control equipment or the overall technological transformation.
The environmental protection department mainly provides professional design and engineering installation of spray gun dust suppression and dust removal. It faces industrial users, such as power plants, steel plants, ports, mines and other industrial users. Customers spread all over the country and extend overseas. Environmental protection products include cyclone water bath dust remover, spray gun, all-weather spray gun station, all self- dynamic spray control system, coal conveying belt spray and dust removal system, etc.
