Full Automatic Tissue Paper Folding Machine Box Type Facial Tissue Packing Machine

Product Description

Introduction
This is full automatic box facial tissue production line from the folding machine to box packing machine without worker operate machine, include facial tissue folding machine with auto transfer, Log saw cutting machine, facial tissue box packing machine.

Main Feature
This facial tissue machine adopts large-screen real-color man-color man-machine interface operation, PLC programming control, and one-key switch between Chinese and English for independent language environment operation; The automatic stacking system adopts "Siemens" Full servo drive control (Three sets of servos) to ensure accurate stacking, The stacking speed is stable 8-10; The main machine and the unwinding paper rack are all frequency conversion and independent drive synchronization; the international advanced technology such as electromechanical and optical integration control. Automatically detect and adjust each movement of the facial tissue machine, with a complete fault information prompt system, so that the entire equipment reaches the best working condition.
Adopt log saw cutting machine can precise control the specification of the finished tissue.
Full automatic facial tissue box packing machine auto insert tissue sealing carton


Parameters

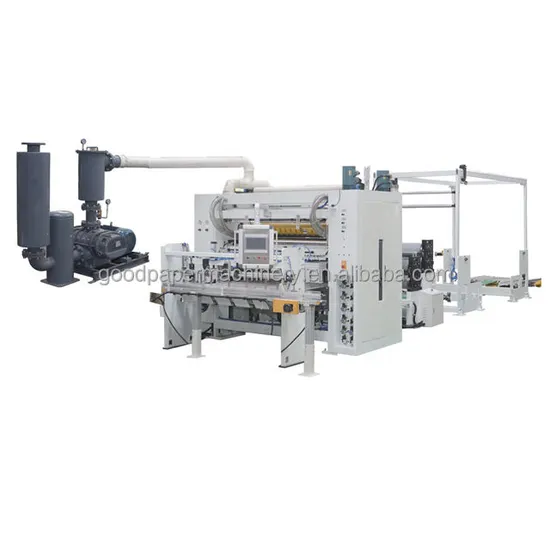

4T-10T Facial tissue folding machine with auto transfer

Model	4T	5T	6T	7T	8T	9T	10T
Max. width of raw paper	900mm	1050mm	1300mm	1450mm	1750mm	1950mm	2050mm
Edge embossing	4 front sets and 4 rear sets	5 front sets and 5 rear sets	6 front sets and 6 rear sets	7 front sets and 7 rear sets	8 front sets and 8 rear sets	9 front sets and 9 rear sets	10 front sets and 10 rear sets
Vacuum system	11kw	15kw	18.5kw	18.5kw	22kw	22kw	22kw
Main unit power	4kw	5.5kw	5.5kw	7.5kw	7.5kw	7.5kw	11kw
Machine size(mm)	6000*2100*1900	6000*2300*1900	6000*2500*1900	6000*2600*1900	6000*3000*1900	6000*3100*1900	600*3200*1900
Machine weight	4500kg	5500kg	6500kg	7500kg	8000kg	8300kg	8500kg
Folding speed	500-1000sheets/min/row
Transfer speed	8-12 log/min
Transfer system	Ormon programming
Dia. of Raw paper	Ø1500mm
Core Inner Diameter	Ø76.2mm
Air pressure	>4kg/cm²(User supplied)
Optional
Full embossing	Steel to Rubber/Paper/Steel Glue lamination unit
Back stands	2/4/6/8/10
Slitting cutter	4 front sets and 4 rear sets	5 front sets and 5 rear sets	6 front sets and 6 rear sets	7 front sets and 7 rear sets	8 front sets and 8 rear sets	9 front sets and 9 rear sets	10 front sets and 10 rear sets

Facial tissue log saw cutting machine
Size of tissue	(30-300)*(80-120)*(15-150)mm	Speed	<=200 cuts/min
Feeding way	Servo driver	Cutting way	360o Continuous rotation cut
Head N trail	15-25mm	Precision	<1mm
Sharpen the blade	Auto (set on touch screen)	Dia. of Blade	Ø610mm
Air pressure	0.5 Mpa(Supply by buy)	Voltage	380V 50/60Hz 3-Phase
Total power	6.5Kw	Machine size	1550*1400*1700mm
Weigth	About 1600Kg

Automatic box tissue packing machine

Packing size(mm)	GSM of carton	Speed	paper feeding	Power
(110-230)*(100-120)*(35-90)	280-350g/m2	20-100 boxes/min	Electro-magnetic clutch paper feeding	5.3Kw
Machine size(mm)	Adhesive	Air pressure	Voltage	Machine weight
2900*2850*1500	Glue	0.5-0.7Mpa	380V 50/60Hz 3-Phase	1100Kg

Company information
Goodpaper machinery was a Manufacturer and trade integration enterprise, Our factory in Shishan Town, Foshan City where near Guangzhou city. Workshop more than 4000 square meter.
Goodpaper machinery was specialized in Tissue paper converting equipment, Included facial tissue, napkin tissue, pocket tissue, Toilet tissue, hand towel tissue, kitchen tissue and so on. Rewinding machine, folding machine, cutting machine, packing machine and carton sealing machine.
Goodpaper machinery is partnering with our customers, understanding their needs providing innovative technological solutions. Swiftness in adapting to the quickly changing paper machine and tissue packaging machine market trends and high leave of creativity and innovation is why customers chose us.
If you need any further assistance, please contact us.


Workshop photos


FAQ

Q: How does your factory do regarding quality control?
A: Quality is the most important. We will double QC for machine parts and whole machine before install and delivery. We have passed the GMP.

Q: What kind of after sales service will you offer to us?
A: Our factory has a strong team for it and has 1 year warranty for all machines, for the first year, If any quality problem, we will sent you the new part by free, after first year, we will provide after-sale service and technical support for the machine in lifetime, and support you with easy damaged parts with manufacturing cost.

Q: How to operate and maintain the machine?
A: First, We will provide a professional and detailed user guide to you with the machine; Second, we will debug the machine in the best status for you; At last, we also provide abroad technical training service.

Q:What information does the quotation need to provide?
A: Specification of raw materials, the type of mechanical equipment and product specifications.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock or it is 45 days if the goods are not in stock, it is according to quantity.

Q: Can you offer raw materials?
A: Our company can suggest the good supplier of raw material for all kinds of tissue paper making machines for you or offer you directly after you make a order to us.
