High-Efficiency 3-Phase Low-Voltage 220V 380V 440V Induction Cast Iron Asynchronous AC Electric Motor

Product Description

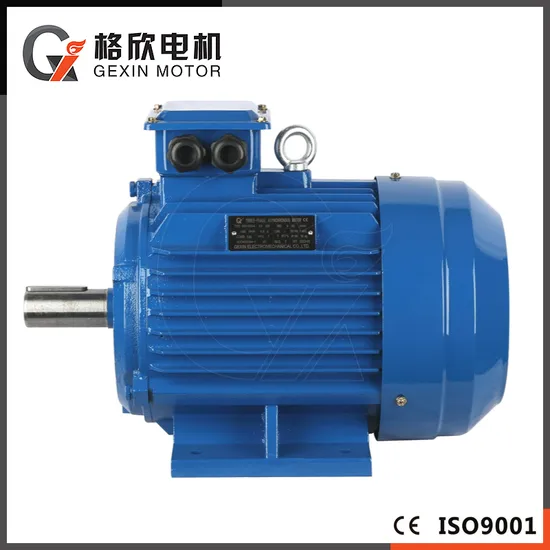

GEXIN YE2 Series Three-Phase Asynchronous Induction Electrical Motor
Gexin Electromechanical Co.,Ltd.is a company specializing in the production and processing of YC MS,YD, YCT, YEJ, YVF, YBE4, Y. YE2,YE3 .YE4 and other three-phase asynchronous motors. It has a strong R&D team, and the motor produced by the company is brand new, with national standard stator and rotor and all copper. Product 3c certification, strict technology, each processed part has passed the incoming QC, and the manufacturing process inspection. With rich production experience and advanced production equipment, the company has established long-term cooperative relations with many enterprises with strong strength, reasonable price and high-quality service. Business is sincere, and being the first person in business is our aim.
Product Description

Y2 series three-phase asynchronous motor is Y series motor the upgrading of product, is the totally enclosed, fan-cooled induction motor for general purpose .It was the newest product in the 90S' ,its overall level has reached the same products abroad at the beginning of 90S'level. The product apply to economic lake off fields, such as machine tools, water pump, fan, compressor, also can be applied to transportation, stirring, printing, agricultural machinery, food and other kinds of excluding inflammable, explosive or corrosive gas.
Y2 series three phase asynchronous motor installation size and power grade in conformity with relevant standards of IEC and Germany DIN42673 standard line and Y series motor, its shell protection grade for IP54, cooling method for IC41l, operate continuously (S1). Using F insulation class and grade B assessment according to temperature (except for 315 L2-2, 4355 all specifications F grade the assessment, and ask the assessment load noise index.
Y2 series three- phase asynchronous motor the rated voltage is 380 V. rated frequency is 50 Hz. 3 KW the following connection is Y , other power are delta connection . Motor running the place at no more than 1000 m; Environment air temperature changes with seasons, but no more than 40 °C; Minimum environment air temperature is15 °C; The wet month average high relative humidity is 90%; At the same time, this month is not higher than the lowest average temperature 25 °C.

Applications: Can be applied in the machines where continuous duty is required, typical applications like
Pumps Fans Compressors Lifting equipment Production industry
Motor Features:
1. Frame size:H80-355;
2. Power:0.75-315KW;
3. Voltage:220-660V;
4. Rated Frequency: 50 Hz / 60 Hz;
5. Poles: 2 / 4 / 6 /8 /10
6. Speed: 1000 -3000 r/min
7. Ambient Temperature: -15°C-40°C
8. Model of CONEECTION: Y-Connection for 3 KW motor or less while Delta-Connection for 4 KW motor or more;
9. Mounting: B3; B5; B35;
10. Current: 1.5-465 A (AC);
11. Duty: continuous (S1);
12. Insulation Class: F;
13. Protection Class: IP54,IP55;
14. Frame material: Cast iron body ;
15. Terminal box : Top or Side
16. Cooling Method: IC411 Standards;
17. Altitude: No more than 1,000 meters above sea level;
18. Packing: 80-112 frame be packaged by carton&pallets
132-355 frame be packaged by wooden case;
19. Certifications: CE, CCC, ISO9001: 2008

Operating Conditions
Ambient temperature	-15ºC≤θ≤40ºC
Altitude	Not exceeding 1000m
Rated voltage 380V or any voltage between 220-760V
Rated frequency	50Hz/60Hz
Protection class	IP55
lnsulation Class	Class F/H
Cooling method	ICO141
Duty	S1 ( continuous)
Connection	Start-connection for up to 3kw, delta-connection for 4kw and above.

Installation Instructions
Installation Diemsions



Advantage
* 100% Copper wire,100% Power Output;
* Competitive Price;
* 100% test after each process and final test before packing;
* 20Years Manufacture Experience;* Energy saving;* Superior Life;* Quiet Operation;* Easy maintance;* Be made of selected quality materals.latest design in entirety;
* OEM Service ;
* CE/ISO Approved;
* 20-30days lead time;
* Main Market: South America, Middle East, Southest Asia, Europe,Africa and so on;
* Have Rich Experience and Strong ability to Develop New Products;
* Have Ability to Design the Products Based on Your Original Samples;
Quality Assurance:
1 year quality warranty and fast after-sales service.

Manufacturing process:
Stamping of lamination Rotor die-casting Winding and inserting - both manual and semi-automatically Vacuum varnishing Machining shaft, housing, end shields, etc… Rotor balancing Painting - both wet paint and powder coating Motor assembly Packing Inspecting spare parts every processing 100% test after each process and final test before packing
Product Parameters

Type	Rated Power		Rated Current(A)	Rated Speed(r/min)	Efficiency(%)	Power Factor(CosΦ)
	KW	HP
Synchronous Speed 3000r/min(2Poles)
Y2-80M1-2	0.75	1	1.83	2840	77.4	0.83
Y2-80M2-2	1.1	1.5	2.58	2840	79.6	0.84
Y2-90S2-2	1.5	2	3.43	2840	81.3	0.84
Y2-90L-2	2.2	3	4.85	2840	83.2	0.85
Y2-100L-2	3	4	6.31	2875	84.6	0.87
Y2-112M-2	4	5.5	8.2	2895	85.8	0.88
Y2-132S1-2	5.5	7.5	11.1	2905	87	0.88
Y2-132S2-2	7.5	10	14.9	2905	88.1	0.88
Y2-160M1-2	11	15	21.2	2935	89.4	0.89
Y2-160M2-2	15	20	28.8	2935	90.3	0.89
Y2-160L-2	18.5	25	34.7	2935	90.9	0.90
Y2-180M-2	22	30	41	2945	91.3	0.90
Y2-200L1-2	30	40	55.5	2955	92	0.90
Y2-200L2-2	37	50	67.9	2955	92.5	0.90
Y2-225M-2	45	60	82.3	2975	92.9	0.90
Y2-250M-2	55	75	101	2975	93.2	0.90
Y2-280S-2	75	100	134	2975	93.8	0.90
Y2-280M-2	90	125	160	2975	94.1	0.91
Y2-315S-2	110	150	195	2980	94.3	0.91
Y2-315M-2	132	180	233	2980	94.6	0.91
Y2-315L1-2	160	200	279	2980	94.8	0.92
Y2-315L2-2	200	270	348	2980	95	0.92
Y2-355M-2	250	340	433	2980	95	0.92
Y2-355L-2	315	430	544	2980	95	0.92
Y2-400M1-2	355	475	618	2975	95.9	0.91
Y2-400M2-2	400	535	689	2982	96.0	0.92
Y2-400M3-2	450	600	775	2982	96.1	0.92
Y2-400L1-2	500	670	853	2982	96.3	0.92
Y2-400L2-2	560	750	952	2982	96.3	0.92
Synchronous Speed 1500r/min(4Poles)
Y2-80M1-4	0.55	0.75	1.57	1390	75.2	0.75
Y2-80M2-4	0.75	1	2.05	1390	79.6	0.76
Y2-90S-4	1.1	1.5	2.85	1390	81.4	0.77
Y2-90L-4	1.5	2	3.72	1390	82.8	0.79
Y2-100L1-4	2.2	3	5.09	1410	84.3	0.81
Y2-100L2-4	3.0	4	6.78	1410	85.5	0.82
Y2-112M-4	4.0	5.5	8.8	1435	86.6	0.82
Y2-132S-4	5.5	7.5	11.7	1440	87.7	0.83
Y2-132M-4	7.5	10	15.6	1440	88.7	0.84
Y2-160M-4	11	15	22.5	1460	89.8	0.84
Y2-160L-4	15	20	30	1460	90.6	0.85
Y2-180M-4	18.5	25	36.3	1470	91.2	0.86
Y2-180L-4	22	30	43.2	1470	91.6	0.86
Y2-200L-4	30	40	57.6	1470	92.3	0.86
Y2-225S-4	37	50	69.9	1485	92.7	0.87
Y2-225M-4	45	60	84.7	1485	93.1	0.87
Y2-250M-4	55	75	103	1485	93.5	0.87
Y2-280S-4	75	100	140	1485	94	0.87
Y2-280M-4	90	125	167	1490	94.2	0.87
Y2-315S-4	110	150	201	1490	94.5	0.88
Y2-315M-4	132	180	240	1490	94.7	0.88
Y2-315L1-4	160	200	287	1490	94.9	0.89
Y2-315L2-4	200	270	359	1490	95.1	0.89
Y2-355M-4	250	340	443	1485	95.1	0.90
Y2-355L-4	315	430	556	1485	95.1	0.90
Y2-400M1-4	355	475	641	1490	95.5	0.88
Y2-400M2-4	400	535	723	1490	95.5	0.88
Y2-400M3-4	450	600	804	1490	95.5	0.89
Y2-400L1-4	500	670	893	1490	95.6	0.89
Y2-400L2-4	560	750	971	1490	96	0.89
Synchronous Speed 1000r/min (6Poles)
Y2-80M1-6	0.37	0.55	1.3	885	62	0.7
Y2-80M2-6	0.55	0.75	1.8	885	73.5	0.72
Y2-90S-6	0.75	1	2.29	910	75.9	0.72
Y2-90L-6	1.1	1.5	3.18	910	78.1	0.73
Y2-100L-6	1.5	2	4	920	79.8	0.75
Y2-112M-6	2.2	3	5.6	935	81.8	0.76
Y2-132S-6	3	4	7.4	960	83.3	0.77
Y2-132M1-6	4	5.5	9.75	960	84.6	0.77
Y2-132M2-6	5.5	7.5	12.9	960	86	0.78
Y2-160M-6	7.5	10	17.2	970	87.2	0.81
Y2-160L-6	1.1	15	24.5	970	88.7	0.81
Y2-180L-6	15	20	31.6	970	89.7	0.83
Y2-200L1-6	18.5	25	38.6	975	90.4	0.84
Y2-200L2-6	22	30	44.7	975	90.9	0.86
Y2-225M-6	30	40	59.3	980	91.7	0.86
Y2-250M-6	37	50	71	980	92.2	0.86
Y2-280S-6	45	60	86	980	92.7	0.86
Y2-280M-6	55	75	105	980	93.1	0.86
Y2-315S-6	75	100	141	980	93.7	0.86
Y2-315M-6	90	125	169	980	94.0	0.86
Y2-351L1-6	110	150	206	980	94.3	0.87
Y2-315L2-6	132	180	244	980	94.6	0.88
Y2-355M1-6	160	200	292	985	94.8	0.88
Y2-355M2-6	200	270	365	985	95.0	0.88
Y2-355L-6	250	340	455	985	95.0	0.88
Y2-400M1-6	280	380	510	990	95.8	0.87
Y2-400M2-6	315	430	574	990	95.8	0.87
Y2-400M3-6	355	475	638	990	95.8	0.87
Y2-400L1-6	400	535	719	990	96.0	0.88
Y2-400L2-6	450	600	796	990	96.5	0.89
Synchronous Speed 750r/min (8Poles)
Y2-80M1-8	0.18	0.25	0.88	630	51	0.61
Y2-80M2-8	0.25	0.34	1.15	640	54	0.61
Y2-90S-8	0.37	0.5	1.49	660	62	0.61
Y2-90L-8	0.55	0.75	2.18	660	63	0.61
Y2-100L1-8	0.75	1	2.39	680	71	0.67
Y2-100L2-8	1.1	1.5	3.32	680	73	0.69
Y2-112M-8	1.5	2	4.5	690	75	0.69
Y2-132S-8	2.2	3	6	690	78	0.71
Y2-132M-8	3	4	7.9	710	79	0.73
Y2-160M1-8	4	5.5	10.3	710	81	0.73
Y2-160M2-8	5.5	7.5	13.6	720	83	0.74
Y2-160L-8	7.5	10	17.8	720	85.5	0.75
Y2-180L-8	11	15	25.1	730	87.5	0.76
Y2-200L-8	15	20	34.1	730	88	0.76
Y2-225S-8	18.5	25	40.6	730	90	0.76
Y2-225M-8	22	30	47.4	740	90.5	0.78
Y2-250M-8	30	40	64	740	91	0.79
Y2-280S-8	37	50	78	740	91.5	0.79
Y2-280M-8	45	60	94	740	92	0.79
Y2-315S-8	55	75	111	740	92.8	0.81
Y2-315M-8	75	100	151	740	93	0.81
Y2-315L1-8	90	125	178	740	93.8	0.82
Y2-315L2-8	110	150	217	740	94	0.82
Y2-355M1-2	132	180	261	740	93.7	0.82
Y2-355M2-8	160	200	315	740	94.2	0.82
Y2-355L-8	200	270	388	740	94.5	0.83
Y2-400M1-8	250	340	494	745	95.0	0.81
Y2-400M2-8	280	380	552	745	95.0	0.82
Y2-400L1-8	315	430	592	745	95.0	0.85
Y2-400L2-8	355	475	692	745	95.0	0.85
Y2-400L3-8	400	535	780	745	95.0	0.85
Synchronous Speed 600r/min (10Poles)
Y2-315S-10	45	60	100	590	91.5	0.75
Y2-315M-10	55	75	121	590	92	0.75
Y2-315L1-10	75	100	162	590	92.5	0.76
Y2-315L2-10	90	125	191	590	93	0.77
Y2-355M1-10	110	150	230	590	93.2	0.78
Y2-355M2-10	132	180	275	590	93.5	0.78
Y2-355L-10	160	200	334	590	93.5	0.78
Y2-400M1-10	200	270	404	595	95.0	0.80
Y2-400M2-10	250	340	495	595	95.0	0.81
Y2-400L1-10	280	380	554	595	95.0	0.82
Y2-400L2-10	315	430	630	595	95.0	0.82

Gexin Electromechanical Co., Ltd., which has 150 employees, an annual output value of $1800w and an area of 26000 square meters.

FAQ
1: Are you a factory or just a trading company?
A1: Manufacturer,and we focus on the development and production of electric motors for more than 20 years.

Q2: Is customized service available?
A2: Of course, OEM & ODM both are available.

Q3: How can I get the quotation?
A3: Leave us message with your purchase requirements and we will reply you within one hour on working time. And you may contact us directly by Trade Manager.

Q4:Can I buy one as sample?
A4: Yes, of course.

Q5: How about your quality control?
A5: Our professional QC will check the quality during the production and do the quality test before shipment.
Q6: What is your payment term?
A6: 30% T/T in advance, 70% balance when receiving B/L copy Or 100% irrevocable L/C at sight.

Q7: What is your lead time?
A7: About 20-30 days after receiving advance deposit or original L/C.

Q8: What certificates do you have?
A8: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.

Q9: What warranty do you provide?
A9: One year, during the guarantee period, we will supply freely of the easy damaged parts for the possible problems except for the incorrect operation. After expiration, we supply cost spare parts for alternator maintenance.
