High Quality Digital Multimeter 6000 Counts Voltmeter Measures Multimeter

Product Description

High Quality Digital Multimeter 6000 Counts Voltmeter Measures Multimeter
Product Description

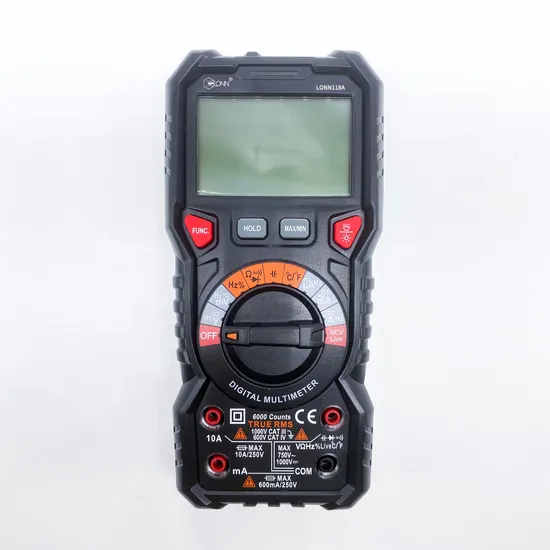

WIDE APPLICATIONS - LONN- HT118A Multimeter measures up to 600V AC/DC voltage, 10A AC/DC current and 60 MOhms resistance, electrical tester also tests temperature, capacitance, frequency, duty-cycle, wire on-off, and test diodes and continuity. EASY OPERATION - Switch the dial to the function you need, and the LED lights on the jacks will shine accordingly. To plug in the leads is easy. Autoranging saves you the hassle of having to know which range of value. Large 2.9" LCD backlight display, easy-to-read digits offer a 6000-count resolution. MULTI-FUNCTION - Non-contact voltage testing and Live function with sound and light alarm. Flashlight on the back ensures easy use in dimly lit places. Min/Max/Average to record signal fluctuations. Stable kickstand, Pen slot on the back, Low battery prompt, Data retention, Auto power-off. SAFETY FIRST - IEC Rated CAT III 1000V, CAT IV 600V, CE, RoHS certified. Anti-Burn with double ceramic fuse and thermistor protection circuit. High Voltage Protection is active on all ranges. Double insulated unit. Silicone protective case prevents it from falling damage. AFTERSALES - Lonn provides a 24-Month after-sale service, lifetime technical support. Please feel free to contact us if you have any concerns. Package includes multimeter, test leads, thermocouple, batteries and user manual. ( Note: Please take off the cap before using the leads)

Specification

Function	Range	Accuracy
		Lonn-118A
DC Voltage	600mV	±(0.5%+3)
	6V/60V/600V/1000V	±(0.5%+3)
AC Voltage	600mV	±(1.0%+5)
	6V/60V/600V/750V	±(1.0%+5)
DC Current	600uA/6000uA/60mA/600mA	±(0.8%+3)
	6A/10A	±(1.2%+3)
AC Current	600uA/6000uA/60mA/600mA	±(1.0%+3)
	6A/10A	±(1.5%+3)
Frequency	10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz	±(1.0%+3)
Resistance	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ	±(0.8%+3)
Capacitance	10nF/100nF/1uF/10uF/100uF/1mF/10m	±(4.0%+3)
	100mF	±(5.0%+5)
Duty	1%~99%	±(1.0%+2)
Counts		6000 Counts
Temperature		-40~1000 ºC -40~1832 F
Auto/Manual range		Auto
Display		LCD dual diaplay
Bargraph		√
Max/Min hold		√
Bandwidth		1kHz
Battery test(1.5v/9v)
Live on-off test (live line voltage identification)		√
Live test (sound and light alarm)		√
NCV (sound and light alarm)		√
Diode test		√
Continuity (sound and light alarm)		√
Data hold		√
True RMS		√
Low battery indication		√
Flashlight		√
Double color blacklight		√
Input jack LED indicate		√
Work light		√
Power		2*AA batteries
Weight		Approx. 350g
Size		188mm*88mm*58mm
Safety Rating		EN610-1,-2-030 EN61010-2-033,
		EN61326-1 CAT III 1000V, CATIV 600V

Xi'an Lonn M&E Equipment Co., Ltd. is located in Xi'an, China where is the hometown of the world's eighth wonder Terracotta Warriors and Horses.
We are a professional manufacturer specializing in testing products for more than 8 years. We have professional research, development ,production and service teams. We highly focus on the quality of products. we have gained really good reputations for good quality from our buyers.


FAQ 1. What's your MOQ?
Our MOQ is 1 piece.

2. What's your warranty?
One year.

3.Is OEM/ODM available?
Yes, both OEM and ODM are available.

4. Can you send the product to my address?
Yes, we have various delivery terms like DHL. UPS, FEDEX and etc...

5. Can I get a lower price for a bulk buy?
Yes, we offer a big discount for a bulk orders.

6. Is it easy to use?
Yes, it's very handy and easy to use.
