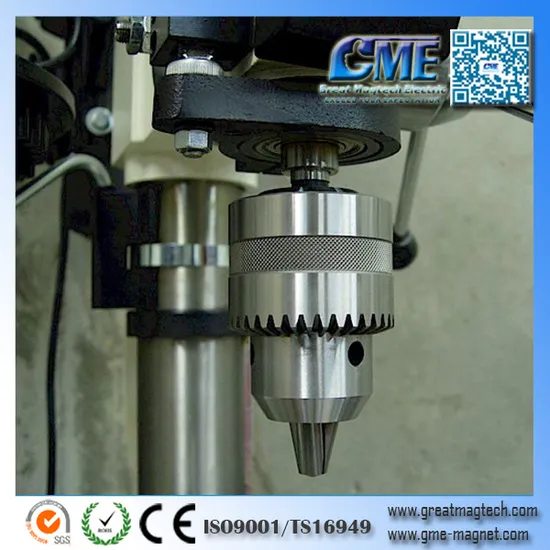

High Quality Drill Machine Chuck
Basic Info.
Model NO.
as customer′s request
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
CE, RoHS
Condition
New
Size
as Customer′s Request
Package of Magnetic Chucks
Carton, Wood Case
Application of Magnetic Chucks
Industrial Application
Pull Force of Magnetic Chucks
as Your Requirement
Transportation
by Sea, by Express, by Air
Certificate
Ce, RoHS, SGS
Lead Time
7-15 Days
Transport Package
Carton, Wood Case
Specification
Customized
Trademark
GME
Origin
Xiamen
HS Code
8505901000
Production Capacity
100000 Sets
Product Description
High quality drill machine chuckAdvantages:
1.Tool Steel
2. High accuracy:<0.15mm.
3. High quality and competitive price, delivery in time.
4. Durable in use. The design of drill makes it more suitable for milling machine and integrated cutting machine.
| Model No. | L (mm) | ØD (mm) | ØD1 (mm) | Spanner No. | Weight (Kgs) |
| BT30 - CHU8 - 75 | 75 | 37 | 46 | 12802 | 1 |
| BT30 - CHU13 - 90 | 90 | 50 | 46 | 12806 | 1.5 |
| BT40 - CHU8 - 85 | 85 | 37 | 63 | 12802 | 2 |
| BT40 - CHU13 - 95 | 95 | 50 | 63 | 12806 | 2.5 |
| BT40 - CHU13 - 130 | 130 | 50 | 63 | 12806 | 2.6 |
| BT40 - CHU13 - 150 | 150 | 50 | 63 | 12806 | 2.7 |
| BT40 - CHU16 - 120 | 120 | 57 | 63 | 12808 | 3 |
| BT50 - CHU13 - 110 | 110 | 50 | 100 | 12806 | 4.4 |
| BT50 - CHU13 - 150 | 150 | 50 | 100 | 12806 | 5.5 |
| BT50 - CHU16 - 110 | 110 | 57 | 100 | 12808 | 4.4 |
| BT50 - CHU16 - 130 | 130 | 57 | 100 | 12808 | 5.5 |
| BT50 - CHU16 - 145 | 145 | 57 | 100 | 12808 | 5.5 |
| Model No. | L (mm) | ØD (mm) | ØD1 (mm) | Spanner No. | Weight (Kgs) |
| SK30 x CHU8 - 80 | 80 | 37 | 50 | 12802 | - |
| SK30 x CHU13 - 100 | 100 | 50 | 50 | 12806 | - |
| SK30 x CHU16 - 125 | 125 | 57 | 50 | 12808 | - |
| SK40 x CHU8 - 75 | 75 | 37 | 63.55 | 12802 | 1.3 |
| SK40 x CHU13 - 100 | 100 | 50 | 63.55 | 12806 | 1.7 |
| SK40 x CHU16 - 115 | 115 | 57 | 63.55 | 12808 | 2 |
| SK50 x CHU13 - 100 | 100 | 50 | 97.5 | 12806 | 4.1 |
| SK50 x CHU16 - 105 | 105 | 57 | 97.5 | 12808 | 4.3 |
| Model No. | Capacity (mm) | L (mm) | clapm length(mm) | ØD1 (mm) | Weight (Kgs) |
| NT30-APU13 | 0~13 | 110 | 80.5 | 50.5 | 1.5 |
| NT40-APU13 | 0~13 | 90 | 80.5 | 50.5 | 1.8 |
| NT40-APU16 | 3~16 | 115 | 85 | 57 | 2.2 |
| NT50-APU13 | 0~13 | 125 | 80.5 | 50.7 | 2.5 |
| NT50-APU16 | 3~16 | 135 | 85 | 57 | 2.8 |
| C20-APU13 | 0~13 | 141 | 81 | 50 | 0.99 |
| C25-APU13 | 0~13 | 161 | 81 | 50 | 1.13 |
| C32-APU13 | 0~13 | 162 | 81 | 50 | 1.37 |
| MT3-APU13 | 0~13 | 180 | 81 | 50 | 1.09 |
| MT4-APU13 | 0~13 | 200 | 81 | 50 | 1.48 |
| R8-APU13 | 0~13 | 182 | 81 | 50 | 1.23 |
