2023 Gubot New Diamond Cut Wheel Repair Machine Horizon Model for Low Price
| US$9,500.00-10,500.00 | 1 Piece (MOQ) |
Basic Info.
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Structure
Flat Bed Lathe
Showroom Location
United Kindom, France, Sweden, Germany
Marketing Type
New Product 2021
Key Selling Points
Easy to Operate
Range of Spindle Speed
50-2000 Rpm
Motor
Servo Motor
Max. Size of Alloy Wheel
24 Inch
Transport Package
Wooden Carton
Specification
1820*1270*1700mm
Trademark
Gubot
Origin
China
HS Code
8458110090
Production Capacity
50
Product Description

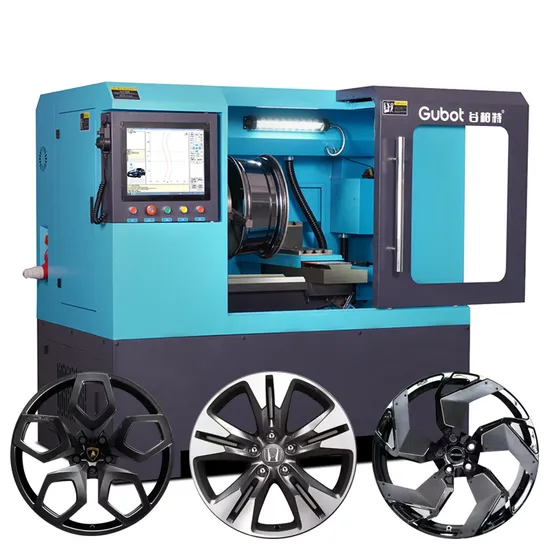

In order to meet the Requested of the market, we developed the horizontal wheel repair machine, LSB300. Based on years of experience in the manufacture, sales and combined with users' feedback, we have carried out a variety of user-friendly designs. Its floor space is just 1.65m² while the cutting size up to 24''. Gantry structure, cast iron body, 6 linear rails, electric tools' holder, multi-touch PC panel, high level consideration of security and automation designs make this machine being one of the most desirable diamond cutting wheel repair machine for wheel repair shop owners
| Items | Unit | Specifications |
| Max.swing over bed | Mm | Ф700 |
| Max. Size of alloy wheel | Inch | 24 |
| Cutting feed speed (mm) | mm/min | 0.1-1800 |
| Range of spindle speed | rpm | 50-2000 |
| Spindle speed control | | Automatic |
| Moving distance of x axisand Z axis | mm | (Z)long 800 (X)cross 700 |
| Moving speed of X axisand Z axis | mm/min | (Z)long 18000 (X)cross 12000 |
| Spindle Length | KW | 3 |
| Moving track | Hign quality | Import rails |
| Motor | | Servo motor |
| Wheel positioning accuracy | mm | 0.01 |
| Wheel positioning repeatedaccuracy | mm | 0.01 |
| Weight | Kg | 2000 |
| Size(L*W*H) | mm | 1820*1270*1700 |
Our machine support multi-langue to select, you can operate it more convenience
