Factory Direct Universal High Pressure Water Purified Membrane Filter Side Port 8inch FRP RO Membrane Housing for RO System Water Treatment Machine

Product Description

Product Description The mold of Winder-G brand FRP Membrane Housing is specially customized and processed, with a surface that is nitride plated with chrome, making it shiny and highly durable. The special winding production process results in a mirror-like inner wall of the membrane housing, facilitating the installation and removal of the membrane element and ensuring no leakage issues. The special design of the end fittings of the membrane housing ensures a more reliable and durable product, as well as a safer and more convenient usage experience, with stable quality.
The 8" side port FRP membrane housing is suitable for operating pressures of 300 psi and 450 psi, and can accommodate 1-8 core membrane elements. Our FRP membrane housing is compatible with international standard membrane elements such as DOW, HYDRANAUTICS, OSMONICS, KOCH, TORAY, CSM, VONTRON, BDX, etc. All our products have passed various certifications such as ISO 9001, ISO 14001, OHSAS 18001, drinking water hygiene, and CE certification. They can be applied in various fields with complex media environments.
With its compatibility with international standard membrane elements, the FRP membrane housing can be used in various industries and applications. The product has undergone rigorous testing and certification processes, including ISO 9001, ISO 14001, OHSAS 18001, drinking water hygiene, and CE certification, ensuring its quality and safety.
In addition to its functional advantages, the FRP membrane housing also offers aesthetic options. The standard color is white, customers can choose from a range of other colors to suit their specific requirements.

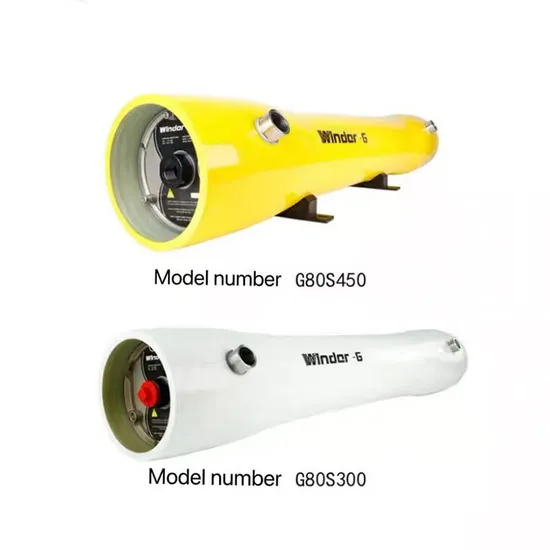

	8Inch side port/lower pressure
Model	WG80S300/450
Design Pressure	300/450PSI
Element Quantity	1-8
Operating pH Range	pH 3-11
Operating Temperature	-10ºC-49ºC
Feed/Concentration Port	1.5"/2"
Permeate Port	1"

Our Advantages The inner wall of the membrane housing is as bright as a mirror, which can facilitate the disassembly and assembly of the membrane core; it can ensure that the membrane housing has no leakage problem.
The design of the red plug: the production material is ABS modified raw material, which is more durable; the design of the four corners is more convenient and quick to install.
π-shaped silicone ring: using food street silicone raw materials, this design is double-sealed, double-safe, leak-proof and reliable, and the quality is more stable
There is a unique ID code on the inner wall of each membrane housing, which is used as an anti-counterfeiting mark and can also make the model of the membrane housing clear at a glance.
What clients say?
Company Profile
HeBei ChengDa Water Technology Co., Ltd. (Abbreviation: Chengda Water Technology), was found in 1976 and is a professional company specializing in the production and export of FRP pressure vessels. Factory covers an area of 20 acres and has 200 employees, have a professional team of engineers. We are a high-tech enterprise engaged in water treatment products research and development, production and sales.
Registered trademark brand: Winder®.Winder - G®.ARCLION ®.
Brand products: FRP Membrane Housing, Frp Softener Water Tank, ST/DTRO FRP Housing, Tubular Membrane Housing, High Flow Cartridge Filter Housing, Online Cleaning Pressure Vessels, Fast dismantle FRP Membrane Housing, Reverse Osmosis Membrane Element; Filter Housing, FRP non - standard (customized) tanks, Mixed bed tank (ion exchange tank), PE BrineTanks, Oxygen Cones, Nitrogen Sealed Water Tanks, Filter Sand Tanks, Ion Exchange Resins, Water Distributor and other one-stop water treatment manufacturers.
Chengda Water Technology takes "Higher Technology, Cleaner Water, Cleaner Future" as our corporate purpose. Our R&D team has joined forces with Wuhan University of Technology to use more advanced winding equipment and production technology to produce world-class products.
The products have passed the CE certification, NSF certification, the international ISO9001 quality management system certification, and the domestic hygiene license approval documents and other standards and specifications. We also have a number of self-developed products and production equipment, and become a leader in the water treatment FRP pressure vessel manufacturing industry.
Application
Exhibition
Certifications
FAQ
Q: Can I visit your factory? A: Sure,welcome to visit our factory.
Q: What about the lead time for mass production?
A: Our production time: 10-15 days for regular models 3*40HQ.
Q: What is your products delivery time? A: For common products, delivery time is within 7 days. For customized orders, delivery time is within 30 days.
Q: What is your terms of payment?
A: 30% T/T in advance ,70% balance before loading from factory.
Q: Can you put our Logo on the product? A: Sure,we can offer logo customized service. More than 200pcs, logo printing is for free.
Q: What about the lead time for mass production? A: Honestly, it depends on the order quantity and the season you place the order. But as a professional manufacturer, we can always achieve your deadline.
Q: Can you offer sample before mass order?is it free or extra? A: Yes samples will be kindly arranged for quality check, we could offer the sample for free charge but do not pay the cost of freight.please contact us for more details.
