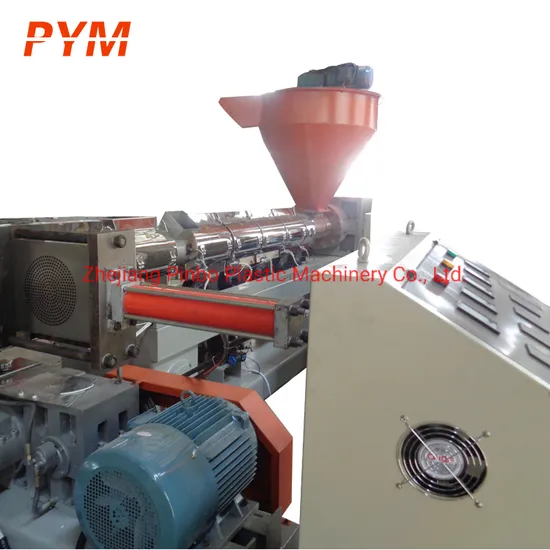

China Factory supplier Waste Plastic Granules Making Machine

Product Description

This machine is suitable for regeneration and granulation of waste plastics, as HDPE, LDPE and PP, etc. Its equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control. The granulating crusher uses adjustable speed motor, pelleting with and extruding machine at the same discharging speed synchronistically. The unit is easy to operate, with a high output, steady performance and favorable economic benefit.
The Main/ First stage
1. Screw and barrel
Screw dia150mm, L/d 22: 1, one set, based on 38CrMoALa material(HV >=950-1100)
2. Gearbox ZLYJ 280
3. Motor 45KW, the brand is Huadong, made in Shanghai, quite a good brand in China
4. Inverter 45KW, the brand is Painier, quite a good brand in china
5. Screen changer with hydraulic pump, 250mmx250mm
The Auxiliary/ Second stage
6. Screw and barrel
Screw dia130mm, L/d 10: 1, one set, based on 38CrMoALa material(HV>=950-1100)
7. Gearbox ZLYJ 200
8. Motor 18.5KW, the brand is Huadong, made in Shanghai, quite a good brand in China
9. Inverter 18.5KW, the brand is Painier, quite a good brand in china
10. Screen changer with hydraulic pump, 250mmx250mm
The other parts:
11. Cutting machine in speed change, 4kw, one piece, (the knife is made in alloy ) the knife is 200mm width, with 24 pieces
12. Water tank, one piece, in stainless
13. Electrical box, one piece, the brand is Chint, famous brand in China
14. Container, one piece
15. Heating ring: Ceramic heating
Why choose us?
A> long time experience and history
B> long time nitriding treatment and heating treatment by itself
C>advanced Fanuk series CNC computer-controlled milling machines
D>depth hole drilling machine in 18meters length, which ensure the
Straigtnss of barrel inside.
E> CAD drawing confirmation before start making
F> Prompt after sale service
G>Land owner and registration capital 25, 000, 000RMB
H> prompt after-sale
Office:
1 Our Strength: We have an experience of more than 20 years of manufacturing and designing Plastic machines, varied Screws and Barrels and spares. We concentrate on improving quality, updating design, enhancing service and after service.
2 Location advantage: Located in -Ruian Town in Wenzhou City, near to Ningbo Port and Shanghai Port.
3 Market areas: Global sales network reaching South America, Eastern Europe, Southeast Asia, Africa, Oceania and the Middle East etc. Welcome to visit our company.
If there is any problem, you can contact with us at any time, we will reply you as soon as possible! Welcome to visit us at any time!
We promise: We assure the customer benefits, We provide competitive price, We Emphasis On Cooperation

Model	SJ-B90	SJ-B100	SJ-B110	SJ-B120
Type Diameter of Screw Stem	φ90	φ100	φ110	φ120
Major Diameter Ratio of Screw Stem	L/D 20:1 -22:1	L/D 20:1 -22:1	L/D 20:1 -22:1	L/D 20:1 -22:1
Rational Speed of Screw Stem	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Main Motor Power	22kw	30kw	37kw	45kw
Output	68kg/h	95kg/h	120kg/h	135kg/h
Weight of overall(kg)	2600kg	2800kg	3000kg	3200kg
Cover dimensions (l×w×h) (mm)	4000×1500×1800	4000×1500×1800	4000×1500×1800	4000×1500×1800
