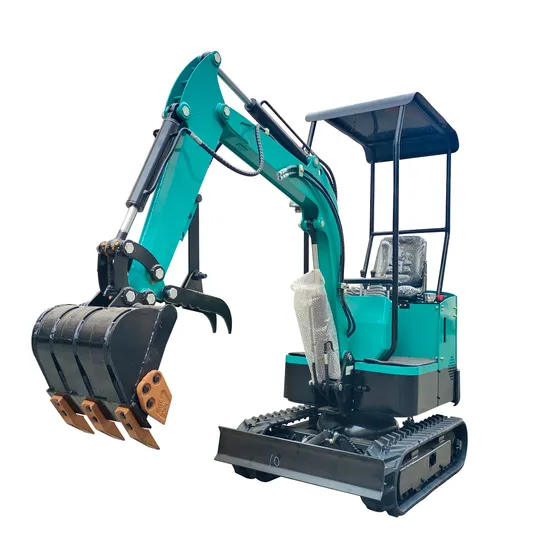

China Factory Direct Sale Reliable Quality Mini Digger 1000kg Euro V Stage Mini Hydraulic Crawler Excavator
| US$3,600.00-3,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ASG10
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.023m3
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Transport Package
Nude
Specification
2840*880*2220mm
Trademark
AHSERGO
Origin
China Shandong
HS Code
8401200000
Production Capacity
3000
Product Description
Product DescriptionThe mini crawler excavator is an economic type excavator with EURO V engine, the emission of engine suitable for the environment protection and low fuel consumption, The machine with blade, with rubber track , the track can change to steel track, with hydraulic oil radiator and canopy ,compact suitable for small space working.
Product Parameters
| Engine | Travel System | |||||||||
| Model | KOOP( KD192F-1) | Travel motors | SMT310 | |||||||
| Type | Direct injection, air cooled, natural intake | Support roller quantities | 2×2 | |||||||
| Carrier roller quantities | 0 | |||||||||
| No.engine cylinder | 1 | Travel speed | 2(km/h) | |||||||
| Bore and stroke | 92x75 | Drawbar pulling force | 8.3KN | |||||||
| Displacement | 0.499 | Gradeability | 58%(300) | |||||||
| Power output | 7kw/3000rpm | Rubber track width | 180mm | |||||||
| Max. torque | 27N.m/2200rpm | Rubber track Thickness | 40mm | |||||||
| Hydraulic System | ||||||||||
| Pump | 2ZGPA0D6S0L0 | |||||||||
| Type | Gear pump | |||||||||
| Max. discharge flow | 18 (L/min) | |||||||||
| Main control valves | DL80 | |||||||||
| Oil cooler | Air cooled type | |||||||||
| Swing System | Refilling Capacity & lubrication | |||||||||
| Swing motor | OMR200 | Fuel tank | 7L | |||||||
| Swing motor type | Gerotor motor | Engine oil | 1.2L | |||||||
| Swing speed | 13 r/min | Hydraulic oil tank | 14.5L Oil Tank Level | |||||||
| 21.5L Hydraulic System | ||||||||||
| Bucket | ||||||||||
| Bucket capacity | 0.023m3 | |||||||||
| Bucket width | 400 mm | |||||||||
| Working ranges | ||||||||||
| Boom length | 1500m | |||||||||
| A | Max. digging height | 2600mm | ||||||||
| B | Max. dumping height | 1830mm | ||||||||
| C | Max. digging depth | 1715mm | ||||||||
| D | Max. vertical digging depth | 1590mm | ||||||||
| E | Max. digging radius | 3065mm | ||||||||
| F | Max. digging radius at ground level | 2960mm | ||||||||
| G | Min swing radius of work equipment | 1480mm | ||||||||
| H | Swing radius at tail | 800mm | ||||||||
| Digging Force | ||||||||||
| Arm length | 820mm | |||||||||
| A | Bucket digging force | 7.2 KN | ||||||||
| B | Arm digging force | 4.6 KN | ||||||||
| Overall Dimensions | ||||||||||
| A | Overall length | 2840mm | I | Track grounding length | 900mm | |||||
| B | Ground contact length(Transportation) | 2611mm | J | Track length | 1233mm | |||||
| C | Overall height(to top of boom) | 1130mm | K | Track gauge | 660mm | |||||
| D | Overall width | 880mm | L | Track width | 840mm | |||||
| E | Overall height(to top of cab) | 2220mm | M | Track Shoe width | 180mm | |||||
| F | Counterweight ground clearance | 385mm | O | Counterweight height | 1025mm | |||||
| G | Min. Ground clearance | 132mm | ||||||||
| Operating Weight and Ground Pressure and system pressure | ||||||||||
| Operating weight includes basic machine | ||||||||||
| Operating weight | 940kg | |||||||||
| Ground pressure | 20 KPa | |||||||||
| Hydraulic system pressure | 16Mpa | |||||||||
Detailed Photos
MAIN PARTS:KOOP engine with EURO V emissionTraveling motorHydraulic oil radiatorsingle main pump
