Inside (Double Workpiece) Automatic Polishing Machine, Rotating Double-Station Workbench Design/Pot, Double Workpiece Structure, Astic Material Polishing Wheel

Product Description

Product Description

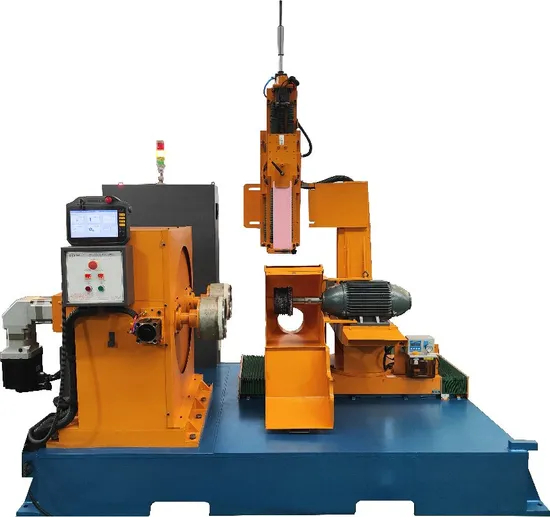

2MB4140-ZD inside (double workpiece) automatic polishing machine is a new polishing equipment of our company, it has the characteristics of a multi-purpose machine, easy to operate, reliable performance, safe and practical; The machine adopts double workpiece structure to realize the lifting and lowering of the workpiece while polishing, effectively improving the work efficiency.
The machine can be installed with elastic material polishing wheel, it can be rough polishing, fine polishing or polishing process on the inside of metal utensils.
This machine is suitable for polishing stainless steel, aluminum, copper and other metal utensils. When working, first set the metal ware to be polished on the mold, so that the workpiece is sucked tight, adjust the stroke and distance, press the automatic start button, you can carry out the polishing work of the part that needs to be polished, and automatically return when the set polishing time is reached.

Maximum diameter of polishing wheel (side)	The center hole is 25mm, the maximum diameter is 200mm
Polishing wheel rotation speed	2900 r/min
Workpiece rotation speed	30~150 r/min
Maximum workpiece diameter	Dia:(160 ~ 320) × H:(<=250) mm
Motor power	Throwing side motor 7.5KW; Workpiece motor 0.75KW ×2; Transposition motor 3KW; Transverse servo motor 2KW; Servo compensation motor 1.5KW; Wax servo motor 0.75KW
Total machine power	16.25 kw
Overall size	(L×B×H)2884mm×1739mm×3146mm

Company Profile

Packaging & Shipping
FAQ
Q1: How is the warranty?A1: Warranty time is 12 months after BL date.Q2: Can we visit your factory before order?A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking. Q3: Do you have a stock?A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.Q4: What's the MOQ?A4: One set only.Q5: Can you provide customized machines?A5: Yes, we can design and manufacture according to your specific requirements.
