Woodworking Plywood Hot Press Machine Film Faced Plywood Machine

Product Description

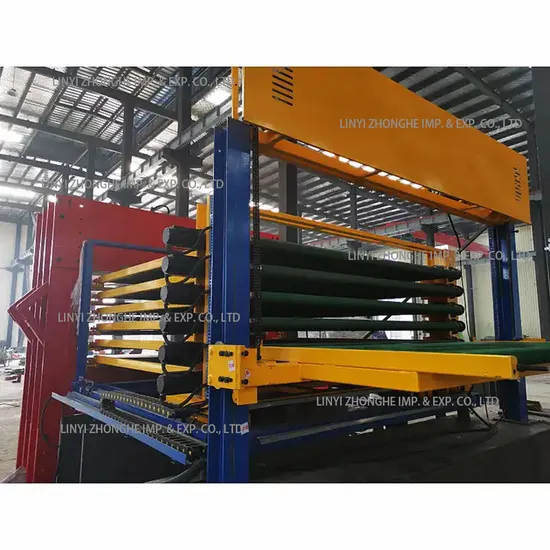

film faced plywood hot press machine
Detailed Photos
Product Parameters

Model	YQHP4X8/500/15
Max pressure	500 Tons
Board feeding direction	Transverse
Layers	15Layers
Layer spacing	70mm
Number of hot press plate	16pcs
Hot press plate size	2700*1370*42mm
Cylinder	2*ø360mm*1050mm
	1*ø180mm*1050mm
Stroke	1050mm
Compression resistance	≤25 Mpa
Total Power	7.5KW+18.5kw
Low pressure pump flowing	250ml/r*1pcs
high pressure pump flowing	10ml/r*1pcs
Overall dimension	3550mm*1370mm*4650mm
Working methods	Full automatic
Composite frame	Assembled
Upper and bottom beam	900mm
Middle beam	400mm
Thickness of the frame	35 mm
Weight	About 33Tons

Factory Display

Packaging & Shipping
FAQ

1. Rich experience and professional design
We have abundant experience in plywood production, also has many years exporting experience. Each equipment location,passage will be designed reasonably to meet safety production.
2. Competitive price
ZHONGHE has own factory,with the same configuration,the price is competitive.And we are familiar with the Chinese market,our suppliers provide high-quality cost-effective accessories.
3. Timely after-sale service
We have over 15 skilled technicians offer after-sale service, will be sent to the customer's factory to assist in the installation and debugging of the flooring production line until it runs well,and asked for quick responses to customer questions.
4. One-stop solution
ZHONGHE provideS one-stop service, including market analysis and professional technical consultation, raw materials ,equipment installation, personnel training.Professional after-salesservice team,renovation of old equipment,make turnkey projects.
5. Quality control
Strict quality control of equipment in production and before leaving the factory, and a complete quality management system for purchased parts.Customers are always welcome to make videos or come to the factory to know the production status.
