Window Machine PVC Profile Cutting Saw Double Head Digital Display Cutting Saw

Product Description

Product Description

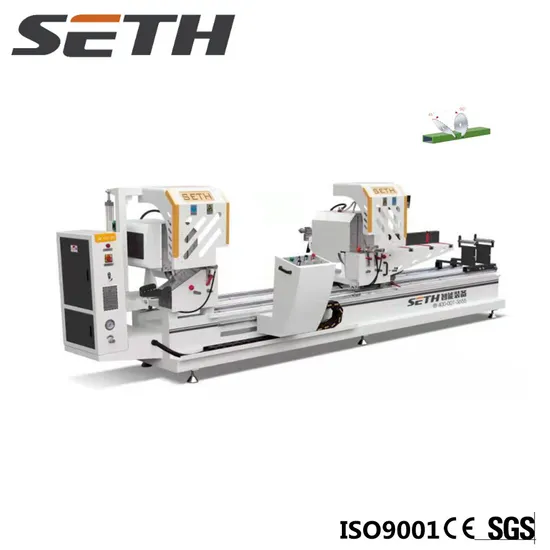

CNC double head digital display precision cutting saw for aluminum PVC uPVC profile
1. Mainly used for cutting industrial aluminum profiles, aluminum doors and windows,
curtain wall materials, and also used for cutting and blanking PVC and wood profiles.
2. Imported digital magnetic grid system automatically displays the
cutting length, which has high precision of repeated positioning and
convenient operation.
3. High-quality carbide saw blades for aluminum materials are selected,
with an outer diameter of 500, high linear speed and high machining
accuracy.
4. The high-precision spindle makes the saw blade rotate stably and
effectively improves the surface quality of the workpiece.
5. Gas-liquid damping cylinder realizes uniform feed speed regulation and
stable movement.
6. Adopt micro spray cooling device.
7. The machine head can rotate automatically, position and clamp in two
directions, and can work independently with a single machine head.
Automatic opening and closing of protective cover makes operation
safer.
8. The saw blade automatically swings at an angle of 45° and 90° , and
the protective cover automatically opens and closes, which makes the
operation safer.
Detailed Photos

Power	380V 50HZ
Saw head motor	2×3KW/ 2840r/min
Working pressure	0.6 ~ 0.8mpa
Air consumption	60L/min
Saw length	Max4300mm MIN420mm
Saw width	Max 140mm
Maximum cutting slope	45°140×220mm 90°140×300mm
Sawing Angle	90°, 45°
Feed speed	stepless speed regulation 0-3m/min
Saw blade specifications	ø500 × ø30 × 4.4× Z120
Dimensions	5800×1800×1500 mm
Weight	1750 kg
Repeat constant length accuracy	≤ 0.05mm
Profile cutting Angle tolerance	±3 '
Cutting plane flatness	≤ 0.1m
Roughness of cutting surface	Ra12.5μm
