TPR EVA Thermoplastic Double Screw Extruder for Shoe Sole

Product Description

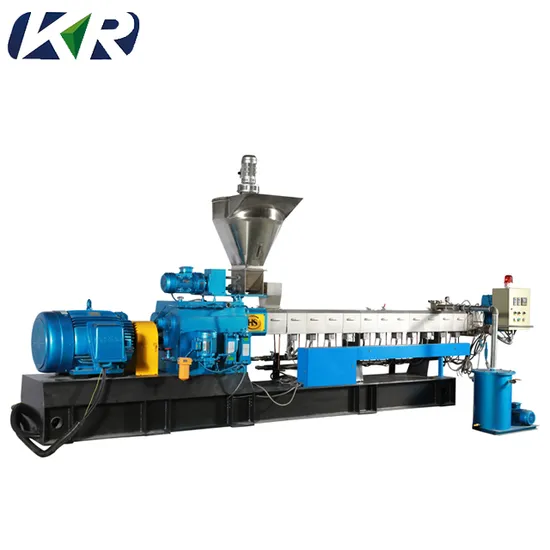

TPR EVA Thermoplastic Twin Screw Extruder for Shoe Sole
Product Description:
The machines are designed by suing the "toy bricks" principle, the screw configuration, barrel setup, L/D or mode of feeding and venting, screen changing, way of granulating, and the control mode can be optimally adjusted according to different materials properties and requirements in consideration of the versatility in each general applications.
Details: The screw elements are designed with agile combination and interchangeablity, and they are possessed with high corrosion-resistant and high fuctions. Using suitable die head for pelletizing, such as water-ring cutter, under water cutting and hot face cutting.
High efficient force feeder ensures stable high capacity material feeding, low power consumption. High torque gearbox reduce the motor speed to the speed of the screw shafts and distributes it to the two output shafts.
Cutting System:
Various types of cutting method to satisfy your different requires.
Other Models for Reference: Parameter table

Mode	Screw Diameter	L/D	Rotary Speed	Power	Output
TSH-40B	41mm	32-52	600 r/min	45-55	150-220kg/h
TSH-52B	51.5mm	32-60	600 r/min	90-132	270-400kg/h
TSH-65B	62.4mm	32-64	600-800 r/min	110-160	350-500kg/h
TSH-75B	71mm	32-64	600-800 r/min	200-250	600-800kg/h
TSH-95B	93mm	32-64	600-800 r/min	600-800	1200-1600kg/h

Company Introduction:
Nanjing Haisi Extrusion Equipment Co., Ltd. is a professional manufacturer of granulating extrudes for coloring/ dyeing, filling masterbatch production, as well as plastic modification and compounding, plastic recycling.
Our machines are widely used in China mainland, and hav been exported to over 30 countries and places all over the world, Surely you will get professional machines and services here!
