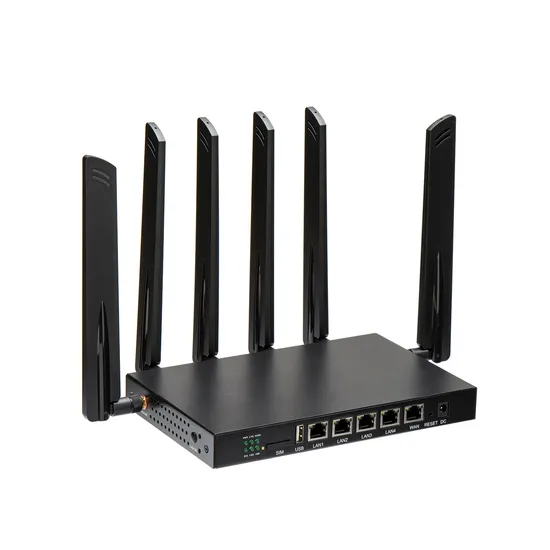

Huasifei Gigabit Dual Band 5g Openwrt Router Chipset Mt7621A 1200Mbps WiFi Router

Product Description

Product Description Hardware.
WS1208V2 uses the latest MMT7621A wireless solution with clock frequency up to 880MHZ, providing 5 Gigabit auto MDI/MDIX Ethernet ports, 1 x USB 2.0 port, 1 x PCI-E, 1 x M.2, 1 x Micro SD card.
Wireless.
Support IEEE802.11AC/N/G/B/A wireless protocol, maximum wireless rate up to 1200Mbps, 6×5Dbi high gain antennas for better performance and coverage
Software
OpenWRT pre-installed.
Firmware support rooter.
Firmware support Quectel EC25 series EM/EP06 BG96 EM12 EM20 EM160 R500Q R502Q
Fibocom L850 L860 FM150 module, etc.
Modem band lock support
specifications

WS1208V2 Hardware Specifications
Hardware Specifications	MT7621A Dual Core 880MHZ DDR3 memory 256MB SPI FLASH 16MB
Protocol Standards	IEEE802.11n/g/b/a/ac,IEEE802.3/802.3u
Wireless Rate	Dual-band concurrent up to 1200Mbps
Operating band	2.4GHz 5.8GHz
4G 5G Modem
Output Power	11n:17dBm±1dBm 11g: 17dBm±1dBm 11b: 19dBm±1dBm 11a: 19dBm±1dBm 11ac: 18dBm±1dBm
Receiving sensitivity	11N HT20 MCS7: -72dBm 11N HT40 MCS7: -69dBm 11G 54Mbps: -74dBm 11B 11Mbps: -86dBm 11A 54Mbps: -73dBm 11AC VHT20 MCS8: -66dBm
Antenna	2 x 5dbi high gain omni-directional wifi antennas, 4 x 5dbi high gain omni-directional 4G5G antennas
Interface	1*10/100M/1000M WAN port with automatic MDI/MDIX 4*10/100M/1000M LAN ports, auto MDI/MDIX 1*USB 2.0 port 1*PCI-E 1*M.2 1*SIM card 1*SD card
LED	power/2.4G/5.8G/WAN/LAN1/LNA2/LNA3/LNA4
Button	1 Reset button
Power adapter	DC 12/2000mA
Maximum power consumption	< 24W
Color scheme	Black
Accessories and Packaging	Egg separator paper tray 32*21*6cm *1PCS Whole box: 43.1*28.5*34.8 10PCS Power adapter 12V/2A *1PCS Super Category 5 network cable *1PCS

Detailed Photos
Company Profile HUASIFEI is a manufacturer professional in R&D and producing network equipments, products are included Access Point, openWRT wifi router, Vehicle router, outdoor CPE, 3G/4G/5G wifi router. HUASIFEI also is a wifi coverage sloutions provider, provides the solution for hotel, school,hospital,enterprise,vehicle field etc. with 50 people R&D team and around 700 people in factory, 20,000 Square meters production scale, is very skilled at processing OEM/ODM design, also builds the long term cooperation with Mediatek, Broadcom,Qualcomm, capably offering good quality product and fast after-sale service.Till now, HUASIFEI's products have exported to over 30 countries and regions.

Packaging & Shipping
FAQ Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
Q6. How do you ship the goods and how long does it take to arrive? A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional. Q7. What is your payment term? We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you ! Q8. Can you customized logo and packaging? A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
