Turret Slitter Rewinder Machine for Flexible Package Plastic Film, Laminating Film, BOPP Film
| US$85,000.00-100,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
ZTM-T
Application
Machinery&Hardware
Type
High-Speed Slitting Machine
Work Method
Flat Knife Slitting
Structure
Cutting Part
Packaging
Film
Classification
Plastic Film Slitter
Applicable Process
Process Materials
Suitable Substrates
Film Cutting
Packaging Material
Wood
Rewinder
4PCS of Friction Shafts
Automatic Grade
Automatic
Computerized
Yes
Certification
CE
Speed
500m/Min
Unwinder Tension
Auto Loadcell Tension
Rewinder Tension
Servo Motors Control
Transport Package
Export Standard Wooden Packaged
Specification
1300
Trademark
ZHONGTAI
Origin
China
HS Code
8441100000
Production Capacity
10sets
Product Description
ZTM-T1300 Turret Slitter Rewinder Machine for Plastic film, laminated film, aluminum foil rollsFeatures:
ZTM-T Series Automatic Double Turret High Speed Slitting Machine is leading model among domestic slitting machines; especially suits for high-end customers, functions are listed below:
1.Pneumatic cylinder automatically adjust unwinding width
2. Automatically loading by hydraulic system
3. 3 inch and 6 inch shaft-less unwinding
4. Air splicing table
5. Servo drive system
6. Closed-loop auto tension for unwinder
7. Intelligent Laser tube core positioning
8. Automatic razor knife adjusting system (Optional device)
9. Automatic circle knife adjusting system (Optional device)
10. Four sets rewinding pneumatic slip-shafts automatically changeover system
11. Automatically cutting rewinding roll system
12. Rewinding press roller automatically taper control system
13. Finished roll automatically unloading system
14. Rewinding shafts protection system while reel changing
Main parameters:
| Unwind width range | Max1300mm |
| Unwind Paper core diameter | 3" 6" |
| Unwind Max diameter | φ1200mm |
| Rewind Max diameter | φ600mm |
| Mechanical speed | 500m/min |
| Rewind Paper tube diameter | 3" |
| Rewind accuracy | ±0.3mm |
| Rewind motor power | 5.5KW*4 Sets |
| Unwind power | 7.5KW |
| Traction motor power | 5.5KW |
| Air blowing motor power | 2.2KW |
| Tension control | PLC(Siemens) |
| Tension setup range | 3-20kg |
| Material thickness range | 12um-150um |
| Web guide control | E+L Germany |
Optional:
1, Automatic knife moving system for razor knives or circular knives
2, Unwinder brake change to motor with loadcell controlled.
3, 6inch rings for rewinder shafts

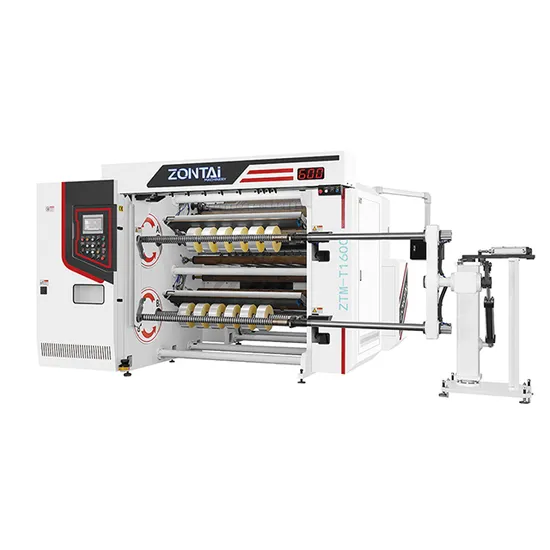

Machine photos:
Our package:
Zontai in exhibitions:
