High Quality Model AC Contactor Cjx2 Single Phase 220V Three Phase 380
| US$50.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CJX2
Main Circuit Rating Voltage
380V
Main Circuit Rating Current
9A-90A
Type
Ac Contactors
Colour
Blue
Model
9511/6511/8011
Voltage
380V/220V/110V
Type of Contactor
1no1nc Type
Transport Package
Paper Box
Specification
129mm+116mm+87mm
Origin
China
Production Capacity
20000PCS/Month
Product Description

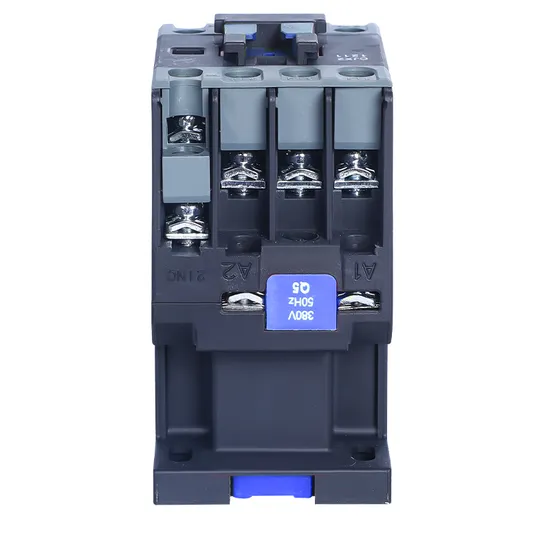

Product Description CJX2-D series AC contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical-interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 947-2, VDE 0660 & BS5452. Detailed Photos| Model | CJX2-D09 | CJX2-D12 | CJX2-D18 | CJX2-D25 | CJX2-D32 | CJX2-D40 | CJX2-D50 | CJX2-D65 | CJX2-D80 | CJX2-D95 | |
| Rated workingcurrent (A) | AC3 | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
| AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 | |
| AC3 capacity of phase 3 squirrel-cage motor AC3 (kw) | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 |
| 380/400V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | |
| 415V | 4 | 5.5 | 9 | 11 | 15 | 22 | 25 | 37 | 45 | 45 | |
| 440V | 4 | 5.5 | 9 | 11 | 15 | 22 | 30 | 37 | 45 | 45 | |
| 550V | 5.5 | 7.5 | 10 | 15 | 18.5 | 22 | 30 | 37 | 55 | 55 | |
| 660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 45 | |
| Rated heat current(A) | 20 | 20 | 32 | 40 | 50 | 60 | 80 | 80 | 125 | 125 | |
| Electrical life | AC4x104 | 20 | 20-15 | 20-7 | 15-7 | 15-7 | 10-7 | 7 | 7-6 | 7-5 | 7-5 |
| AC3x106 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 1.6 | 1.6 | 1.6 | |
| Mechanical | 100000 | ||||||||||
| Number of the contact | 3P+NO or 3P+NC | 3P+NO+NC | |||||||||
| Coil voltage(V) | 24 | 42 | 48 | 110 | 220/230 | 230 | 240 | 380/400 | 400 | 415 | 440 | 500 | 600 |
| 50Hz | B5 | D5 | E5 | F5 | M5 | P5 | U5 | Q5 | V5 | N5 | R5 | S5 | Y5 |
| 60Hz | B6 | D6 | E6 | F6 | M6 | - | U6 | Q6 | - | - | R6 | - | - |
| 50/60Hz | B7 | D7 | E7 | F7 | M7 | P7 | U7 | Q7 | V7 | N7 | R7 | - | - |
