New Dongfeng Tianjin 4X2 Chassis 12.5m3 Food Waste Garbage Truck

Product Description

Product Description
The kitchen waste collection vehicle, more commonly known as a garbage truck, is designed specifically for the collection and transportation of kitchen organic waste. This garbage truck boasts a high degree of automation for the loading and unloading process, ensuring reliable and efficient operation. Its superior sealing performance ensures that there is no leakage of sewage or emission of unpleasant odors, making it an environmentally friendly solution.
With a large loading capacity, the garbage truck is easy to operate and features a closed transportation system that further enhances its eco-friendliness. It can be equipped with standard garbage bins of various sizes, showcasing its versatility and adaptability to different waste management needs.
In essence, the garbage truck is an efficient and clean specialized vehicle, purpose-built for the collection and transportation of kitchen organic waste, offering a sustainable and practical solution for waste management.Specification parameters

Overall dimensions	7800,7600×2500×3350, 3450,3600(mm)	Rated load capacity	9505,8905(Kg)
Gross Vehicle Weight	18000(Kg)	ABS	standard configuration
Curb weight(kg)	8300,8900(Kg)	Front/rear suspension	1400/1700(mm)
Approach/departure angle	17/15(°)	Axle Load	6500/11500
Wheelbase	3800,3950,4200,4500,4700,5000, 5300,5800,5600,5100(mm)	Number of axles	2
Maximum speed	89(km/h)	Number of spring pieces	7/9+6,8/10+8,8/9+6,11/10+8, 3/10+8
Number of tires	6	Tire Size	10.00R20 18PR,275/80R22.5 18PR
Front track	1876,1896,1920,1950,1914,1934, 1980,2000,1815,1860(mm)	Rear track	1820,1860,1800,1840(mm)
volume	9.5-12.5m³	Transmission	Fast 8 speed gearbox
Engine model	D6.7NS6B230	(kw)/(PS) Power (kw)/horsepower (PS)	140/230
Displacement (ML)		Fuel	Disel
Other
With optional cab, optional fuel tank, battery tank, urea tank, gas cylinder left and right installation position, optional box appearance style. Only use 4500,4700 wheelbase. ABS model / manufacturer: 3631010-C2000 / East Cocknorl Commercial Vehicle Braking System (Shiyan) Co., LTD., ABS 8 / East Cocknol Commercial Vehicle Braking System (Shiyan) Co., LTD., JABS / Jiaozuo Borrick Control Technology Co., LTD., 4460046450 / Wiberke Automotive Control System (China) Co., LTD. The side and rear protective devices are Q235, the connection mode is welded, the rear protective section size is 12060mm, and the height from the ground is 450mm. The vehicle is used for the collection and transportation of kitchen garbage. This vehicle has the function of double roof lifting and self-unloading, and the main special device is garbage bin and lifting mechanism.

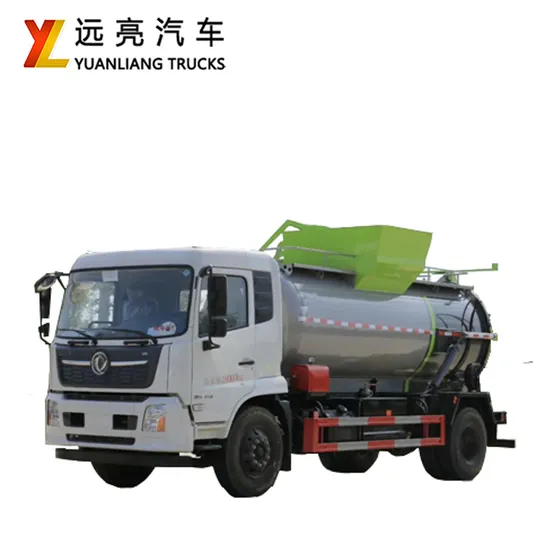

Product Picture
Company Profile
Shiyan Yuanliang Material Trading Co,Ltd. (below is short for Shiyan Yuanliang) is a professionalenterprise founded in 2003, headquartered in Shiyan City, Hubei Province, China. We are mainlyengaged in various special vehicles including R8D, production, sales, we have more than 20 years ofspecial vehicle production and sales experience. Our core business is providing you special vehiclesfor city construction, including municipal vehicles, engineering vehicles, rescue vehicles, largemanned vehicles and other series of products etc.. our products can meet various needs of urbanand rural sanitation cleaning, construction sediment transportation, road rescue and other operationsAll products of Shiyan Yuanliang meet the china national regulations and industry standards, allhave public announcement and quality certification. ln addition, Shiyan Yuanliang has passed theaudit of the lSO9001 quality system certification, ISO14001 environmental system certification anoSO45001 occupational health certification, these certifications prove that we attaches greatimportance to quality, environment and occupational health and safety, we try our best to make surethe compliance, reliability and sustainability can be well met on the products At the same time, thesecertifications also provide customers with additional confidence to prove that we have certainstandards and specifications in terms of management system and product quality, that means you choose us,vou definetly make a good choice
