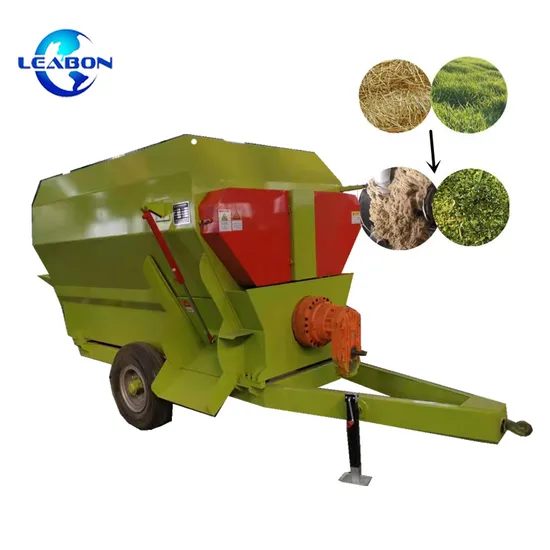

Grass Crushing Feed Mixer Wagon Horizontal with Motor 500kg Electric Diesel Horizontal Tmr Feed Mixer for Dairy Farm

Product Description

Grass Crushing Feed Mixer Wagon Horizontal With Motor 500KG Electric Diesel Horizontal TMR Feed Mixer For Dairy Farm Introduction of TMR Feed Mixer
1. The machine is mainly composed of one or two augers. The spiral auger is divided into left and right rotations. During mixing and stirring, the material is simultaneously stirred and stirred at the middle position of the mixer from each direction of both ends of the box. Each spiral lead on the spiral body is equipped with a moving blade, and the fixed teeth on the center line of the feed mixer are used for cutting work. The various fibrous forages and straws passed through are cut and agitated so as to achieve complete mixing of the crushed and mixed Dietary feeding effect. 2. The bottom of the trough of the machine is made of high-quality alloy steel, suitable for working in harsh environments, safe and reliable work, simple operation, convenient and flexible. The unique cutting blade made of high wear-resistant materials greatly improves the service life of the product.
We have different type of Feed Mixer can be choose.
Raw material and finally products
The raw material could be used for chopping and mixing of all kinds of forage grasses, crop stalks and silage feedstuffs and mixing them with fine feedstuffs.
Size information of feed mixer

Model	LBL-5	LBL-9	LBL-12	LBL-16
Productivity (t/h)	2-3	4-5	6-7	8-10
Power (kw)	15	22	30	22+22
Mixing Shaft	1pc major mixing shaft	1pc major mixing shaft	1pc major mixing shaft	2pc major mixing shaft
Blade Type	Large serrated knife
QTY of Blade (pcs)	5	8	8	16
Weighing System	4 sensors, 1 display
Bottom Plate Thickness (mm)	14	16	16	18
Side Plate Thickness (mm)	5	8	8	8
Dimension (m)	3.1*1.9*2.1	3.9*2.3*2.5	4.6*2.4*2.6	5.8*2.5*2.6
Weight (kg)	1900	2800	3600	5000

Detail of feed mixer Complete product line
