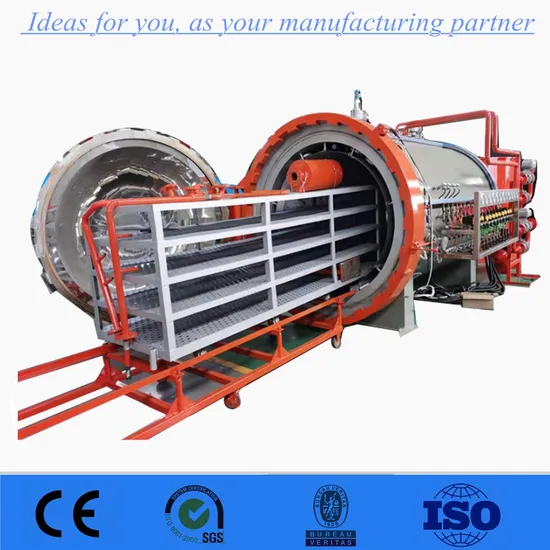

Industrial Box-Type High Pressure Autoclaves Used for Composite Carbon Fiber

Product Description

China High Quality Autoclave for Carbon Fiber Composite
Product Introduction of Carbon Fiber Autoclave
Composite material (also called a composition material or composite) is made from two or more constituent materials with significantly different physical or chemical properties that produce a material with characteristics different from the individual components when combined. Industrial composite autoclave is one of the effective and most applicable techniques for composite production. In the composite manufacturing process, the assembly of a two-sided mold set that forms both surface of the panel is placed into the industrial autoclave which provides both required elevated pressure and elevated temperature
The composite material Carbon Fiber Autoclave mainly used to the composite materials products,space vehicle by high temperature and high pressure.It also can be applied to strengthen the carbon fiber,glass fiber,boron fiber and ect.More over,it also can change the metallic/nonmetallic joint components,such as airplane door,fairing,airborne radar and so on Features of Carbon Fiber Autoclave High quality, safety, easily operation, control and longer serve life are primary design and fabrication considerations. All our industrial autoclaves are integrated as a seamless system by the powerful controlling system with interactive screens and multilevel security Application Field of Carbon Fiber Autoclave
Evertech can provide a key solution according to the specific needs of your process or equipment control for you . Engineers ,electrical engineers as well as service team in Evertech control department are experts in both the full system and the upgrading . When you purchase a Evertech control system meaning that you received a key overall solution .
Carbon Fiber Autoclave System Composition:
Composite Autoclave is able to achieve temperature, pressure, vacuum , cooling, process parameters such as the timing of the cycle , real-time online control system equipment, consisting mainly consists of the following subsystems :
( 1 ) tank : the tank , the tank door mechanism , motor temperature , duct board insulation layer to form a high pressure , high temperature of the tank ;
( 2 ) Safety interlock device: automatic interlock by the pressure , manual interlocking , high pressure alarm device components.
( 3 ) Open the door device: Open the door manual electric dual-use design , the normal power outage shut down the tank door opens, the door is the most advanced way .
( 4 ) sealing device : cans door using silicone inflatable seals , high pressure 400 °. Never worn.
( 5 ) Pressure system : the compressor , tank , pressure control valves, piping, pressure transmitters and pressure gauges and other components transmission and control systems.
( 6 ) Heating system: stainless steel heating pipes , heat fan , duct board , insulation , temperature control system components, the maximum temperature of the heating power to meet the requirements of the cavity and the heating rate requirements.
( 7 ) Temperature cycling system: circulating fan , the air guide plate , the shroud component , accelerate heat transfer and circulation , a uniform temperature field.
( 8 ) Vacuum system: vacuum pumps, piping, vacuum gauge and vacuum valve composed for the package provides composite preform vacuum conditions.
( 9 ) Automatic control system: Siemens PLC control system, pressure , temperature, cooling the whole process parameters such as high-precision control and real-time recording. High productive units to lab autoclaves.Integrated system design with over 20 years of industrial experiences.Professional modular manufacturing.Computer control system specifically for composite autoclave use.Automatic control of over pressure or temperature protection, door safety interlock.High quality, energy saving.Custom designs to suit your needs.Customized installation to satisfy your demands.Safe operation, over pressure and temperature protection, door safe interlock.Advanced composite curing and bonding process.Reliable and efficient operation.Easy to operate, longer service life.
Carbon Fiber Autoclave for aeronautics industry with high quality (also called industrial autoclave for carbon fiber, composite autoclave) is the pressure vessel specially designed and manufactured to fabricate composite material, carbon fiber autoclave is one of the our hot sale industrial autoclave products.

Working diameter	600mm ~ 5000mm
Working length	800mm ~ 20000mm
Heating method	Electric heating air
Ramp temp max	0-3.5ºC/min continuously adjustable
Cooling method	Water cooling
Cooling rate	Above 80ºC,0-3.5ºC/min continuously adjustable ;below 80ºC,0-2ºCcontinuously adjustable
Temperature	100ºC~500ºC
Temp uniformity	≤ 2ºC
Temp control points	2~40(optional)
Pressure	0.1-4.0MPa
Pressure uniformity	≤ 0.01MPa
Vacuumize line	2~40 vacuum lines
Thermo sensors	2~40 thermo sensors
Vacuum degree	-0.098MPa
Control method	Industrial computer / PLC control
Trolley inside and outside the tank	One internal loading vehicle and one external platform trolley
Certificate	GB150 / ASME
Vacuum/air source/cooling water source	Optional

Carbon Fiber Autoclave Packing and Shipping
Carbon Fiber Autoclave Company Introduction Qingdao Evertech Industry Co., Ltd. is a professional pressure vessel designer, manufacturer and exporter. We have manufacturing licenses for ASME U, ASME U2,NB,PED, D1, D2 and A2 pressure vessels. Composed of more than 20 senior experts and professional engineers, the research and development team, with more than 20 years of professional experience, is committed to product design, development and program optimization, and can provide high-quality solutions according to users' requirements in different operating conditions. Company has cover an area of 70000 manufacturing base and 15000 modern manufacturing plants, can provide customers both at home and abroad with composite autoclave, high pressure autoclave, high pressure reactor, AAC autoclave, deaerator, pouring tank pressure vessel products such as more than 800 sets, pressure vessel head more than 20000 sets high quality products and services, won widespread praise.
Carbon Fiber Autoclave FAQ
1.What are the payment terms?
TT,L/C and trade assurance are acceptable,TT will be more appreciated,30% deposit before production,70% balance before shipment.
2.What is the delivery time?
At least 1 month after the deposit recipit,depend on how many machines included in the line.
3.How to pack the machine?
Standard packaging
4.How to install after the machines arriving destination?
Our engineer will go to customers site if you need,but need to pay installation fee accord with the contract.
5.What's the capacity you can do?
We always produce depend on customers' requirement. Welcome to send me email any time.
